Chapter 4 MDP-621/641/640
Installation Operation manual  
80
(3 1/8)
168
(6 5/8)
Knurled fixing bolt
Unit in mm (inch)
Mounting bracket
M5 screw, 4 pcs
Fixing screws
Display

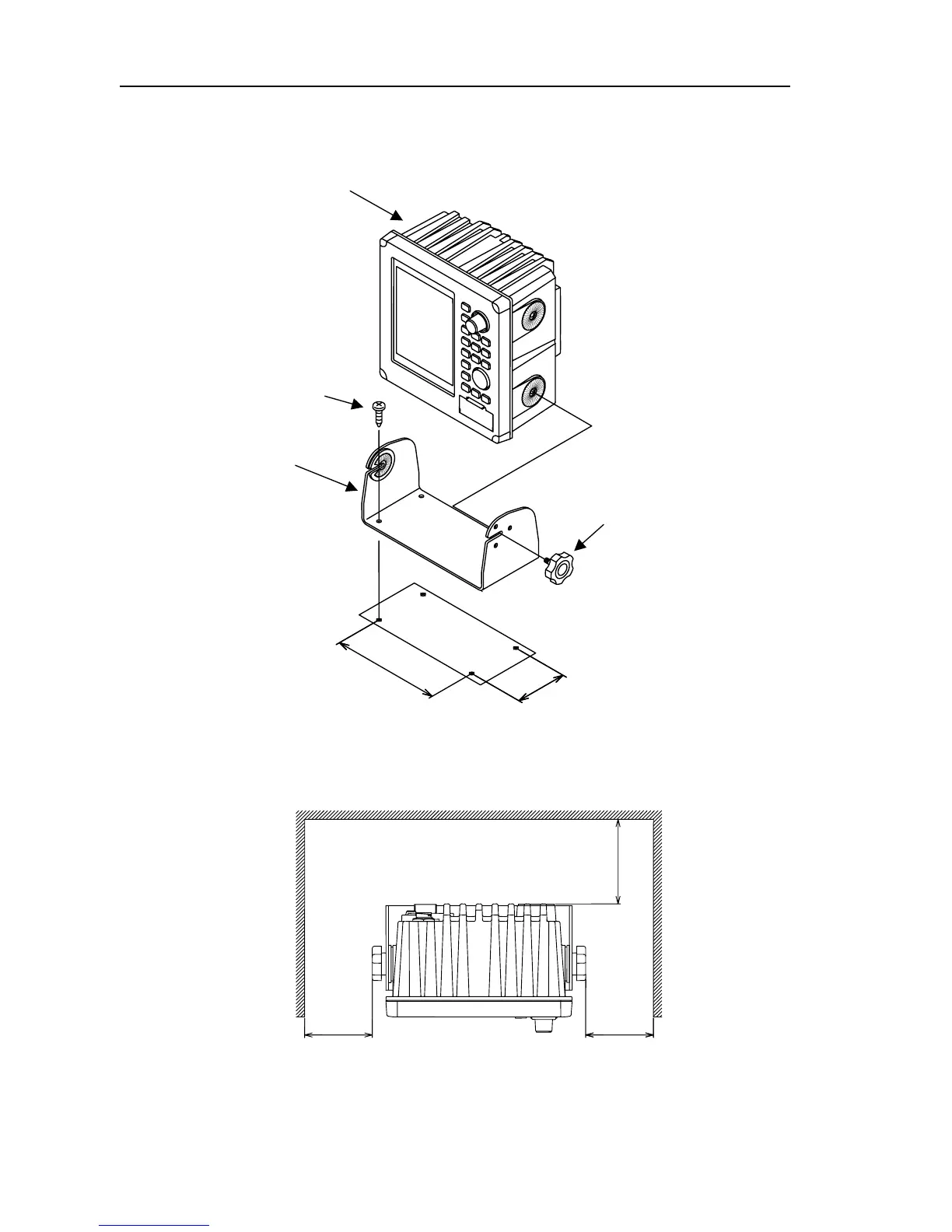

Figure 4.1 Fitting detail of display
100
(3 15/16)
(3 1/8)
80
80
(3 1/8)
Figure 4.2 Service space required for display
4-2 0093161022-06
