MDP-621/641/640 Chapter 4
Operation manual Installation

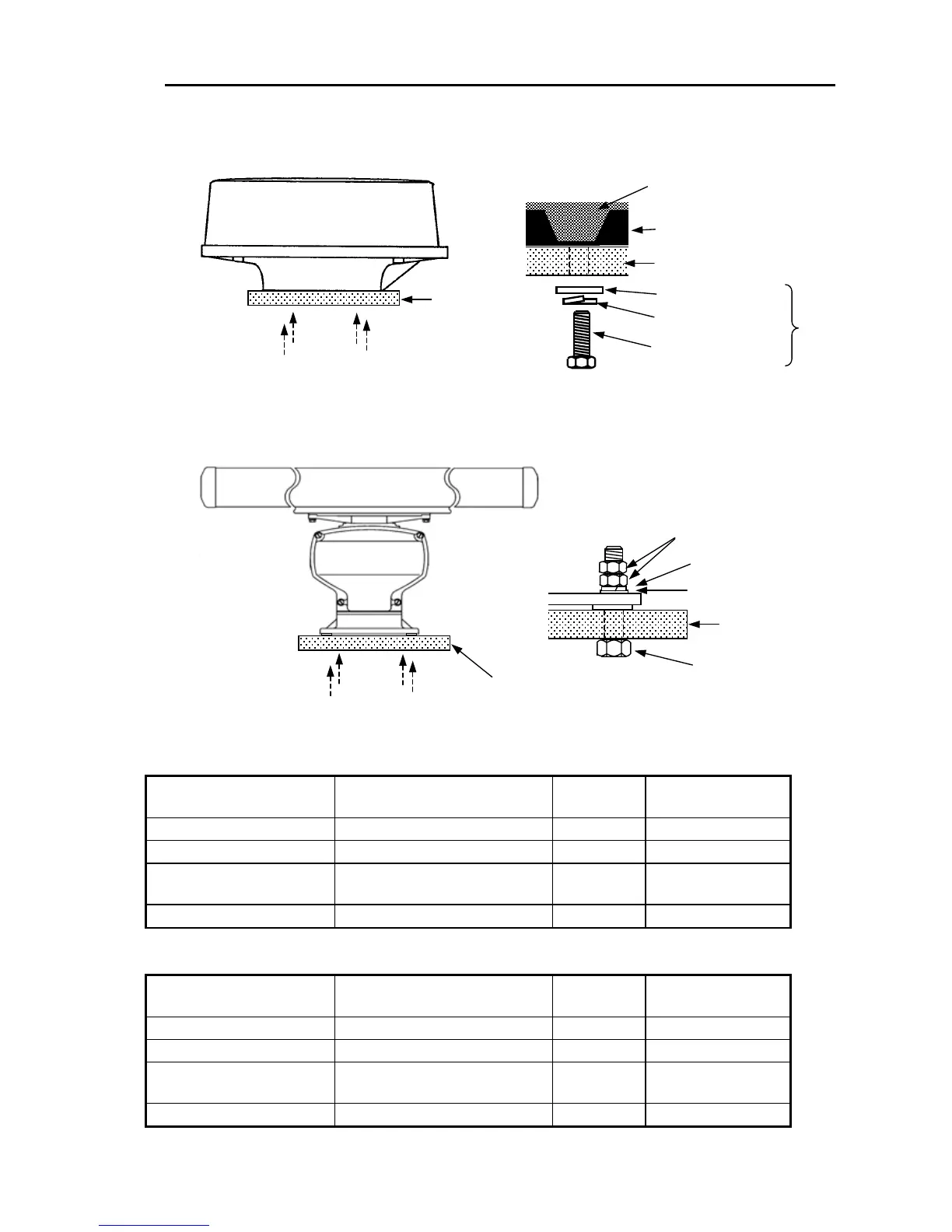

(1) For Radome antenna
Fix the antenna with four screws
Platform
Platform
Radome (bottom)
Chassis
Washer
Spring washer
M10 Hexagonal bol
NOTE
NOTE: Included in Installation
Material Kit
(2) For Open antenna
Fix the antenna with four screws
Platform
Hexagonal bolt
Spring washer
Washer
Double nuts
Platform
Table 4. 1 Bolts for Mounting Scanner Unit (Radome scanner)
Thickness of
Mount base
Bolts necessary to
Fix radome scanner
Material Remarks
1-4mm(0.04-0.16 in.)
M10 × 15 (1.5mm pitch)
Stainless
4-9mm(0.16-0.35 in.)
M10 × 20 (1.5mm pitch)
Stainless
9-14mm(0.35-0.55 in.)
M10 × 25 (1.5mm pitch)
Stainless Included with
radar
14-19mm(0.55-0.75 in.)
M10 × 30 (1.5mm pitch)
Stainless
Table 4. 2 Bolts for Mounting Scanner Unit (Open scanner)
Thickness of
Mount base
Bolts necessary to
Fix radome scanner
Material Remarks
1-4mm(0.04-0.16 in.)
M12 × 45 (1.5mm pitch)
Stainless
4-9mm(0.16-0.35 in.)
M12 × 50 (1.5mm pitch)
Stainless
9-14mm(0.35-0.55 in.)
M12 × 55 (1.5mm pitch)
Stainless Included with
radar
14-19mm(0.55-0.75 in.)
M12 × 60 (1.5mm pitch)
Stainless
0093161022-06 4-7
