MDP-621/641/640 Chapter 4
Operation manual Installation
Lay the braid under the fixing
plate short as possible.
When the braid was
covered with heat-shrink
tube, remove any of it.
MAX 5 mm
Fixing bolt
Cable shielding terminal
Washer
Fixing plate
Scanner unit
Inter-connection cable
Sealing rubber
Cable inlet
Heading switch
connector (X2)
Motor connecto
r
(X1)
Inter-connection cable
This part enlarged
Clamp
Fixing bolt
Fixing plate
TR unit fixing bolts

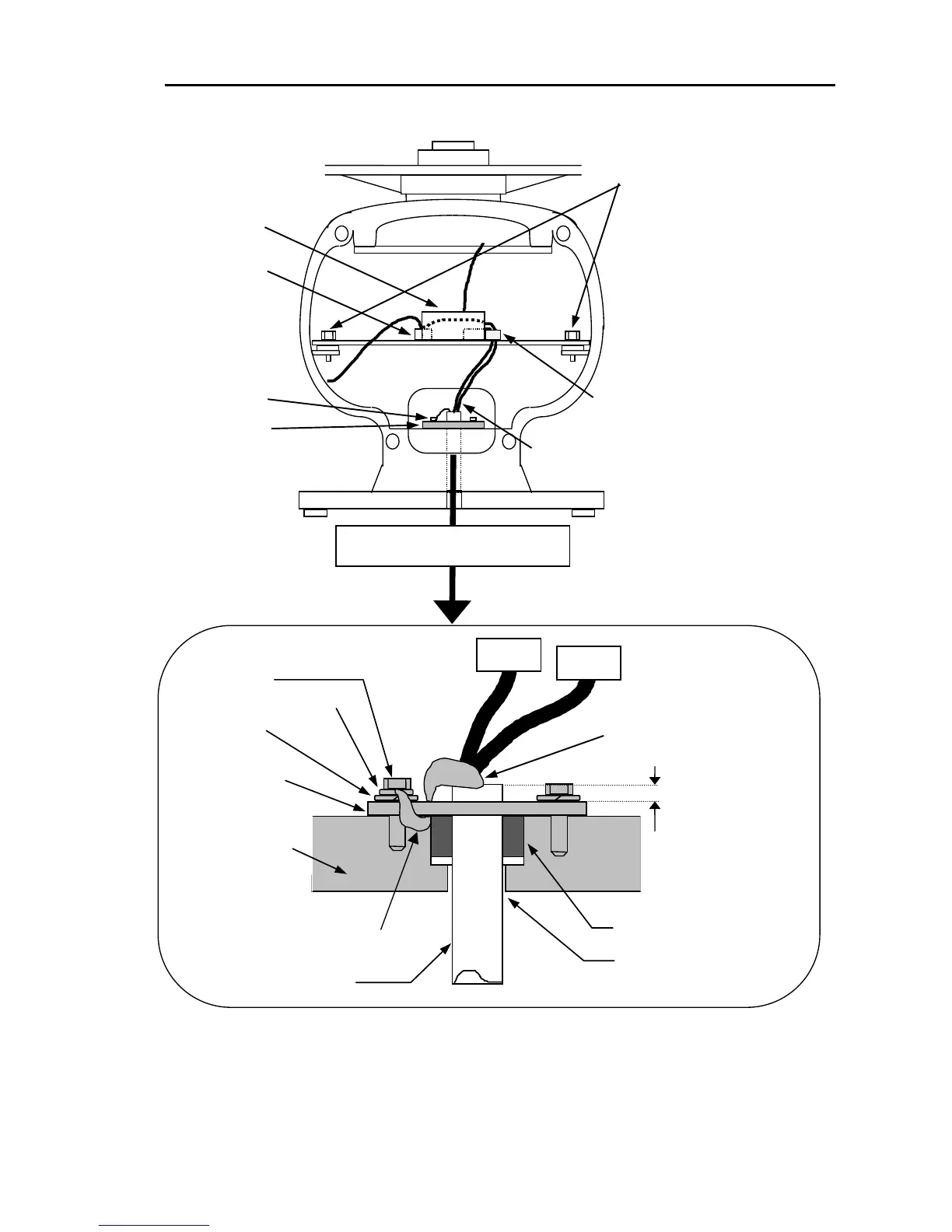

Figure 4. 13 Fitting interconnecting cable
0093161022-06 4-13
