Krone Big Pack 890 - Connecting the Terminal (on Tractors with Integrated ISOBUS System)

KRONE ISOBUS-Terminal CCI 100
140
Pos: 28.11 /BA/Inf o-Center/CC-ISOBUS- Terminal/CCI-Bi G Pack/Terminal anschließ en(vorgerüsteteter ISO Schlepper) @ 43\mod_1 274879690796_78.doc @ 387874
9.2.1 Connecting the terminal (on tractors with integrated ISOBUS system)
6
5
1
2
3
4
CC00014
1
4
7
3
6
9
7
9
10
11
13
12
5
14
8

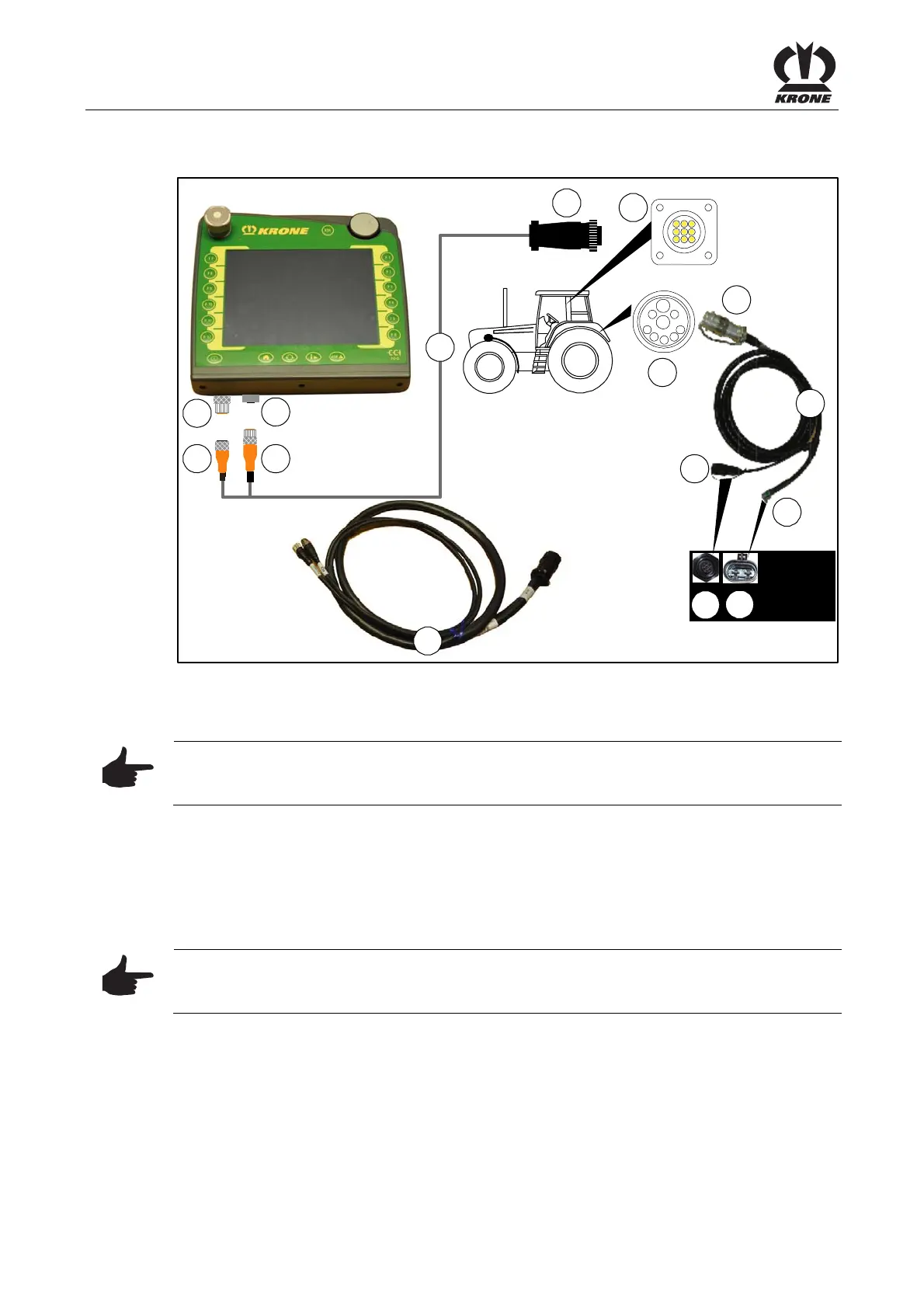

Fig. 86
Connection terminal to tractor
Note
The connection of terminal to tractor takes place via a special cable set (5) which can be
ordered by stating the KRONE article no. 20 081 223 0.
• Connect plug (2) of cable set (5) with socket (1) (CAN1-IN) of the terminal
• Connect plug (4) of cable set (5) with socket (3) (CAN1-OUT) of the terminal
• Connect ISO-plug (6) (9-pole) of cable set (5) with ISO-socket (7) (9-pole) located in the
tractor cabin
Connection tractor to machine
Note
The connection of tractor to machine takes place via a provided cable set (14) (article no.
20 080 384 0).
• Connect ISO-plug (9) (9-pole) of cable set (14) with outer ISO-socket (8) (9-pole) on
tractor side
• Connect plug (10) (7-pole) of cable set (14) with socket (11) (7-pole) of the machine
• Connect plug (12) (2-pole) of cable set (14) with socket (13) (2-pole) of the machine
