12.1 Tying unit
Pos: 38.5 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Bindeeinri chtung allgemein @ 20\ mod_1239004200035_78. doc @ 225656
The BiG PACK baler is equipped with twine boxes on both sides of the machine. Each is
capable of holding 16 rolls of tying twine.
To ensure sufficient tying safety, you must be careful only to use synthetic twine that has a
running length of 110-130 m/kg.
Pos: 38.6 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Hinweis Ver wenden Sie nur KRONE Origina l Bindegarn @ 32\mod_125308395 5561_78.doc @ 308448
Note
Only use original KRONE twine
Pos: 38.7 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Bindegarn ein legen @ 20\mod_123900972 0863_78.doc @ 226898
12.1.1 Inserting the twine
Insertion of the twine is identical for the right hand and left hand sides of the baler. The
procedure of insertion of the twines described in the following does apply for both sides of the
baler.
The preparations and insertion of the twine must be accomplished with machine at standstill:
• Switch off tractor P.T.O. shaft
• Switch off tractor engine
• Fix the flywheel in place mechanically
• Secure the knotter shaft by moving the safety lever (1)
Pos: 38.8 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Knoterwel le sichern @ 20\mod_123900 9186972_78.doc @ 226844
Secure knotter shaft
1
2
2
1
a
b
a
b
BP380-7-044
Fig. 151

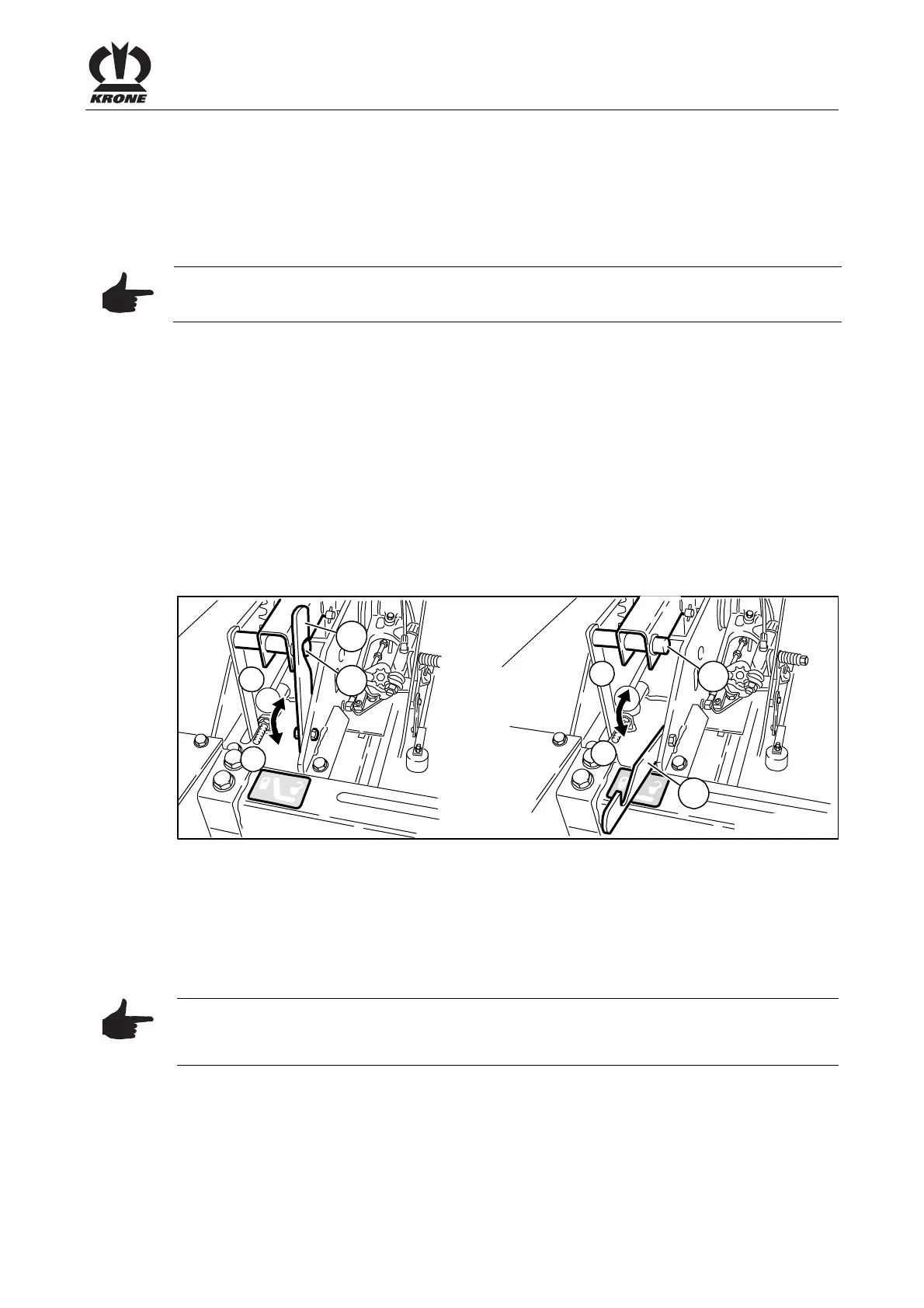

Each time before you set new tying twine in place, the knotter shaft must be secured so that the
needle yoke cannot be put in motion.
To do this:
• To do this, move the safety lever (1) from position (a) to position (b) and set it down on
the journal (2)
Pos: 38.9 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Hinweis Abs tellen des Bindegarns in di e Garnkästen @ 20\mod_123 9008751331_78.doc @ 226534
Note
When placing the tying twine in the twine box, make certain that the labeling on the rolls can be
read. Make certain the side marked "Up" is facing up.
