Settings
261
Pos: 38.116.1 /Übersc hriften/Überschr iften 3/A-E/Einste llung Multi-Bale @ 24\mod_1 241443710211_78.doc @ 244999
12.14.1 Setting the MultiBale
Pos: 38.116.2 /BA/Ei nstellungen/Großpac kenpresse/MutiBal e/Position zweite Nadelschwinge / Anschla g Bild @ 24\mod_1241443960165 _78.doc @ 245076

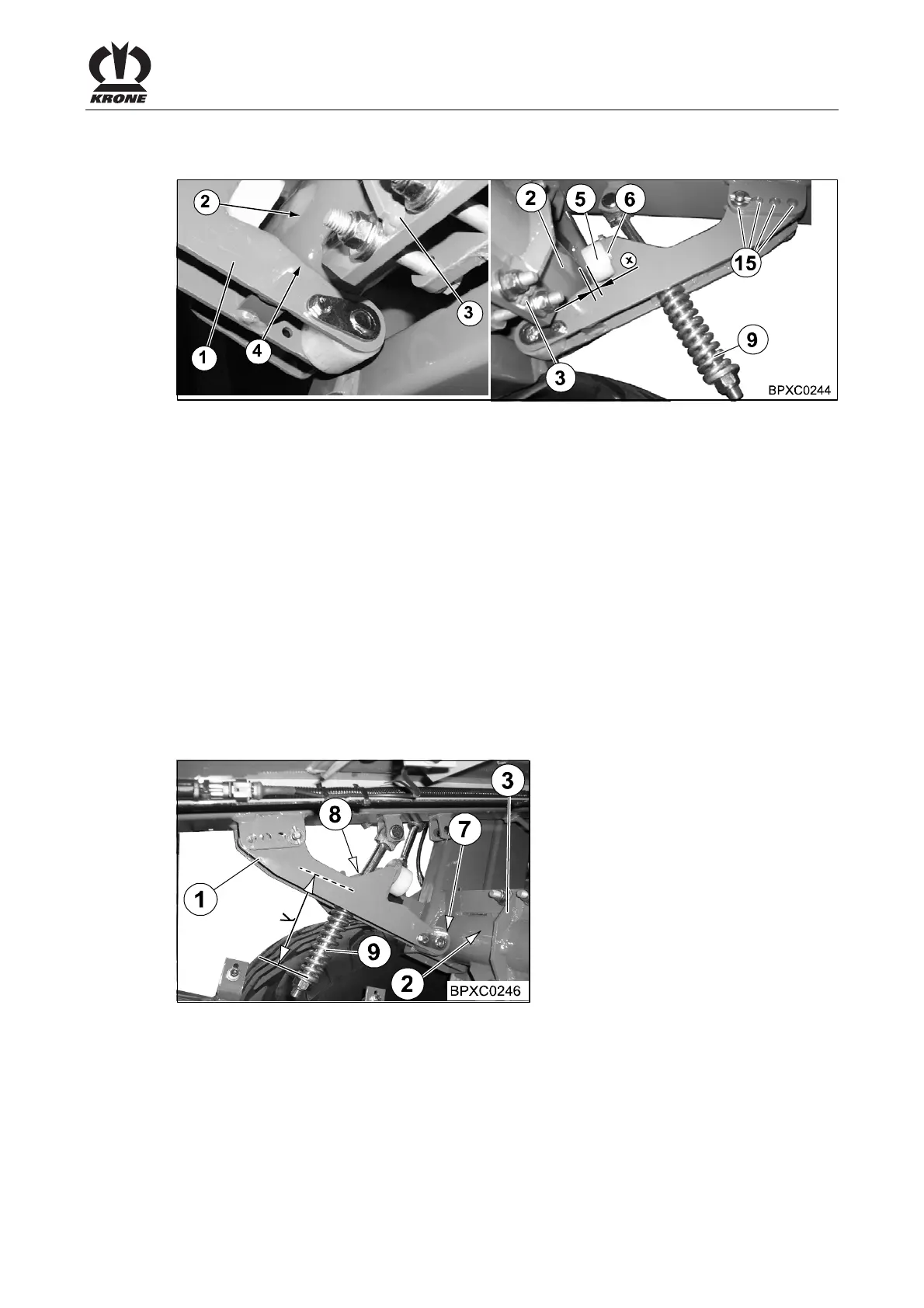

Fig. 200
Pos: 38.116.3 /BA/Ei nstellungen/Großpac kenpresse/MutiBal e/Einstellung Posi tion zweite Nadelsch winge @ 24\mod_124144436929 0_78.doc @ 245100
12.14.2 Setting the position of the second needle yoke
The tube (2) of the needle yoke (3) has to be located in the trough (4). If this is not the case,
please proceed as follows:
• Check the knotter needle setting relative to the knotter, and adjust, if and when necessary
(refer to chapter Settings "Needle setting").
• Adjust the needle yoke brake (1) in longitudinal position in the oblong hole (15) so that
the tube (2) of the needle yoke (3) is in the end setting of the tie immediately after the
trough (4) of the needle yoke brake (1)
Pos: 38.116.4 /BA/Ei nstellungen/Großpac kenpresse/MutiBal e/Einstellung Ansc hlag @ 24\mod_124144527 1930_78.doc @ 245124
12.14.3 Setting the stop
• In this setting the distance between the tube (2) of the needle yoke (3) and the
obstruction should be (5) x = 8 - 15 mm. Adjust the stop (5) if necessary using washers
(6)
Pos: 38.116.5 /BA/Ei nstellungen/Großpac kenpresse/MutiBal e/Einstellung Höhe der Nadelschwingenbre mse @ 24\mod_12414982306 17_78.doc @ 245177
12.14.4 Setting the height of the needle yoke brake
Fig. 201
• During the infeed of the needle yoke (3), the roller (7) of the needle yoke brake (1) has to
make contact with the lower third of the tube (2). The height of the needle yoke brake (1)
can be changed by placing washers under the clamping screw stop (8).
• Pre-tension the spring (9) of the needle yoke brake (1) to a dimension y = 115 - 120 mm
