Krone Big Pack 890 - Cutting System Drive Gear

Maintenance
286
Pos: 42.41.18.1 /Über schriften/Übersc hriften 2/P-T/Schnei dwerksantriebsge triebe @ 24\mod_124159507 2471_78.doc @ 246450
13.21 Cutting system drive gear
Pos: 42.41.18.2 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Für Big P ack XC-Ausführung @ 24\mod_12415 96464409_78.doc @ 246572
For BiG PACK XC version
Pos: 42.41.18.3 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Schneidw erksantriebsgetri ebe Anbringungsort @ 24\ mod_124159512009 6_78.doc @ 246474
The cutting system is located on the right hand machine side. It consists of the upper angular
gear (4a) and the lower transfer gearbox (4b) (Pick-up/cutting system).
Pos: 42.41.18.4 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Bild_Pic k-up Schneidwerksantr iebsgetriebe @ 24\ mod_1241595390534_78. doc @ 246503

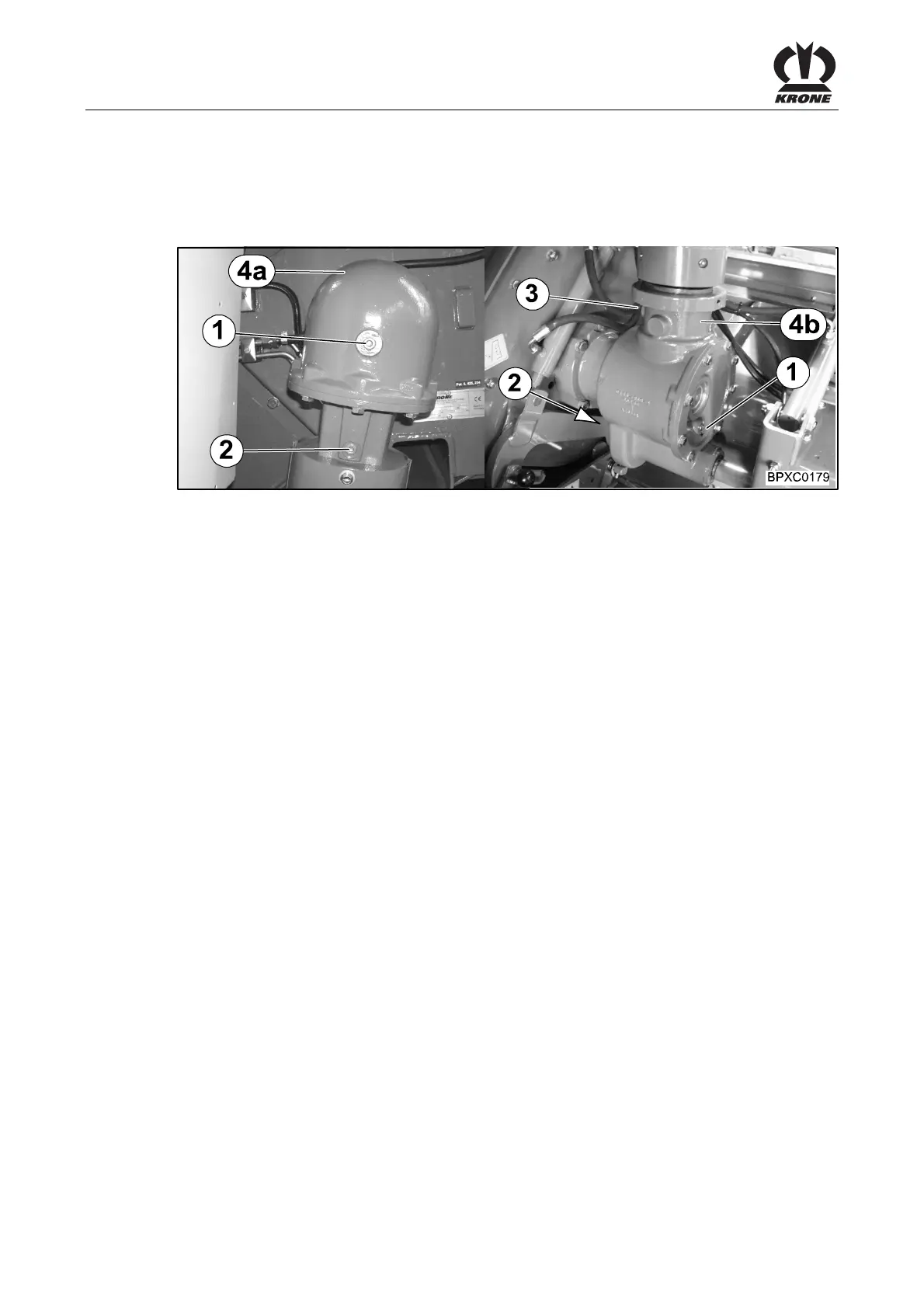

Fig. 216
Pos: 42.41.18.5 /BA/ Wartung/Ölkontrolle_W echsel/Ölkontro lle SAE 90 @ 0\mod_1197008973815_7 8.doc @ 15649
Oil level check:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Unscrew the inspection screw (1)
• Oil level up to bore hole (1)
• If necessary, top up the oil (SAE 90)
• Screw the check screw (1) back in.
Pos: 42.41.18.6 /BA/ Wartung/Ölkontrol le_Wechsel/Großpacke npresse/Wi nkelgetriebe @ 24\mod_12415961 35128_78.doc @ 246524
Angular gear
Pos: 42.41.18.7 /BA/ Wartung/Ölkontrol le_Wechsel/Ölwechse l Version2 @ 0\mod_119701 6258486_78.doc @ 15884
Oil change:
• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
• Screw out the screw plug (2).
• Collect the used oil in a suitable drip pan
• Screw in the screw plug (2)
• Fill oil (1) (oil level up to hole (1))
