Krone Big Pack 890 - Actuator Test; Menu 4-4 Manual Actuator Test

KRONE operation terminal Gamma
124
Pos: 26.32.35 /Übersc hriften/Überschr iften 3/A-E/Aktort est @ 0\mod_120091699079 1_78.doc @ 47833
8.13.2 Actuator test
Pos: 26.32.36 /BA/Si cherheit/Gefahrenhin weise/Aktortest @ 47\ mod_1285134152781_78. doc @ 455729
Danger! - Unexpected actions on the machine.
Effect: Danger to life or serious injuries.
• Only persons familiar with the machine are permitted to perform the actuator test
• The person performing the test must know which machine parts are moved by actuating
the actuators. If necessary, secure the actuated machine components against
unintentional lowering
• The actuator test must only be performed from a safe position outside the area that is
affected by machine parts moved by the actuators
• Make certain there are no persons, animals or objects in the danger zone
Pos: 26.32.37 /Übersc hriften/Überschr iften 3/K-O/Menü 4-4 Ak tortest Hand @ 44\mod_127563 7010843_78.doc @ 393380
8.13.3 Menu 4-4 „Manual actuator test“
Pos: 26.32.38 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Menü 4-4 Aktortest Hand Einf ührungstext @ 44\mod_ 1275637366437_78.doc @ 393405
The actuator test is used to test the actuators installed on the machine. An actuator can only be
tested if power is flowing through it. In the manual actuator test the actuator must therefore be
controlled manually for a short time to be able to determine if there are any errors in the
actuator system.
Pos: 26.32.39 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Menü 4-4 Aktortest Hand Acht ung @ 44\mod_1275637929203 _78.doc @ 393455
CAUTION! - Unexpected actions on the machine.
The P.T.O. shaft must not be turning during the actuator test. The tractor hydraulics must be
deactivated.
Pos: 26.32.40 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Menü 4-4 Aktortest Bild @ 47\ mod_1284963110015 _78.doc @ 455001

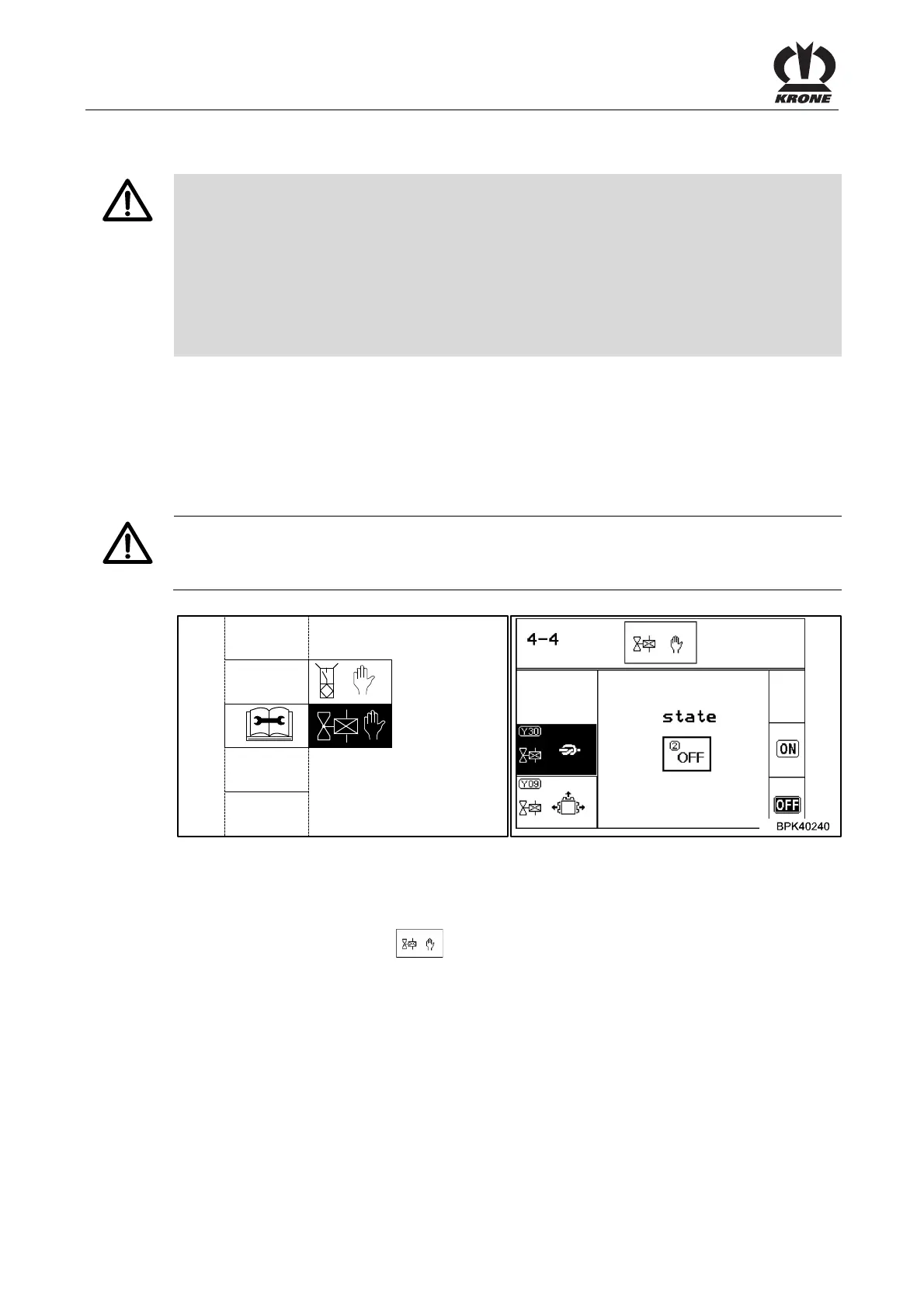

BPK40230_1
4-4
Fig. 76
Pos: 26.32.41 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Menü 4-4 Aktortest Hand Men ü aufrufen / Aktor wählen @ 44\ mod_1275640792796_78. doc @ 393505
Calling the menu
Main menu 4 "Service" is called.
• You can select menu 4-4
with the rotary potentiometer. The symbol is shown in
reverse colours
• Press the rotary potentiometer
The display shows menu 4-4 "Manual actuator test".
Selecting the actuator
• Select the actuator with the rotary potentiometer
The selected actuator is displayed inversely.
