Krone Big Pack 890 - Roller Chute Hydraulically Activated; Bale Chute in Transport Position (Optional)

Driving and Transport
70
Pos: 22.7 /Überschri ften/Überschri ften 3/F-J/Hydrauli sch betätigte Rollenschur re @ 25\mod_1244092719 994_78.doc @ 254690
7.1.2 Roller chute hydraulically activated
Pos: 22.8 /BA/Fahren und Transport/Großpac kenpresse/Hydraulisc h betätigte Rollensc hurre Bild 890_1270_1 290 @ 25\mod_1244092870 963_78.doc @ 254714

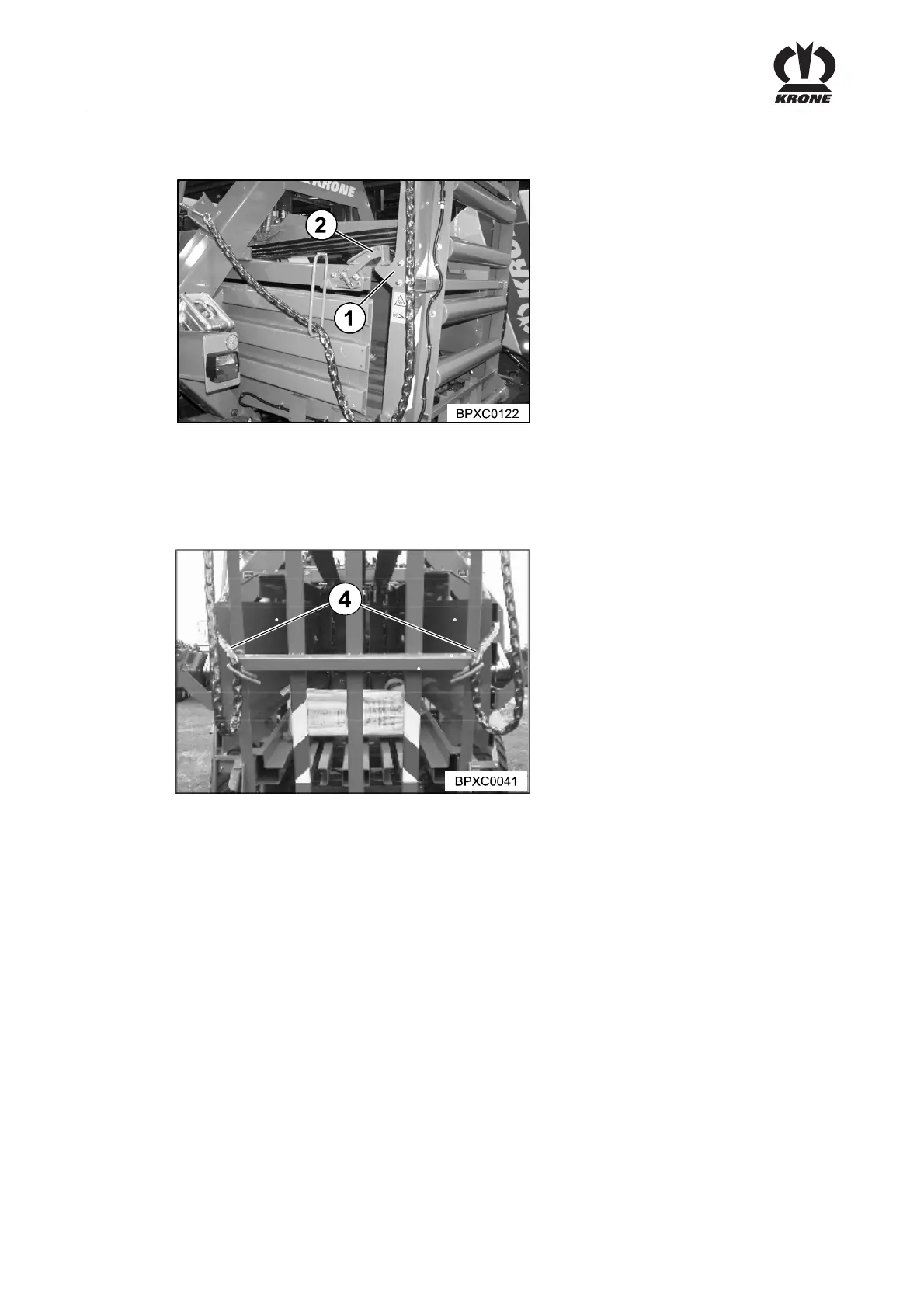

Fig. 28
Pos: 22.9 /BA/Fahren und Transport/Großpac kenpresse/Hydraulisc h betätigte Rollensc hurre Text @ 17\mod_1236588 072917_78.doc @ 205441
• Fold in the hydraulically activated roller chute (1) hydraulically
After it is folded in, make certain that the mechanical lock (2) has snapped into place.
Pos: 22.10 /BA/Fahren und Transport/Großpac kenpresse/Packensc hurre in Transportstel lung (optional) @ 17\mo d_1236588178980_78.d oc @ 205465
7.1.3 Bale chute in transport position (optional)
Fig. 29
• To bring the bale chute into the transport position, the unfolded chute must be folded up
and secured with the retaining chains (4)
