Krone Big Pack 890 - Install the PTO Shaft

Start-up
60
Pos: 20.8 /Überschri ften/Überschri ften 3/F-J/Gelenkwelle montieren @ 11\mod_122335886 3095_78.doc @ 145571
6.1.1 Install the PTO shaft
Pos: 20.9 /BA/Sic herheit/Gelenkwelle/S ich drehende Gelenkwel le_4 @ 17\mod_123625854 5347_78.doc @ 204209
DANGER! - Rotating universal shaft!
Effect: Danger to life or serious injuries
• Before pushing the universal shaft onto the P.T.O. shaft of the tractor, disengage the
P.T.O. shaft, turn off the engine and pull out the ignition key. Apply the flywheel brake
• Secure the tractor and machine against unintentional rolling
Pos: 20.10 /BA/Er stinbetriebnahme/Gelen kwelle/Traktor wechsel Gelenkwellen länge beachten @ 6\mod_121 4996938591_78.doc @ 9774 2
Caution! - Changing the tractor
Effect: Damage to the machine
When using the machine for the first time and whenever changing the tractor Check PTO shaft
for the correct length. If the length of the PTO shaft does not match the tractor, always observe
the chapter entitled "Adjusting the length of the PTO shaft".
Pos: 20.11 /BA/Sic herheit/Gelenkwelle/A chtung Schwenkberei ch/Freiraum überpr üfen @ 9\mod_122053630893 0_78.doc @ 126898
Caution! - Swivel range of the PTO shaft
Effect: Damage to the tractor or the machine
• Check the swivel range and clearance of the PTO shaft!
Pos: 20.12 /BA/Inbetr iebnahme/Großpac kenpresse/Anbau Gelenk welle @ 17\mod_123625970 8316_78.doc @ 204258

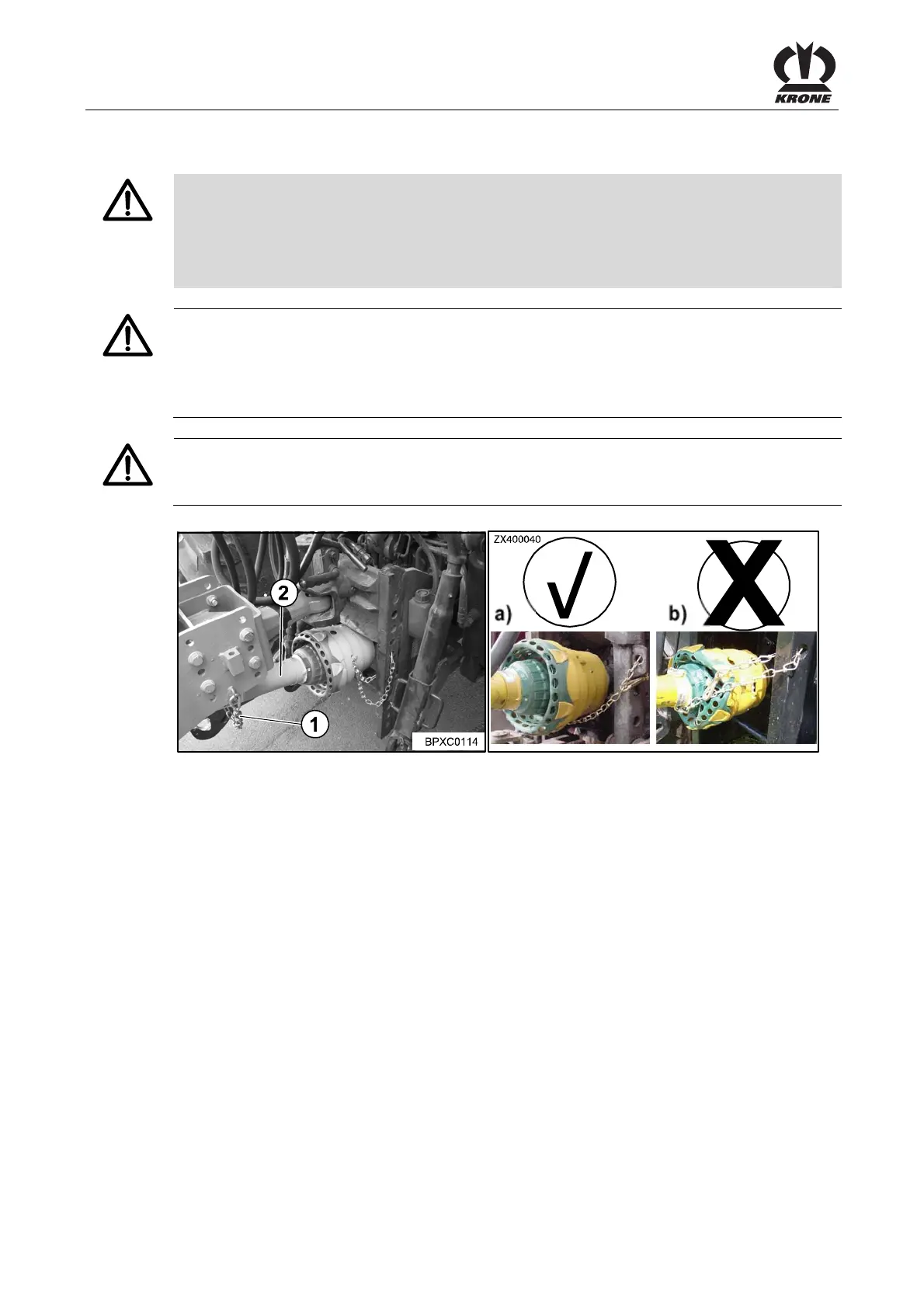

Fig. 19
Tractor side:
• Take the universal shaft (2) out from the retaining chain (1)
• With the engine turned off and the ignition key withdrawn, push the universal shaft onto
the tractor P.T.O. and secure it
• Secure the universal shaft guard against turning by hooking in the locking chain
Make certain the chain connection is ideal:
• The chain guide should be as close as possible to perpendicular to the universal shaft
(refer to fig. (a))
• The chain guide should never be diagonally connected via the guard cone (refer to fig.
(b))
