12.10 Setting packer to baling ram
Note
The packers only need to be set when the packer gearbox or the chain coupling connection
chains have been loosened.
Pos: 38.105.13 /BA/Ei nstellungen/Großpac kenpresse/Pressko lbeneinstellun g/Einrastung der Reib kupplung überprüfen @ 24\ mod_1241424692899_7 8.doc @ 243917
Fig. 187

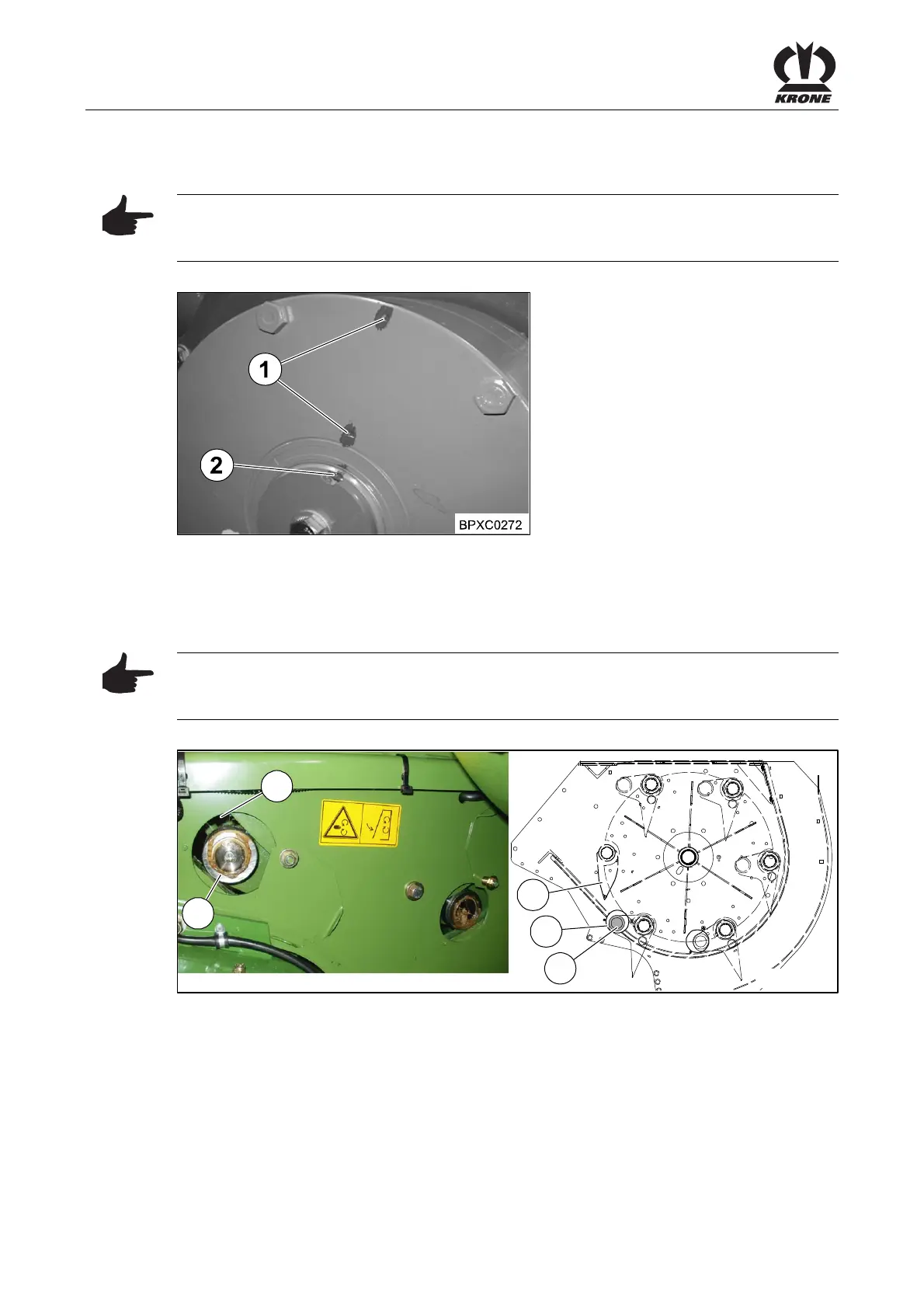

• The packer coupling has correctly engaged when both outer marks (1) on the packer
coupling correspond to the mark (2) on the cone of the packer coupling
Pos: 38.105.14 /Übersc hriften/Übersc hriften 3/A-E/Ei nstellung Raffer @ 24\mod_124 1425604165_78.doc @ 243941
12.10.1 Setting the packer
Pos: 38.105.15 /BA/E instellungen/Großpac kenpresse/Pr esskolbeneinstellun g/Hinweis VFS_Syste m muss sich in Nullstel lung befinden @ 24\mod_124143 0475868_78.doc @ 244219
Note
Make certain that the variable filling system (VFS) system is in zero position (refer to chapter
Variable filling system (VFS) "Setting the zero position”).
Pos: 38.105.16 /BA/Ei nstellungen/Großpac kenpresse/Pressko lbeneinstellun g/Raffer einstelle n Big Pack 890/1290/1290 HDP Bild @ 47\mod_1284646954 843_78.doc @ 454634
BPXC0273_1
9
9
1
10
10
Fig. 188
Pos: 38.105.17 /BA/Ei nstellungen/Großpac kenpresse/Pressko lbeneinstellun g/Einstellung Raff er BigPack 890/1290/1290 HDP @ 47\mod_1284646405859 _78.doc @ 454608
Turn the packer manually in the working direction by turning the flywheel until the large packer
strip roller (9) running in front of the feeder strip (1) is located central in the viewing window (10).
