12.8 Knotter
Pos: 38.97 /BA/Sic herheit/Gefahrenhin weise/Großpackenpre sse/GEFAHR! – War tungs-, Einstell- und Repar aturarbeiten am Knoter @ 24\mod_1241081243490_ 78.doc @ 242756
DANGER! - Maintenance, setting and repair work on the knotter
Effect: Danger to life, serious injuries
• Switch off the P.T.O. shaft
• Switch off the tractor engine and remove the ignition key
• Wait until all moving components stop
• Apply the flywheel brake
• Engage parking brake
• Place wheel chocks under the wheels to block the machine
• Secure knotter shaft against unintentional release of the tying with the safety lever
Pos: 38.98 /BA/Einste llungen/Großpackenpr esse/Knoter/Bi ndevorgang sperren @ 24\mod_1241083147115_7 8.doc @ 242926
12.8.1 Locking the tying process
1
2
2
1
a
b
a
b
BP380-7-044

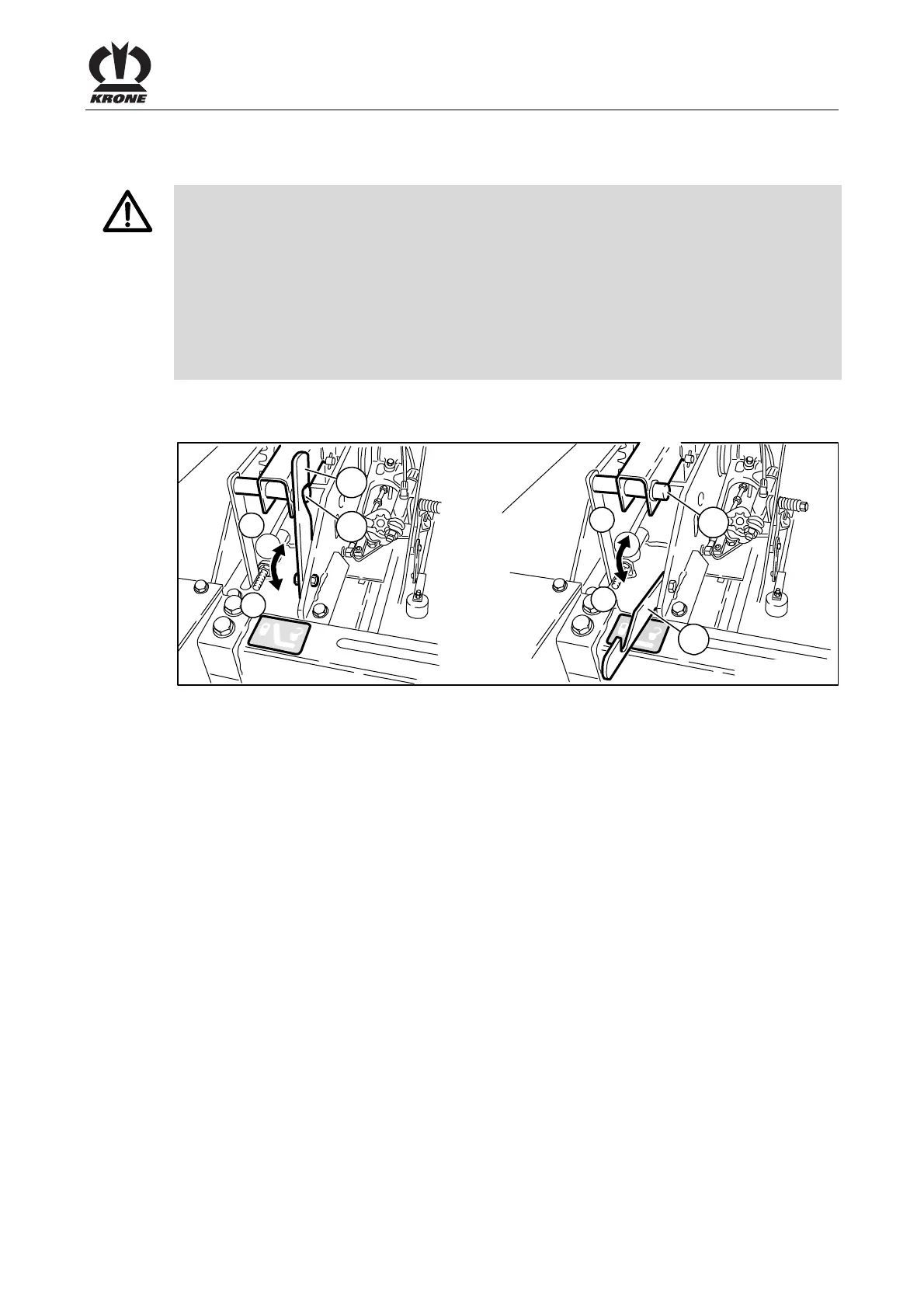

Fig. 173
The knotter shaft must be secured during maintenance, setting and repair works on the knotter
in order that the tying process cannot be released unintentionally.
To do this:
• To do this, move the safety lever (1) from position (a) to position (b) and set it down on
the journal (2)
