12.8.7 Double knotter
Pos: 38.103.2 /BA/Ei nstellungen/Großpac kenpresse/Knoter/ Doppelknoter/Knüpf erhaken Doppelkno ter Bild @ 24\mod_12410998 65006_78.doc @ 243331
12.8.8 Knotter hook (double knotter)

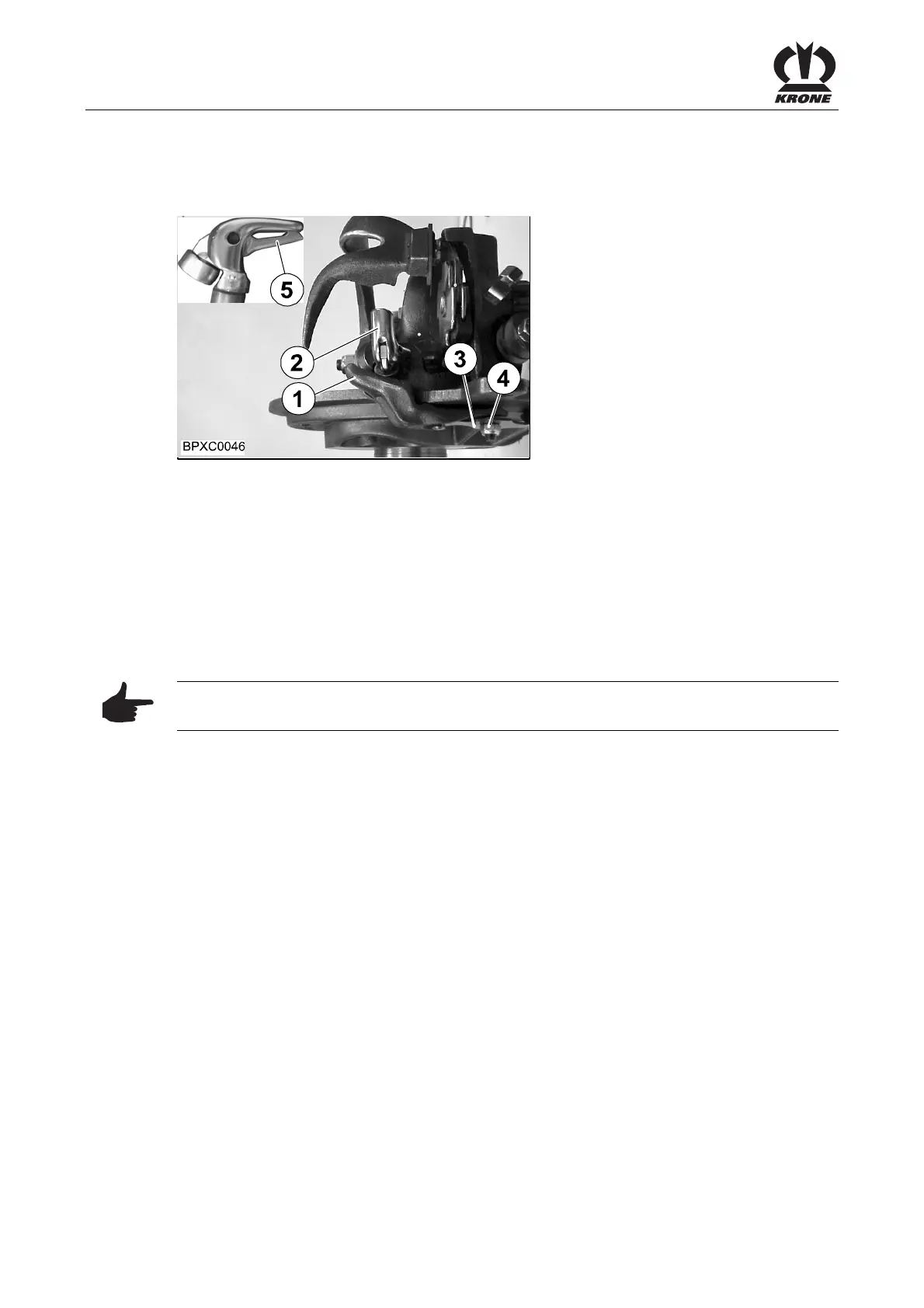

Fig. 179
Pos: 38.103.3 /BA/Ei nstellungen/Großpac kenpresse/Knoter/ Knüpferhaken Text Do ppelknoter / Einf achknoter Raspe @ 47\mod_128504 6930718_78.doc @ 455408
The knotter tongue (5) of the knotter hook (2) is tensioned by the leaf spring (3) on the closer
(1).
• If the clamping effect on the knotter tongue (5) is too big, the knot will be left
hanging in the knotter tongue. The twine strand will rip
• If the clamping effect is too low, either no knot or a loose knot will form. These
faults can be avoided by correcting the spring tension on the leaf spring (3)
To do this:
• Undo nut (4) on the leaf spring (3) by about 60° or remove
Note
The knotter tongue (5) needs a slight minimum tension, for this reason never undo completely.
