12.2 Setting the needles
Pos: 38.54 /BA/Einste llungen/Großpackenpr esse/Nadeleinst ellungen/Seit liche Einstellung der Nadeln ÜS @ 25\mod_124236949705 6_78.doc @ 253521
12.2.1 Lateral setting of the needles
Pos: 38.55 /BA/Einste llungen/Großpackenpr esse/Nadeleinst ellungen/Achtung Ei nstellungen der Nade l / Nadelschwinge nicht über prüft @ 21\mod_123910 3937727_78.doc @ 229593
CAUTION! – After setting the needles / needle yoke not checked
Effect: Considerable damages to the machine
After setting the needles pass once manually through the tying process. In doing so, the
needles and needle yoke must not come in contact with the frame, baling ram or other parts
during the upward or downward motion.
Pos: 38.56 /BA/Einste llungen/Großpackenpr esse/Nadeleinst ellungen/Seit liche Einstellung der Nadeln @ 21\mod_12390911725 24_78.doc @ 228761

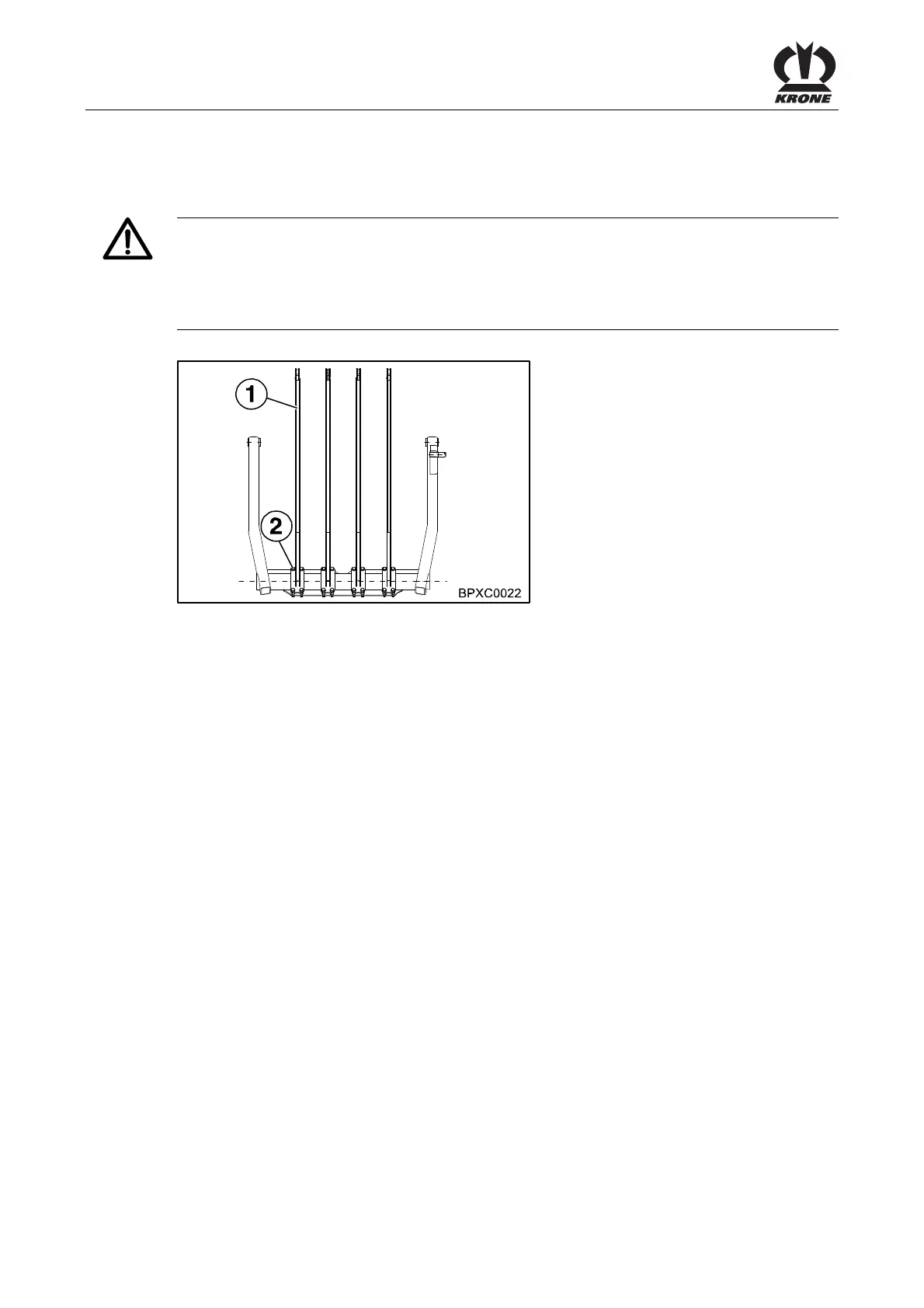

Fig. 159
Place the needles (1) so they are centered in the oblong holes of the needle yoke, align then
with the needle slots in the bale channel chamber floor and fasten them in place with the screws
(2).
• Trigger the tying process manually with machine at a standstill
• Turn the needle yoke manually on the flywheel in working direction upwards until the
needles are taken up into the needle slots of the baling ram
• Tighten the flywheel brake to lock the needles in this position
• In this position move the baling ram to the side with a mounting lever to check whether
the needle may possibly be touching the needle slots of the baling ram on the side
• If necessary, loosen the screws (2)
• Align the needles to the needle slots of the baling ram and tighten the screws (2)
• Loosen the flywheel and turn the needle yoke manually on the flywheel further upwards
into working position (the needles must be taken up in the centre of the channel slots
during rising and they must slightly be positioned on the knotter blocks in direction of
travel lateral right)
If that is not the case:
• Tighten the flywheel brake to lock the needles in this position
• Loosen the screws (2)
• Align the needles to the channel slots and tighten the screws (2)
