9.5 Buttons on the machine
WARNING! - Unexpected actions on the machine!
Effect: Injuries or damage to the machine.
• When activating the raise/lower blade bar button, make certain there is no one in the
swivel range of the blade bar
• When activating the raise/lower bale chute button, make certain there is no one in the
swivel range of the bale chute
• Repair, upkeep, maintenance and cleaning work may be performed only when the
machine is at a standstill
• Switch off the engine, remove the ignition key and turn off the electrical system on the
control box
• Secure the machine and tractor against the possibility of rolling back
Fig. 100

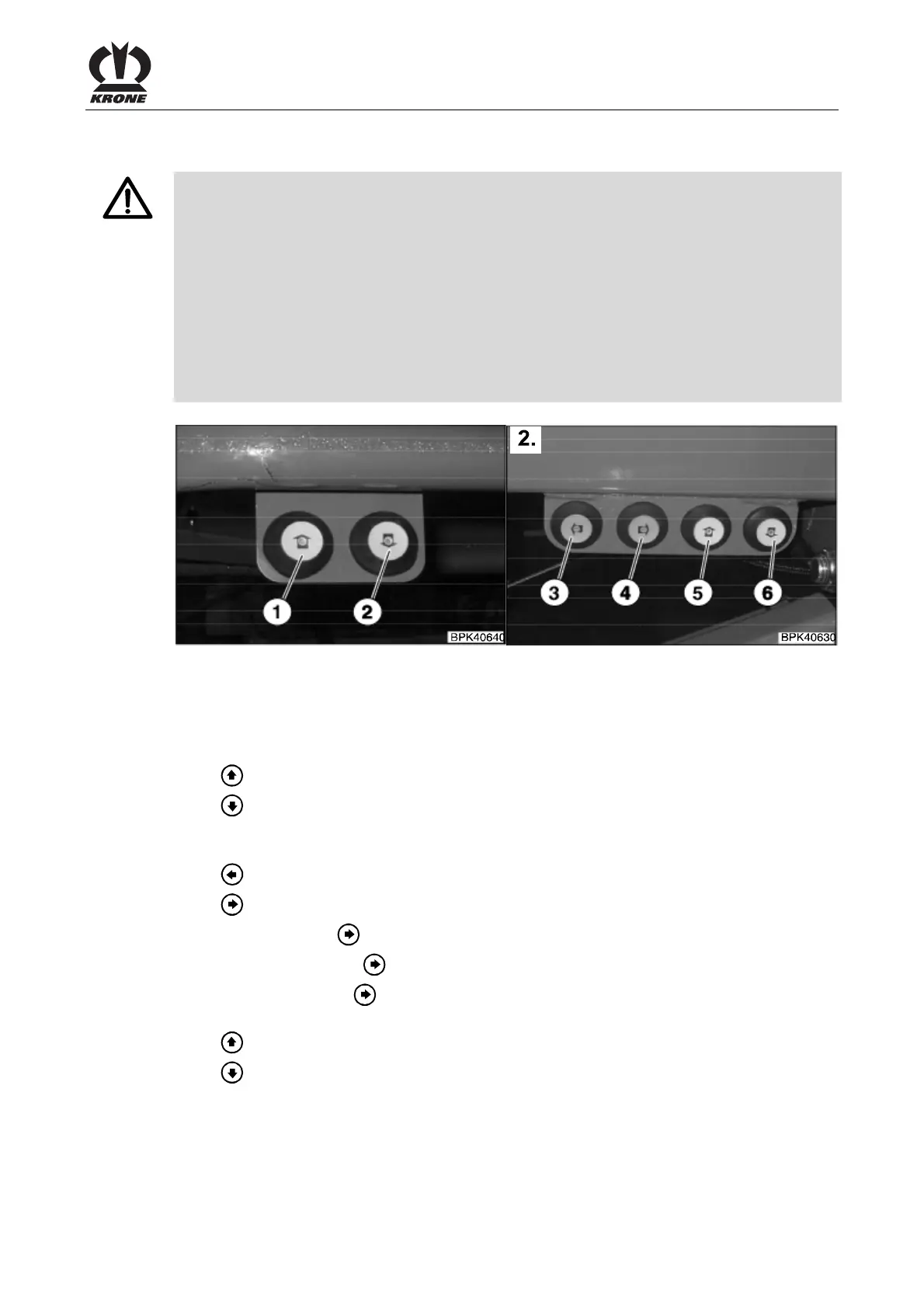

The machine has a few buttons located externally on the machine that can be used to perform
functions on the machine.
1. There are two buttons on the front left of the machine on the front side of the twine box
with the following functions:
(1) Raise blade bar
(2) Lower blade bar
2. There are four buttons on the rear left of the machine with the following functions:
(3) Move bale ejector forward
(4) Move bale ejector backward
• Press key
, bale channel flaps will be opened
• Press the key
briefly, 10 bale ejections are performed
• or press key
permanently, the bale ejector goes backwards
(5) Raise bale chute
(6) Lower bale chute
