Krone Big Pack 890 - Pick-Up Drive with XC Cutting System; Pick-Up Drive over Gearbox (Without XC Cutting System)

Operation
217
Pos: 34.51 /BA/Bedienung / Großpackenpresse/ Antriebe/Pick- up-Antrieb bei Schnei dwerk XC @ 20\mod_123899504319 1_78.doc @ 225477

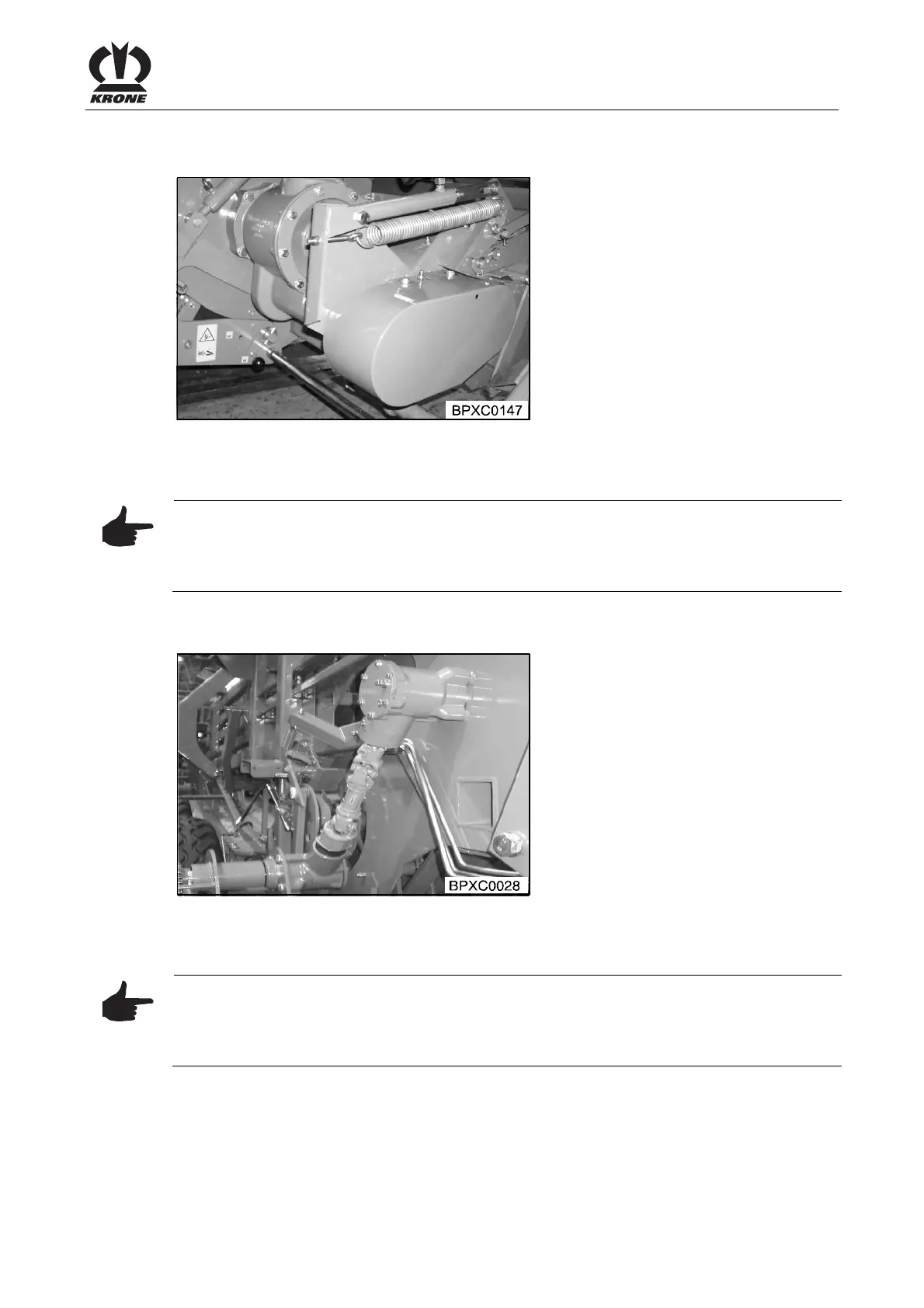

11.16 Pick-up drive with XC cutting system
Fig. 148
The torque is transmitted through a star ratchet to the drive chain of the Pick-up from the output
of the lower angular gear of the cutting system.
Pos: 34.52 /BA/Bedienung / Großpackenpresse/ Hinweis Nockenschal tkupplung angesproc hen @ 20\mod_1238994789425 _78.doc @ 225453
Note
As soon as the cam-type clutch responds, stop the tractor and reduce the speed until the
machine has cleared itself again. The cam-type clutch now automatically resumes its work.
An error message appears on the display of the control unit.
Pos: 34.53 /BA/Bedienung / Großpackenpresse/ Antriebe/Pick- up-Antrieb über Getri ebe (ohne Schneidwerk XC) @ 20\ mod_1238995141691_ 78.doc @ 225501
11.17 Pick-up drive over gearbox (without XC cutting system)
Fig. 149
The torque is transmitted by an angular gear from above through a universal shaft with overload
protection (star ratchet) downwards onto an angular gear.
Pos: 34.54 /BA/Bedienung / Großpackenpresse/ Hinweis Nockenschal tkupplung angesproc hen @ 20\mod_1238994789425 _78.doc @ 225453
Note
As soon as the cam-type clutch responds, stop the tractor and reduce the speed until the
machine has cleared itself again. The cam-type clutch now automatically resumes its work.
An error message appears on the display of the control unit.
