8.1.1 Electrical power supply
Pos: 26.3.7 /BA/Si cherheit/Gefahrenhin weise/Ausfall der Bedi eneinheit @ 6\mod_12150 61997306_78.doc @ 98196
Danger! - Failure of control unit
Effect: Danger to life, injuries or damage to the machine.
Make sure during assembly that the connection cables are not tight and that they do not come
in contact with the tractor wheels.
Pos: 26.3.8 /BA/I nfo-Center/Großpackenpr esse/Anbau/Spannung sversorgung Bedie neinheit Bild @ 18\mod_12 37285768378_78.doc @ 2095 17

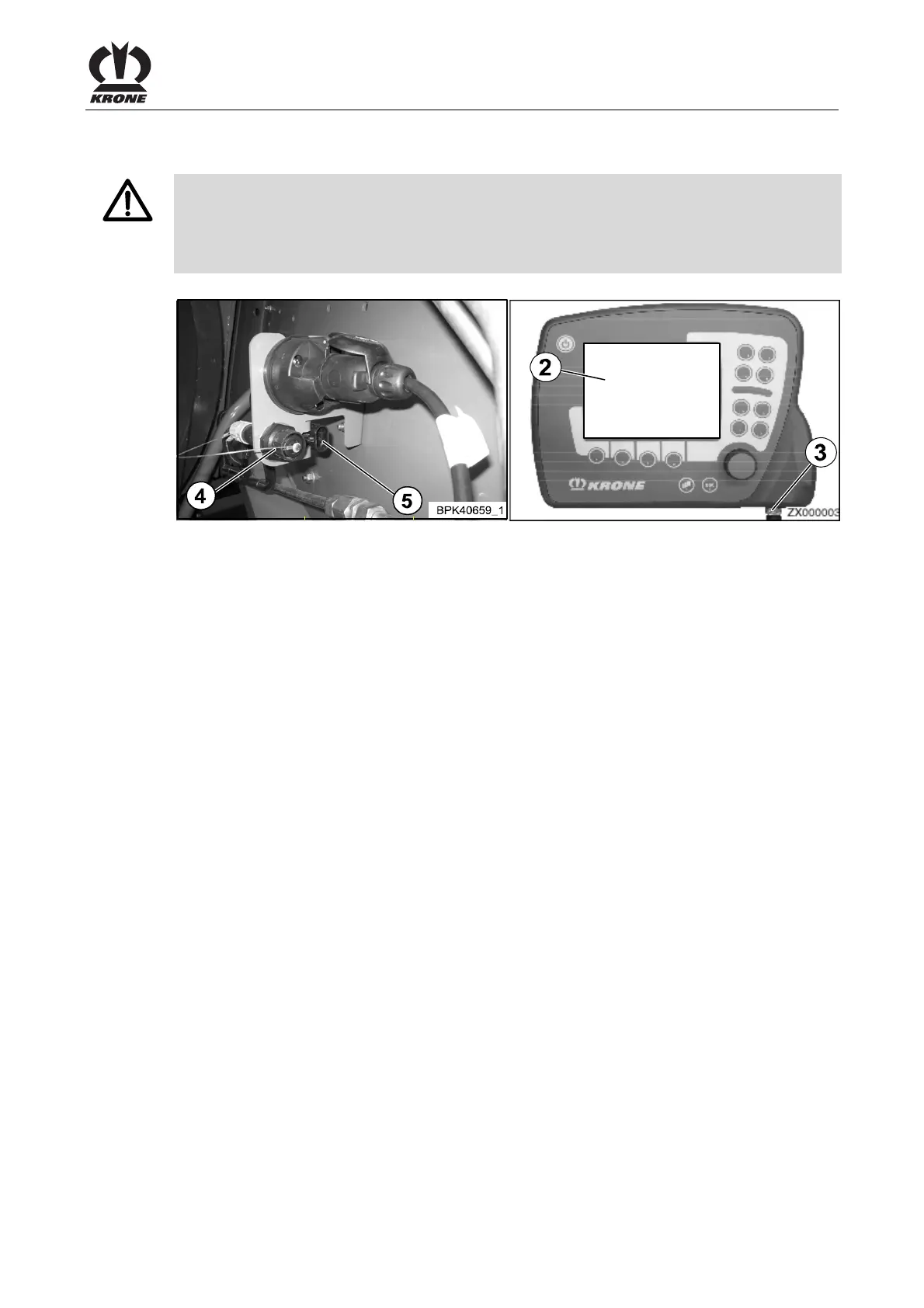

Fig. 38
Pos: 26.3.9 /BA/I nfo-Center/Großpackenpr esse/Anbau/Spannung sversorgung Text @ 18\ mod_1237285935831_78. doc @ 209542
• Connect the power supply cable (12 V) on the tractor side to the 3-pin power outlet (DIN
9680) and on the machine side with the Delphi plug (5)
• The Delphi plug (5) is located on the left-hand side of the machine (in the direction of
travel) on the metal cover close to the flywheel.
Pos: 26.3.10 /BA/I nfo-Center/Großpacken presse/Anbau/Spa nnungsversorgung Bedi eneinheit Text @ 18\mod_1 237286014690_78.doc @ 209567
Control unit
• Connect the cable included with delivery to the socket (4) on the metal cover on the left-
hand side (in the direction of travel) close to the flywheel. Also connect with the socket (3)
of the control unit (2)
