Krone Big Pack 890 - Swivelling Parking Support into Transport Position

Safety
50
Pos: 14.20 /Überschri ften/Überschri ften 2/A-E/Abstells tütze in Transportste llung schwenken @ 10\mod_1 221637347634_78.doc @ 135539
4.18 Swivelling parking support into transport position
Pos: 14.21 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Abste llstütze Bild BiG PAck @ 17\ mod_1236319721776_78. doc @ 204483
BPXC0109_1
2
4
5
3
1

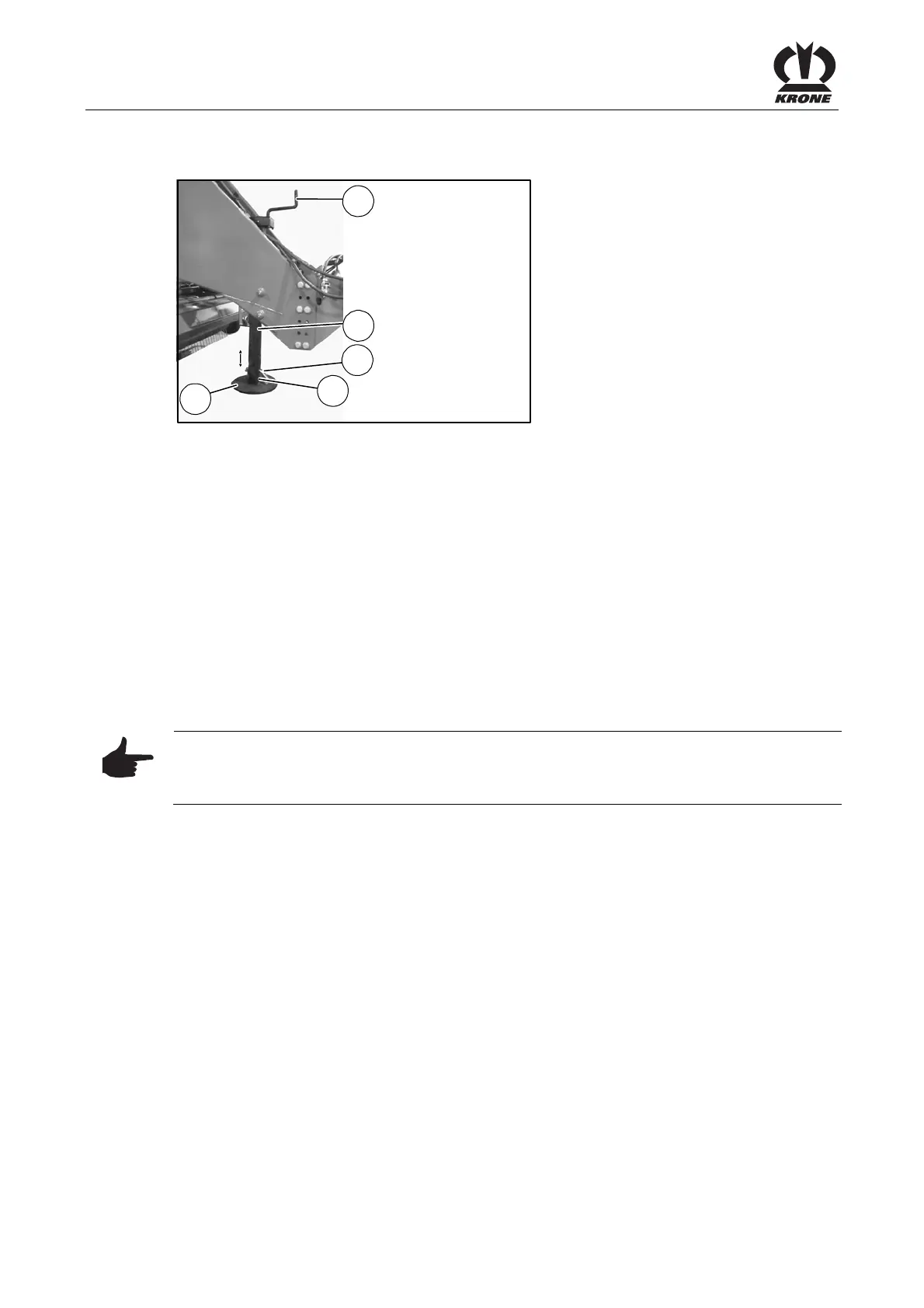

Fig. 12
Pos: 14.22 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Auf Abs tellstütze abgestel lt @ 17\mod_1236318204666_ 78.doc @ 204361
As long as the machine is not connected to the tractor, the drawbar is supported on the parking
support.
Pos: 14.23 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Abste llstütze hochdrehen: @ 17\mod_1236318602807_7 8.doc @ 204411
To raise the parking support:
• As soon as the machine is connected to the tractor, turn the crank (1) several revolutions
clockwise until there is no more weight on the parking jack (3)
• Withdraw the locking bolt (5) on the lower part of the parking support (2), push in the
parking support and secure it in position (4) with the bolt
• Then crank the parking support up all the way
Pos: 14.24 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Abste llstütze runter dr ehen @ 17\mod_1236319486963_7 8.doc @ 204435
To lower the parking support (to support the drawbar):
• To disconnect the machine from the tractor, first lower the raised parking support (2) a
few revolutions with the crank (1)
• Pull out the bolt (5) and extend the lower part of the parking support. Secure with the bolt
(5)
Pos: 14.25 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Abste llstütze Standfläc he vergrößern @ 17\mod_123631 9619729_78.doc @ 204459
Note
If the ground is soft, enlarge the footprint of the parking jack (3) by placing a wooden plank
underneath.
