Krone Big Pack 890 - Lubricating the Rollers and Cam Follower Rollers on the Packer Strips

Maintenance – lubrication
297
Pos: 42.51.21 /BA/W artung/Großpackenpre ssen/Schmierung / Sc hmierplan/Abschmieren L auf- und Steuerroll en auf den Rafferleisten @ 24\ mod_1241694221711_78. doc @ 247794
15.5 Lubricating the rollers and cam follower rollers on the packer strips

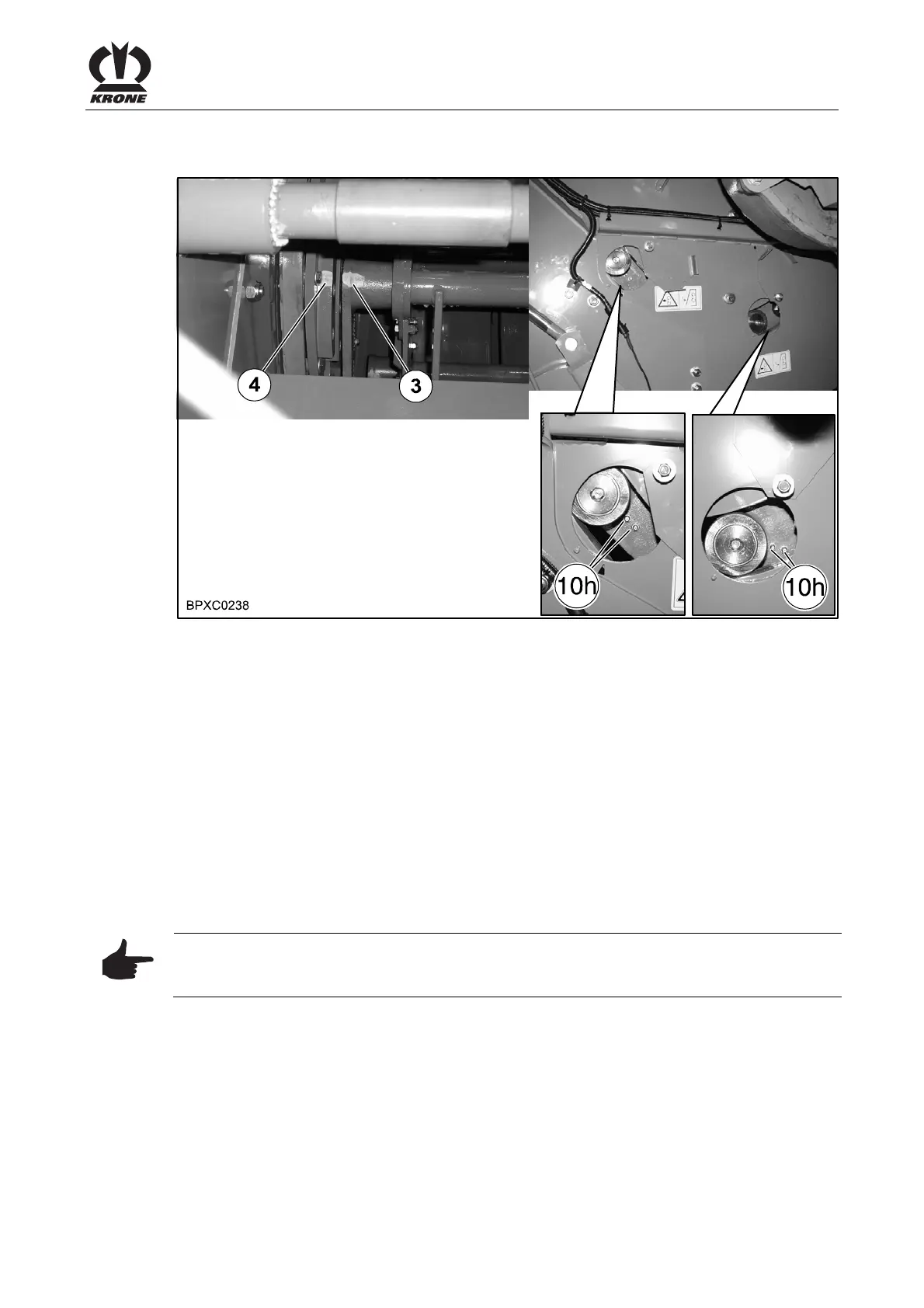

Fig. 226
In case the machine is not equipped with an automatic central lubrication the rollers and cam
follower rollers need to be lubricated manually every 10 hours.
Packer strips can be lubricated through the openings (5) on the left side of the machine.
To do this:
• Turn off the P.T.O. shaft
• Remove the ignition key and turn off the electrical system on the control unit
• Apply the flywheel brake
• Secure the tractor and machine against rolling
• Go to the platform (2) on the drawbar and turn the flywheel (1) far enough in the work
direction so that the mark (3) (on the packer lever) matches the mark (4) (on the cam
disc)
• Lubricate the first 2 packer strips
• Repeat the process 2 more times
Note
There is a setting in which only one packer strip can be detected on the left side of the
machine. In this case, the feeder strip on the right side of the machine must be lubricated.
