6.5 Load-sensing connection
Pos: 20.31.2 /BA/W artung/Load-Sensing/ Großpackenpresse/An schluss Load-Sensing Bi ld BiG Pack @ 17\mod_12363 37158588_78.doc @ 205123
BPXC0117
2
1
Version I Version II
3

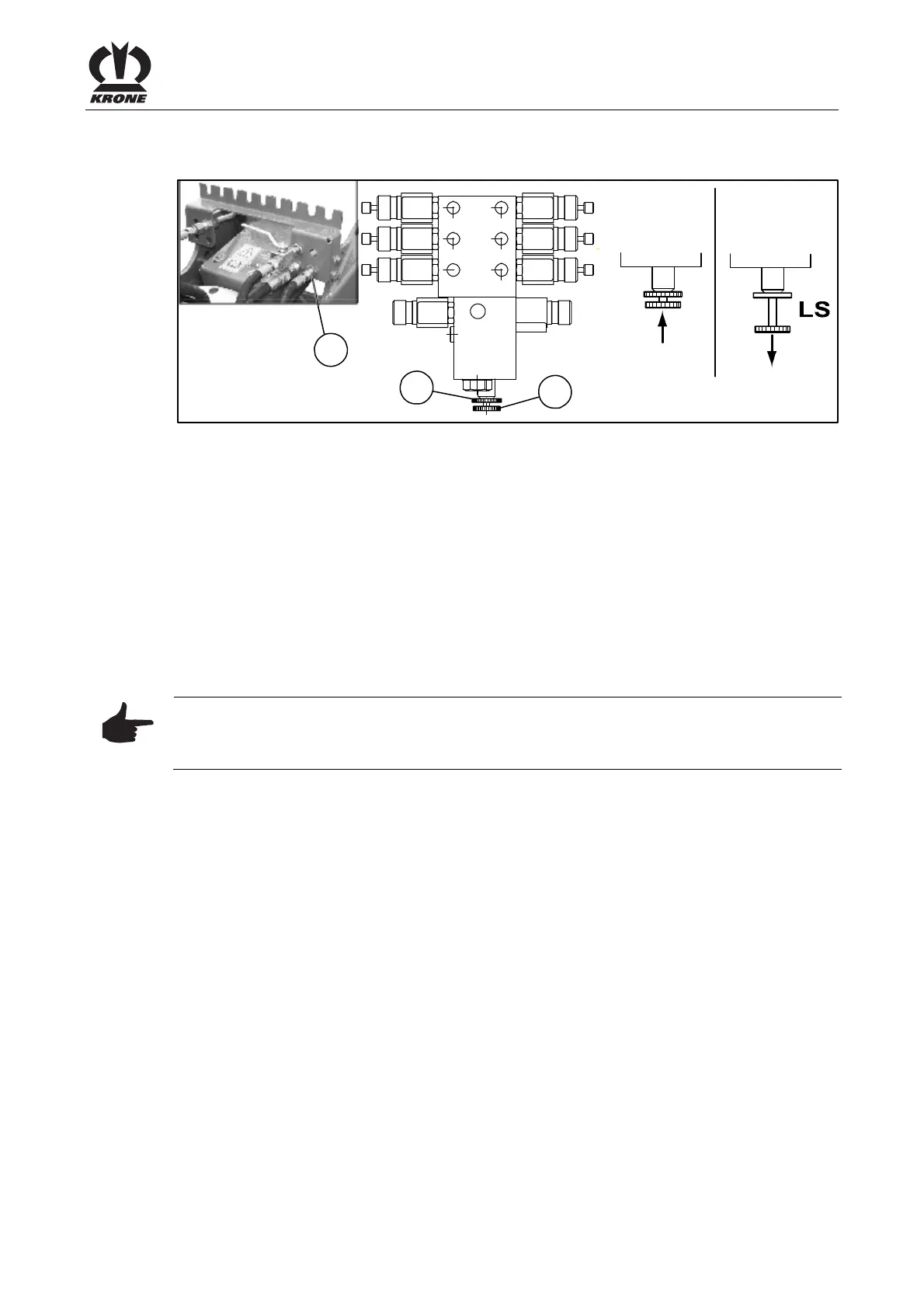

Fig. 23
Pos: 20.31.3 /BA/W artung/Load-Sensing/ Großpackenpresse/L oad-Sensing-Anschl uss BigPack @ 24\mod_12416 04498659_78.doc @ 24 6628
The Comfort hydraulic system is load-sensing-capable.
The oil supply comes through the Power-Beyond system of the tractor hydraulics for use of the
load-sensing system (further information can be obtained from the operating instructions
provided by the manufacturer of the tractor).
Pos: 20.31.4 /Überschr iften/Überschr iften 2/A-E/Anpasse n des Hydrauliksyste ms @ 1\mod_1201241743588_78. doc @ 52013
6.6 Adjusting the hydraulic system
Pos: 20.31.5 /BA/W artung/Load-Sensing/ Großpackenpresse/An passen des Hydrauliksy stems BiG PAck @ 17\mod_12 36336508823_78.d oc @ 205078
The comfort hydraulic system of the machine must be adjusted on the tractor. It is designed for
continuous circulation. The adjustment is made by adjusting the hydraulic system screw on the
control valve block of the machine. The control valve block is located at the front left under the
side hood next to the electronics box.
Note
The adjustment depends on the hydraulic system of the tractor and must be made while there
is no pressure in the machine!
