8.1 Mounting the control unit

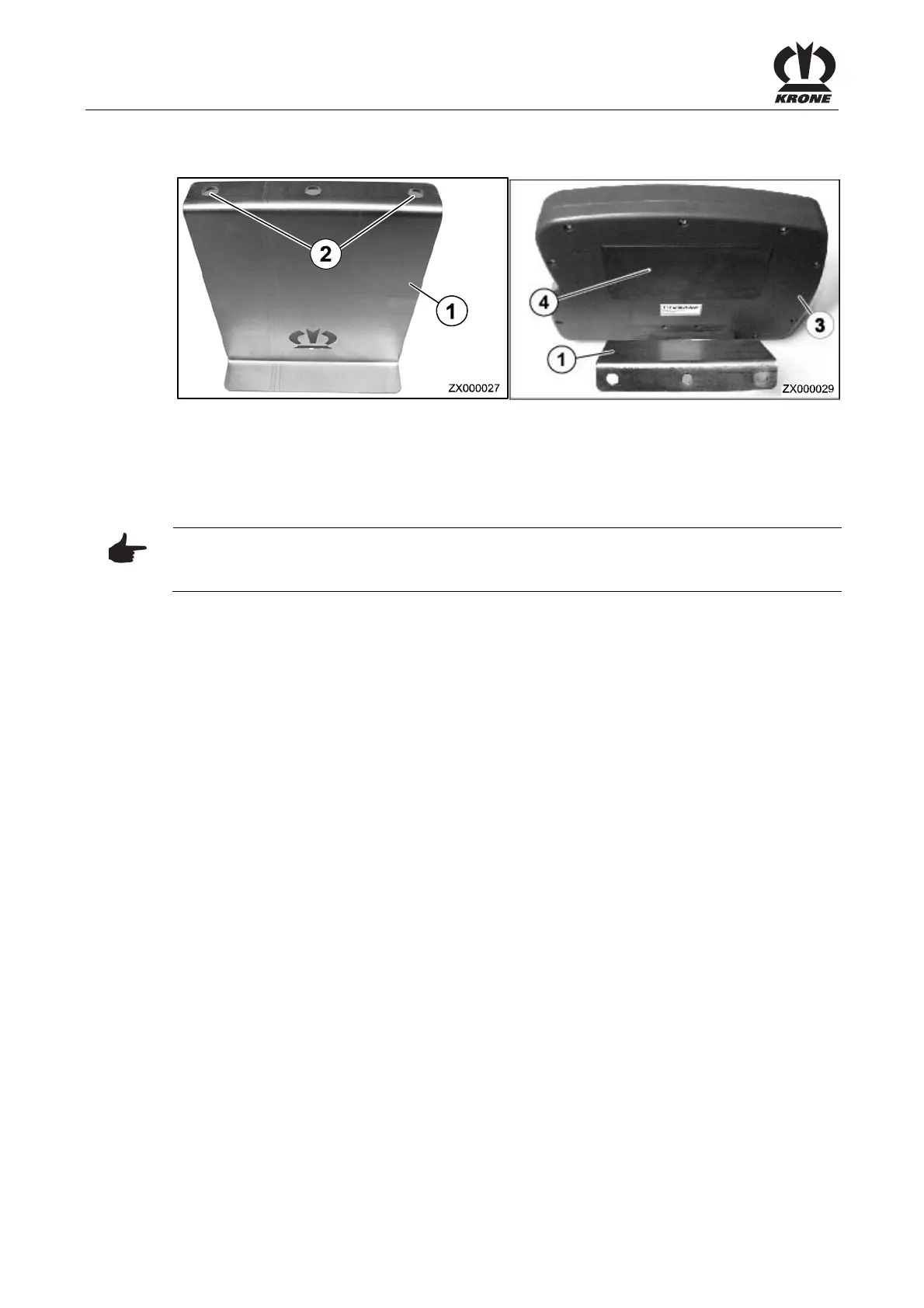

Fig. 37
Direct fastening
• Fasten the retainer (1) using the drill holes (2) already present.
The control unit (3) is fixed by the magnetic plate (4) on the retainer (1).
Pos: 26.3.4 /BA/I nfo-Center/Hinweis Bedi eneinheit muss proble mlos vom Fahresitz aus bedien t werden @ 36\mod_12603638 33832_78.doc @ 336474
Note
Install the control unit with the support (1) in that way, that the control unit can be operated from
driver´s seat without any problems.
