(BigPack 890 without XC)
Pos: 38.105.20 /BA/Ei nstellungen/Großpac kenpresse/Pressko lbeneinstellun g/Raffer einstelle n Big Pack 890 Bild @ 57\mod_129646 3263598_78.doc @ 550609
10
BPXC0319
1
9
10
Fig. 189
Pos: 38.105.21 /BA/Ei nstellungen/Großpac kenpresse/Pressko lbeneinstellun g/Raffer einstelle n BigPack 890 @ 57\mod_129646 6244641_78.doc @ 551047
Turn the packer manually in the working direction by turning the flywheel until the large packer
strip roller (9) running in front of the feeder strip (1) is located just behind the viewing window
(10).
Pos: 38.105.22 /BA/Ei nstellungen/Großpac kenpresse/Pressko lbeneinstellun g/Raffer mit Montierheb el sichern @ 24\mod_124 1429884555_78.doc @ 244195

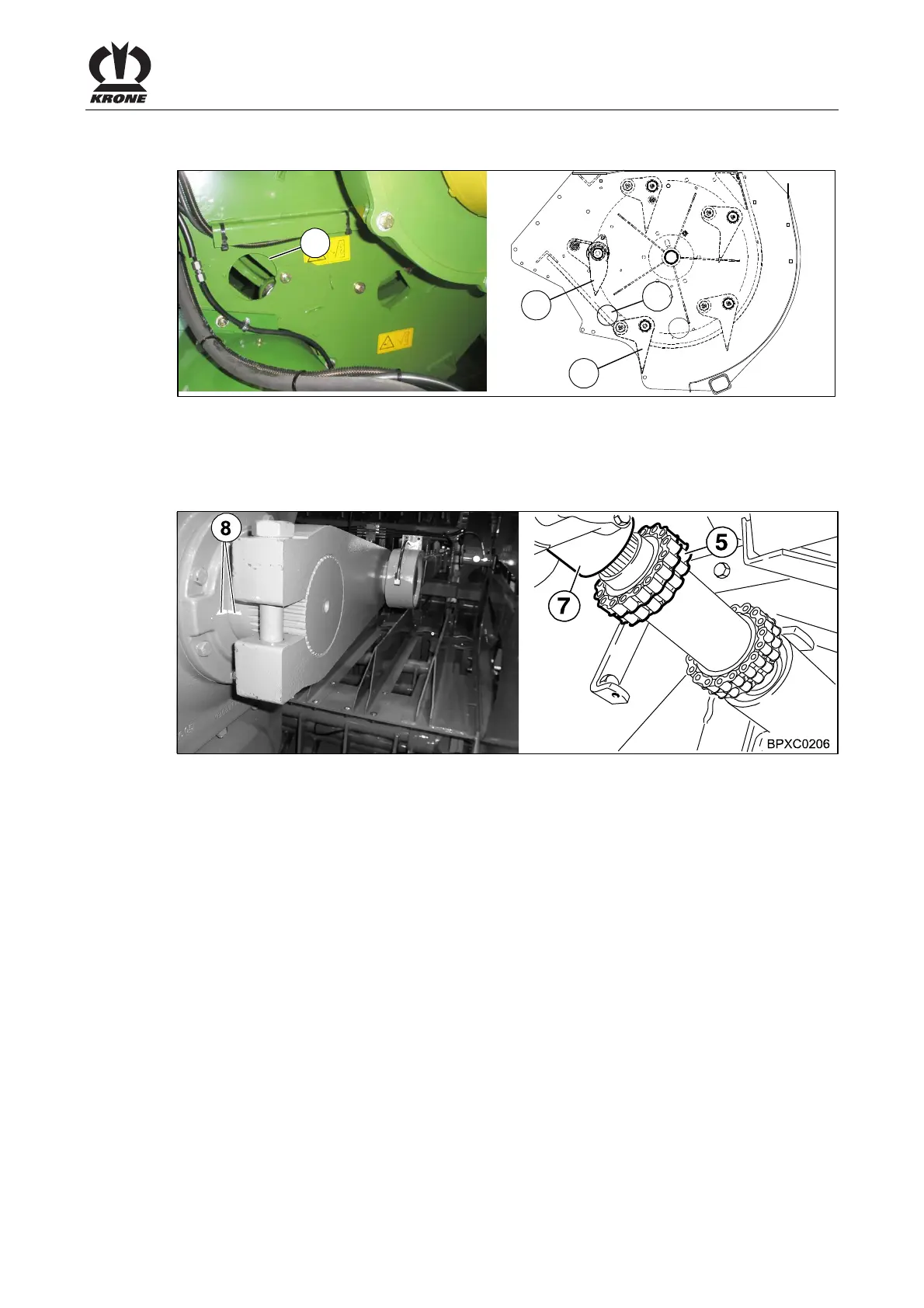

Fig. 190
• Secure the packer in this position with a mounting lever
• Remove the roller chain (5) from the packer gearbox drive shaft (7)
• Move the piston rods to the extended position (rear dead point) until the marks (8) on the
main gearbox match
The packer, fixed in position by the mounting lever and the plunger are now positioned as
required.
• Position the chain coupling roller chain (5) and secure it Set the safety covering in place
and remove the mounting lever.
• Turn through the machine manually in the working direction one complete time on the
flywheel
• Then check the setting one more time
