KRONE operation terminal Gamma
123
Pos: 26.32.33 /BA/I nfo-Center/Ladewagen/ Hauptmenüs/Haupt menü 4 Service/Diagnose Ver sorgungsspannung en @ 47\mod_1285323333921_ 78.doc @ 456326

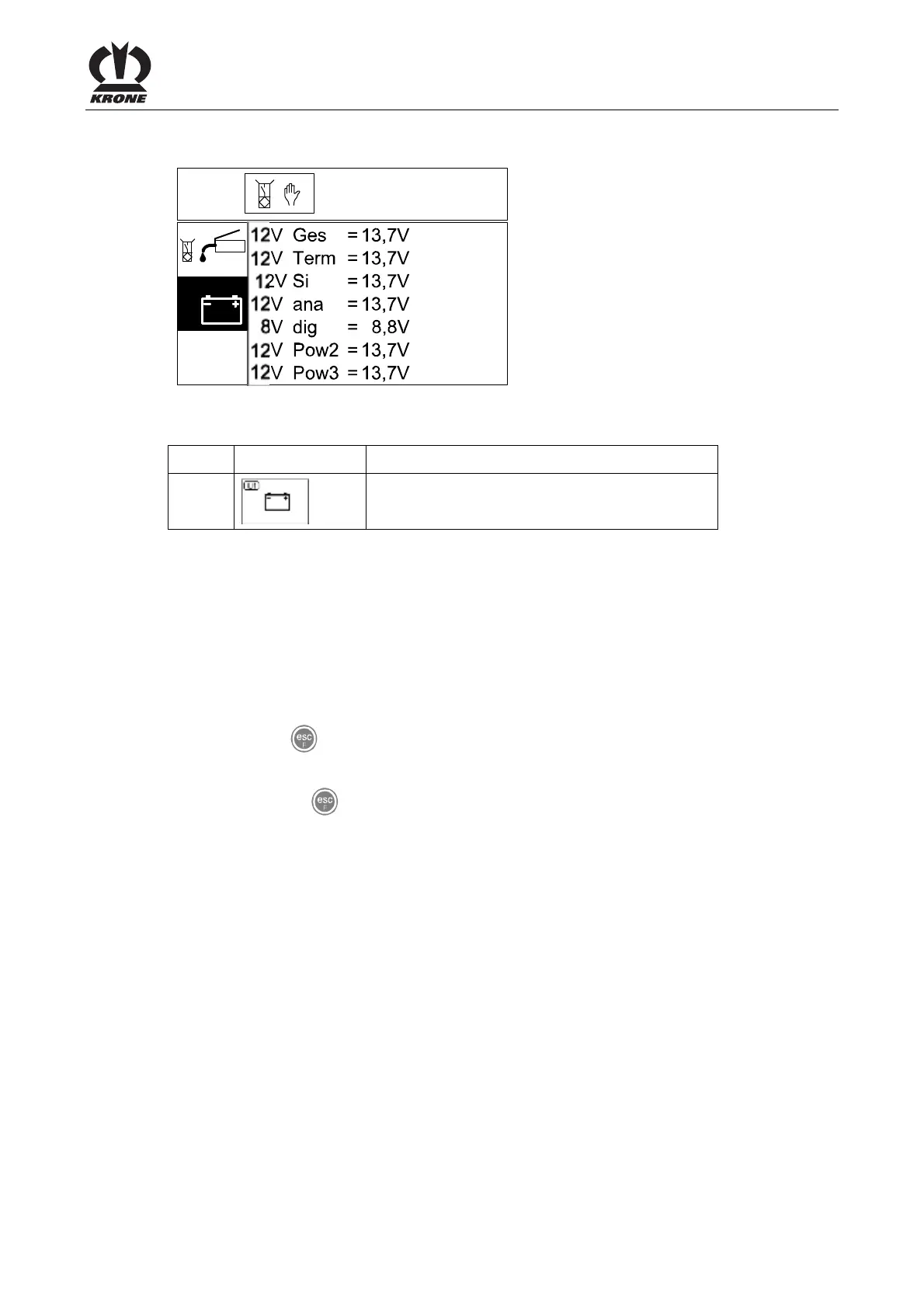

Diagnostics - power supply voltages
4-2
U1
B3
L400230_1
Figure 75
No. Sensor icon Description
U1
supply voltage
Nominal voltages:
• 12V Ges: 12 - 14,5 V
• 12V Term: 12 - 14,5 V
• 12VSi: 12 – 14,5 V
• 12V ana: 12 – 14,5 V
• 8V dig: 8,5 - 9,1 V
• 12V Pow2: 12 - 14,5 V
• 12V Pow3: 12 - 14,5 V
• Press the
key to close the menu currently displayed.
The display shows menu level 4 "Service".
• Pressing the
key and holding it down brings up the basic screen.
