KRONE operation terminal Gamma
122
Pos: 26.32.25 /BA/I nfo-Center/Sensoren/ Diagnose Kraftsens oren @ 19\mod_1238136713 228_78.doc @ 215126

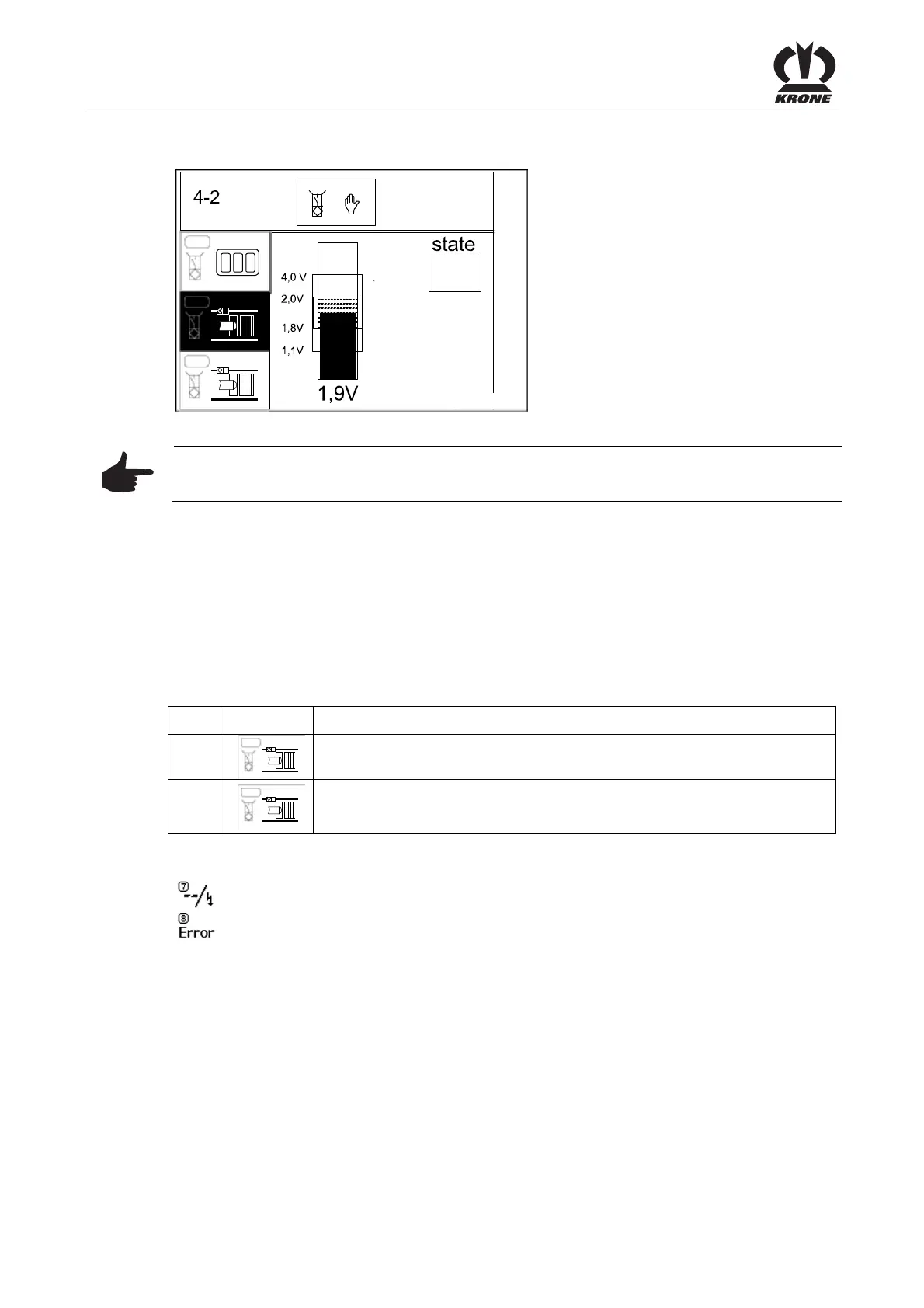

Diagnostics – force sensors
Pos: 26.32.26 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Diagnose Kraftsensor en Bild @ 19\mod_12381369 70306_78.doc @ 215176
BPK40531_1
B21
B19
R
B18
L
Fig. 74
Pos: 26.32.27 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Diagnose Kraftsensor Hinweis @ 19\mod_1238571 978401_78.doc @ 220423
Note
Status messages are only valid if force sensors have already been adjusted correctly once.
Pos: 26.32.28 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Einstellwerte Kraf tsensoren Hand @ 19\mod_1238 136814650_78.doc @ 215155
Setting values:
If a sensor has been changed or the bar is outside the outer mark, the force measurement
amplifier must be adjusted (with the potentiometer) so that it is inside the inner marking.
Inner marking:
The bale must be between 1.8 V and 2.0 V
Outside marking:
The bar must be between 1.1 V and 4.0 V
Pos: 26.32.29 /BA/I nfo-Center/Sensoren/ Kraftsensor @ 19\ mod_1238137437088_78.doc @ 215251
Force sensors
Pos: 26.32.30 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Auflistung der möglic hen Kraftsensoren @ 19\mo d_1238137214900_78.doc @ 215226
No. Symbol Description
B18
B18
L
Plunger force, left
B19
B19
R
Plunger force, right
Pos: 26.32.31 /BA/I nfo-Center/Sensoren/ Statusanzeigen Kr aftsensor @ 19\mod_1238137 064775_78.doc @ 215205
State:
Broken cable or short circuit
Defect in the sensor / force measurement amplifier or job computer
