KRONE operation terminal Gamma
121
Pos: 26.32.18 /BA/I nfo-Center/Sensoren/ Diagnose analoge Sensor en @ 19\mod_123813226336 9_78.doc @ 214965

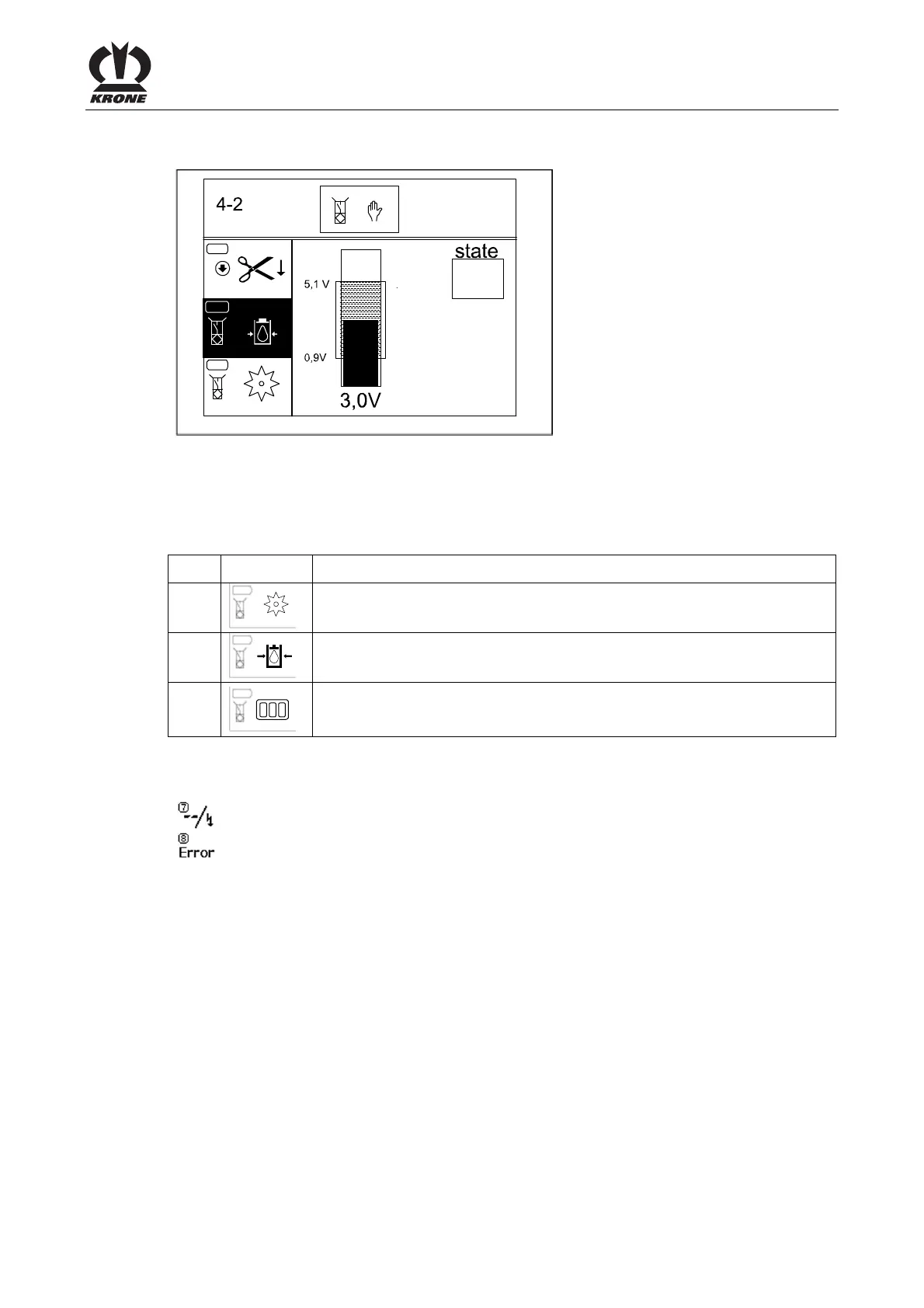

Diagnostics – analogue sensors
Pos: 26.32.19 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Diagnose analoge Sensoren Bi ld @ 19\mod_1238132473 244_78.doc @ 215015
BPK40521
B15
S2
B17
Fig. 73
Pos: 26.32.20 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Einstellwerte ana loge Sensoren Hand @ 19\mod_1 238132357119_78.doc @ 214994
Setting values:
The bar must be inside the marked area of the bar display.
Pos: 26.32.21 /BA/I nfo-Center/Sensoren/ Mögliche analoge Sensor en (je nach Ausstattu ng der Maschine) @ 19\mod_12381 32689353_78.doc @ 215041
Possible analogue sensors (depending on how the machine is equipped)
Pos: 26.32.22 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Auflistung der möglic hen analogen Sensoren @ 19\ mod_1238132775728_78. doc @ 215066
No. Symbol Description
B15
B15
Star wheel (rotate star wheel: The bar must always be in the marked area
for a full rotation)
B17
B17
Bale channel flap pressure (the bar must be in the lower marked area at
0 bar / PSI)
B21
B21
MultiBale (the system tests whether the sensor is defective. The setting
must be made in the fitter settings)
Pos: 26.32.23 /BA/I nfo-Center/Sensoren/ Statusanzeige ana loge Sensoren (7,8) @ 19\ mod_1238133054056_78.d oc @ 215095
State:
Broken cable or short circuit
Defect in the sensor or job computer
Pos: 26.32.24 /BA/- ----Seitenumbruch------ @ 0\mod_1196175311226_0.doc @ 4165
To Next Page
