KRONE operation terminal Gamma
120
Pos: 26.32.11 /BA/I nfo-Center/Sensoren/ Diagnose Taster @ 19\ mod_1238078012972_78.d oc @ 214752

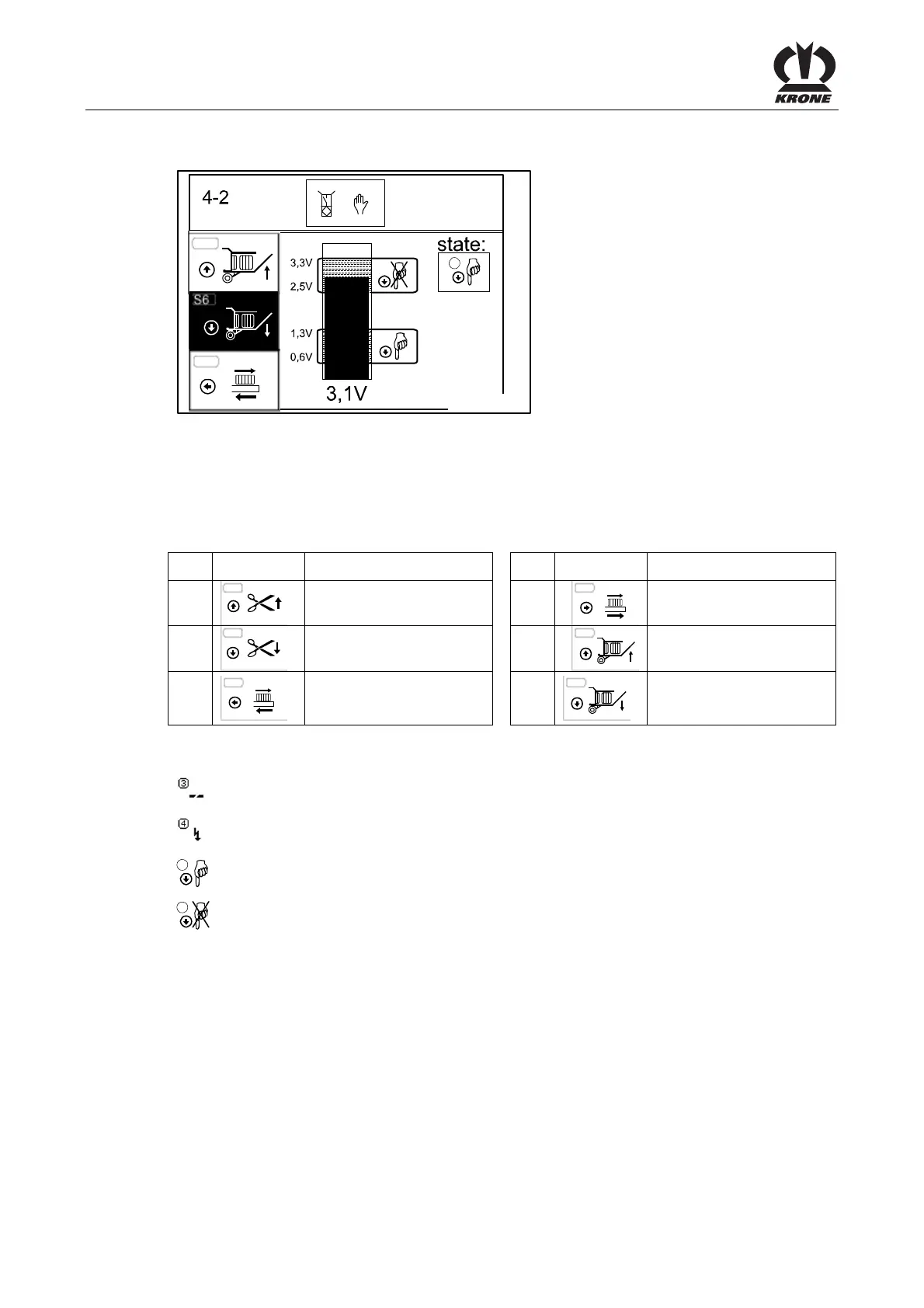

Diagnostics for buttons
Pos: 26.32.12 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Diagnose Taster Bild @ 19\ mod_1238132160353_7 8.doc @ 214941
BPK40210
S5
S6
S3
5
Fig. 72
Pos: 26.32.13 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Einstellwerte Taster test Hand @ 19\mod_123807 8727722_78.doc @ 214806
Setting values:
When the button is pressed, the bar must be in the lower marked area of the bar display. When
the button is released, it should be in the upper area.
Pos: 26.32.14 /BA/I nfo-Center/Sensoren/ Mögliche Taster ( je nach Ausstattung der Masc hine) @ 19\mod_123807887222 2_78.doc @ 214852
Possible buttons (depending on how the machine is equipped)
Pos: 26.32.15 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Auflistung der möglic hen Taster @ 19\mod_123807 8928566_78.doc @ 214877
No. Symbol Description No. Symbol Description
S1
S1
Blade bar up button S4
S4
Bale ejector out button
S2
S2
Blade bar down button S5
S5
Bale chute up
button
S3
S3
Bale ejector in button S6
S6
Bale chute down button
Pos: 26.32.16 /BA/I nfo-Center/Sensoren/ Statusanzeigen Taster @ 19\mod_12380780892 53_78.doc @ 214781
State:
Cable brake
Short circuit
5
Pressed
6
Not pressed
