Diagnostics – Namur sensors
Pos: 26.32.7 /BA/I nfo-Center/Sensoren/ Mögliche Sensoren (je n ach Ausstattung der Masc hine) @ 19\mod_123807133 6628_78.doc @ 214010
Possible sensors (depending on how the machine is equipped)
Pos: 26.32.8 /BA/I nfo-Center/Großpacken presse/Hauptmenüs/ Hauptmenü 4 Service/ Auflistung der möglic hen Sensoren @ 19\mod_1238070 008550_78.doc @ 213866

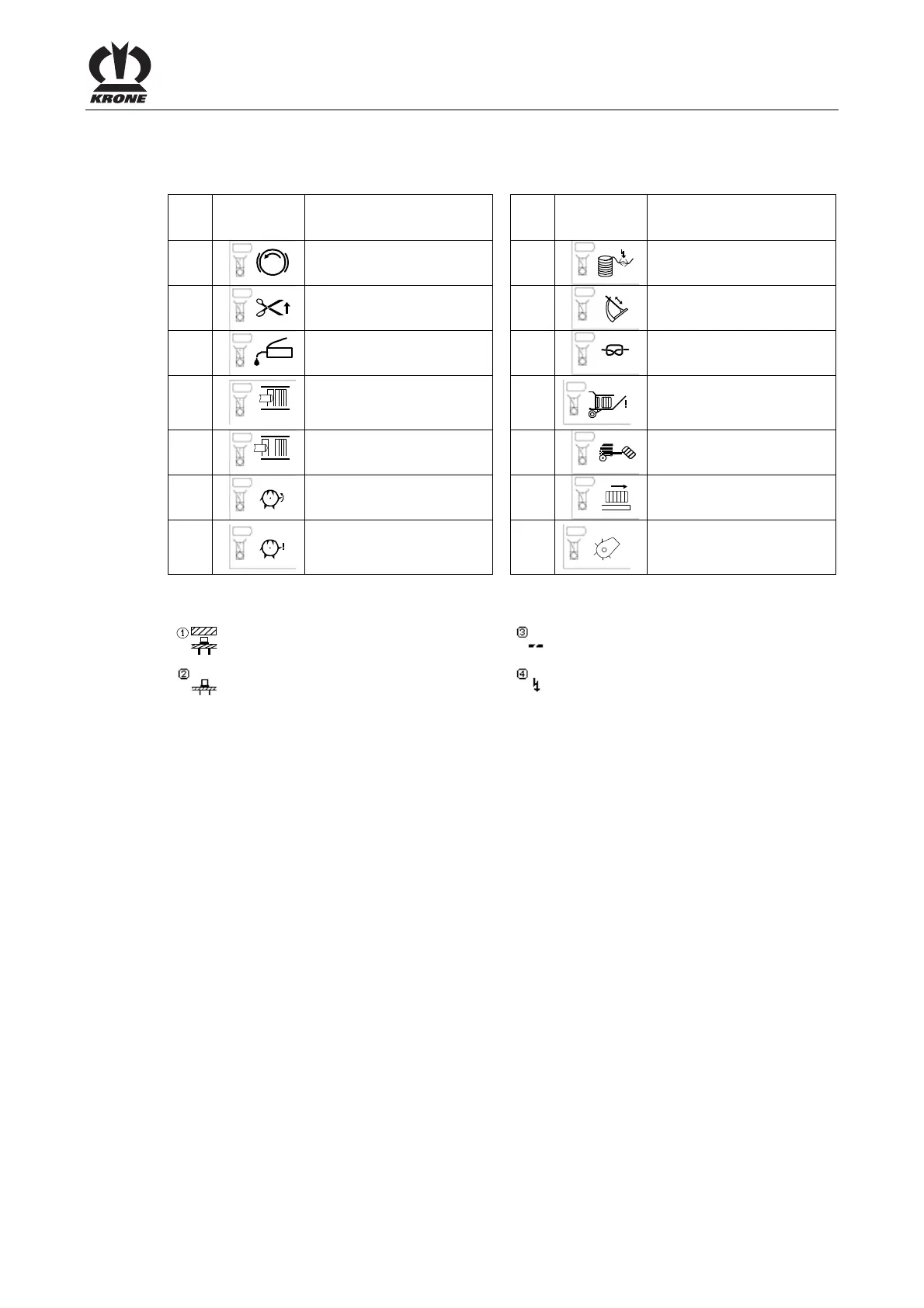

No. Sensor
symbol
Description No. Sensor
symbol
Description
B1
B1
Flywheel brake B8
B8
Twine monitoring
B2
B2
Upper blade bar B9
B9
Needle connecting rod
B3
B3
Central lubrication B10
B10
Knotter monitoring
B4
B4
Measurement B11
B11
Bale chute
B5
B5
Calibration B12
B12
Setting down bales
B6
B6
?
Packer monitoring B14
B14
Bale ejector
B7
B7
Packer feed B20
B20
Pick-up
Pos: 26.32.9 /BA/I nfo-Center/Sensoren/ Statusanzeigen Sensor (1,2,3,4) @ 0\ mod_1200910680947_78.doc @ 47748
State:
Alive (iron) Broken cable
Not alive (no iron) Short circuit
