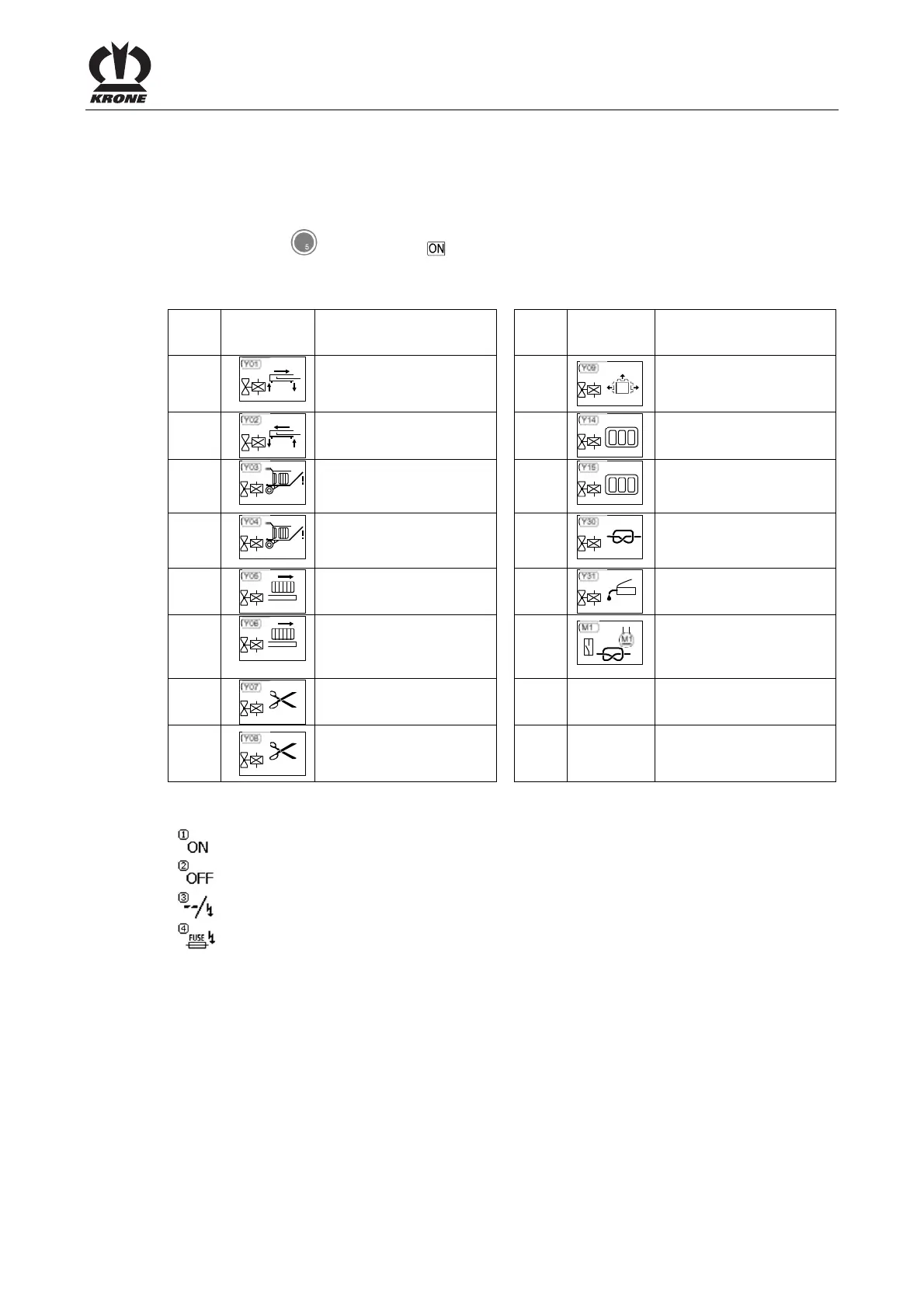

Diagnostics – digital actuators
Errors are only displayed if the actuator is turned on and a test is possible for the actuator (see
the table called "Possible digital actuators"). If necessary, the LED on the plug right on the
actuator can be used for monitoring.
• Press the
key for softkey .
Pos: 26.32.44 /BA/I nfo-Center/Sensoren/ Mögliche digitale Ak toren (je nach Ausstat tung der Maschine) @ 19\mod_12 38420935128_78.do c @ 217969
Possible digital actuators (depending on how the machine is equipped)
Pos: 26.32.45 /BA/I nfo-Center/Großpacke npresse/Hauptmenü s/Hauptmenü 4 Service/ Auflistung der möglic hen digitalen Altoren @ 19\mod_1238421060503_ 78.doc @ 217994
No. Sensor
symbol
Description No. Sensor
symbol
Description
Y01
Main valve
Y09
Valve to open bale
channel flaps
Y02
Main valve
Y14
BigBale (error detection
is not possible)
Y03
Bale chute
Y15 MultiBale (error
detection is not
possible)
Y04
Bale chute
Y30 Knotter cleaning (error
detection is not
possible)
Y05
Bale ejector
Y31
Central lubrication
Y06
Bale ejector
M1
Knotter triggering (error
detection is not
possible)
Y07
Blade bar
Y08
Blade bar
Pos: 26.32.46 /BA/I nfo-Center/Sensoren/ Statusanzeige digi taler Aktoren (1,2,3, 4) @ 19\mod_123847785258 7_78.doc @ 218655
State:
Actuator on
Actuator off
General actuator error
No power supply; fuse is probably defective
