Diagnostics analogue actuators
BPK40250

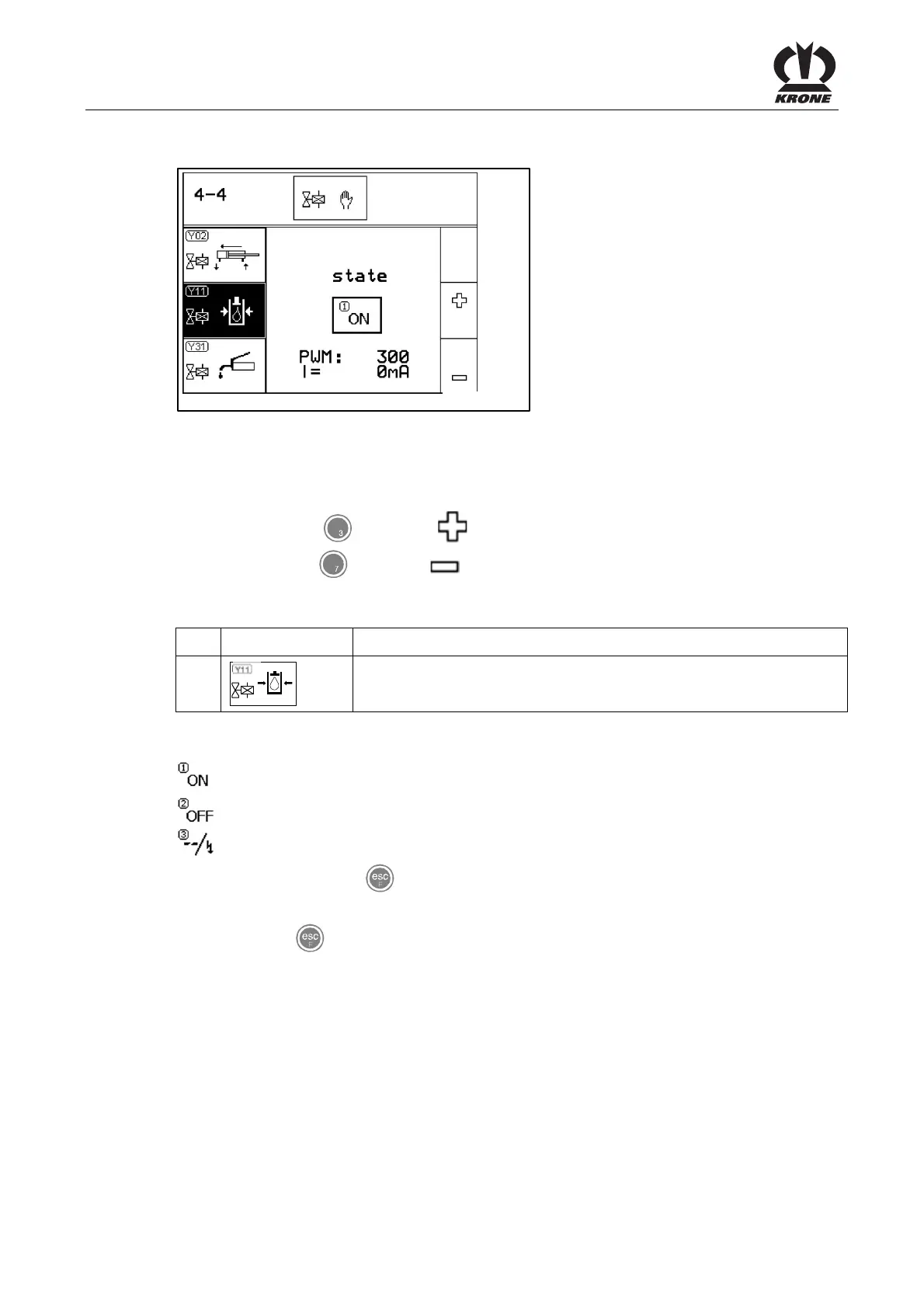

Fig. 77
A current (in mA) can be created with the PWM value (in parts per thousand).
With a value of PWM = 500, the current should be between 500 mA and 3000 mA (depending
on the valve that is used and the operating temperature.
• Press the key
for softkey ; PWM is increased
• Press the key
for softkey ; PWM is decreased
Possible analogue actuators
No. Symbol Description
Y11
Pressure limitation valve
State:
Actuator on
Actuator off
No power supply; fuse is probably defective
• You can use the key
to close the menu currently displayed
The display shows menu level 4 "Service".
Pressing the key
twice brings up the basic screen.
