Krone Big Pack 890 - Page 223

Settings
223
Pos: 38.20 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Doppelkno ter @ 20\mod_1239010038 066_78.doc @ 226971
Double knotter
Pos: 38.21 /Abkürzun gen /Abkürzungen sprac hneutral/Großpacken presse/Big Pack 890 @ 20\mod_ 1239010660863_0.doc @ 227119
Big Pack 890
Pos: 38.22 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Doppelkno ter Fadenführung all gemein Big Pack 890 @ 20\mod_12 39019971425_78.doc @ 227699
The 4 rolls in driving direction front (right hand and left hand machine side) provide for the
upper 2 twine strands (upper twine) and lead over the twine brakes (in the twine box) to the
upper twine brakes.
The 8 following twine rolls provide for the 2 lower twine strands (lower twine) and lead over the
twine brakes (in the twine box) to the lower twine brakes.
Each one upper twine and lower twine are lead to each knotter during the baling process.
Pos: 38.23 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Verbinde n Bindegarn Bild BigPac k 890 Doppelknoter @ 20\mod_12 39012212738_78.doc @ 227293

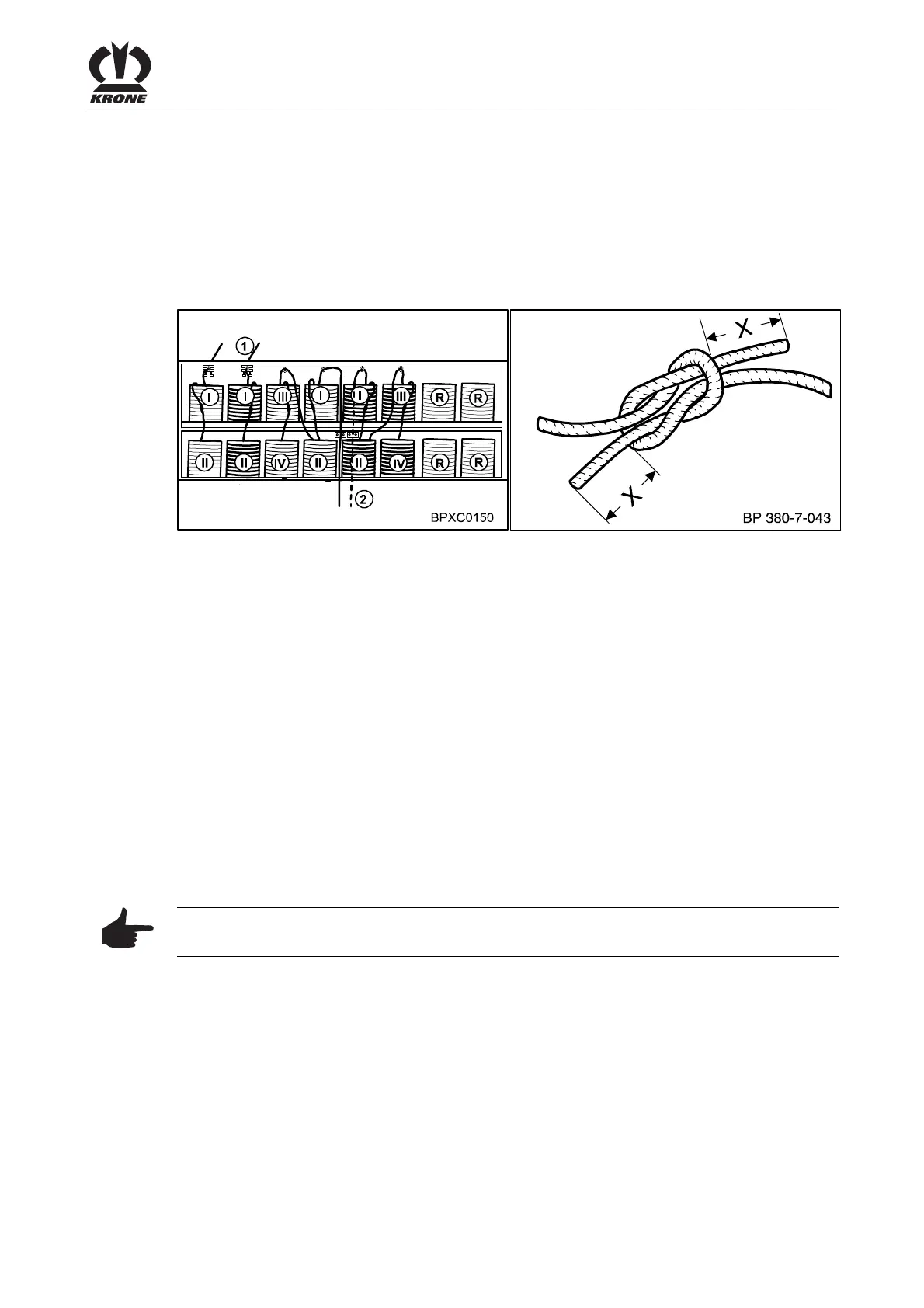

Fig. 153
Pos: 38.24 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/oberer Gar nstrang (1) @ 20\mod_123901 0309316_78.doc @ 2270 44
upper twine strand (1)
Pos: 38.25 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Bindegar n einlegen I,II Einfachknoter @ 20\mo d_1239010466722_7 8.doc @ 227068
1 Lead the beginning of the twine of the twine roll (I) over the eye through the upper twine
brake (in the twine box).
2 Connect the end of the twine of twine roll (I) and the beginning of the twine of twine roll
(II) by a reef knot.
Pos: 38.26 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/unterer Garnstrang (2) @ 20\mod_1239 010516503_78.doc @ 227093
lower twine strand (2)
Pos: 38.27 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Bindegar n einlegen I,II,III,IV @ 20\mod_1239010137644_78.d oc @ 226996
1 Lead the beginning of the twine of the twine roll (I) over the upper eye through the lower
twine brake (in the twine box) to the other lower twine eye
2 Connect the end of the twine of twine roll (I) and the beginning of the twine of twine roll
(II) by a reef knot.
3 Lead the end of the twine of twine roll (II) over the upper eye to the beginning of the twine
of twine roll (III) and connect them by a reef knot.
4 Connect the end of the twine of twine roll (III) and the beginning of the twine of twine roll
(IV) by a reef knot.
Pos: 38.28 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Enden des Kreuz knotens kürzen @ 20\ mod_1239016315956_78. doc @ 227545
5 Shorten the ends of the reef knot to x = 15 - 20 mm
Pos: 38.29 /BA/Einste llungen/Großpackenpr esse/Bindegarn ei nfädeln/Hinweis Reverserollen (R) @ 20\ mod_1239010206160_78.doc @ 227020
Note
The twine rolls (R) are auxiliary rolls. They must not be connected with other rolls.
