Start-up
63
Pos: 20.22 /BA/Inbetr iebnahme/Großpac kenpresse/Hydraulikan schluss Bild BiG Pac k @ 17\mod_1236332366948_78.d oc @ 204875

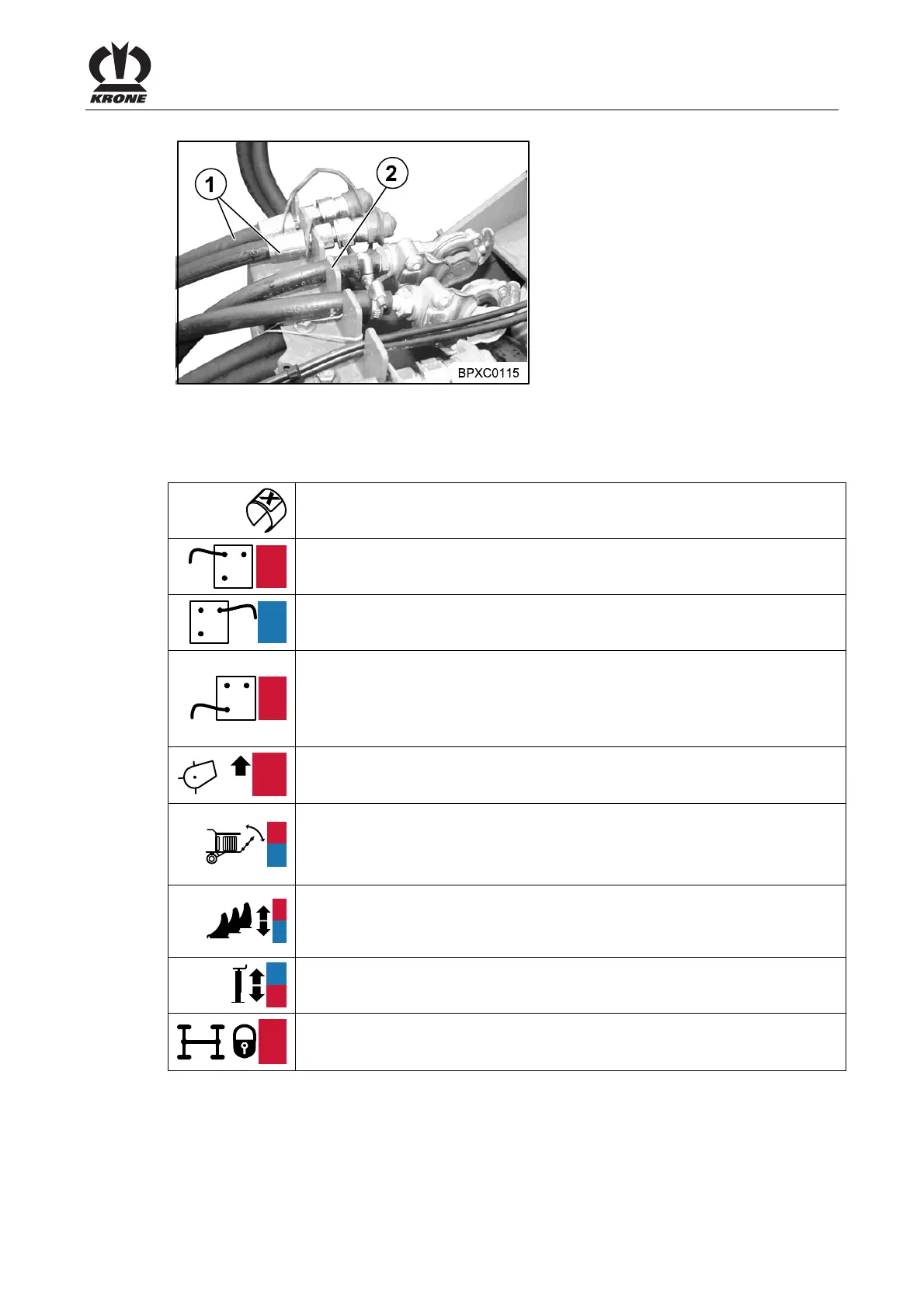

Fig. 21
Pos: 20.23 /BA/Inbetr iebnahme/Großpac kenpresse/Hydraulikan schluss allgemein Bi G Pack @ 17\mod_123633229 4760_78.doc @ 204851
A differing number of control units are required on the tractor to operate the machine (according
to the equipment).
1
P
Connection for control block for the Comfort design
• Pressure line ((red 1) nominal width 15)
1
T
Connection for control block for the Comfort design
• Return line ((blue 1) nominal width 18)
3
LS
Connection for control block for the Comfort / Gamma design
• If required, couple load-sensing pipe - nominal width 12 - (red 3) to the
LS connection of the tractor (optional for Comfort design) (further
information can be obtained from the operating instructions provided by
the manufacturer of the tractor)
2
Single-acting control unit (red 2):
Pick-up lifting
4
4
Connection for medium design
Double-acting control unit (red 4 / blue 4)
• Roller chute / remaining bale ejector (pressure (red 4))
• Roller chute / remaining bale ejector (return (red 4))
5
5
Connection for medium design
Double-acting control unit (red 5 / blue 5)
Raise the blade bar (red 5)
Lower the blade bar (blue 5)
6
6
Double-acting control unit (red 6 / blue 6)
Raise the parking jack (red 6)
Lower the parking jack (blue 6)
7
Single-acting control unit (red 7)
Lock / release steering axle
Pos: 20.24 /BA/Inbetr iebnahme/Großpac kenpresse/Hydrauliksc hläuche ankuppeln @ 17\ mod_1236332484838_78. doc @ 204899
• Take the hydraulic hoses (1) out of their support (2) on the drawbar
• Remove the cover caps on the couplings of the hoses
• Thoroughly clean the plug-in connections of the hydraulic hoses before plugging them in
