8.2 ISOBUS short cut button
Pos: 22.1.10.2 /BA /Info-Center/CC- ISOBUS-T erminal/Module für Beipack/ISOBU S Short Cut B utton_2 Gefahr @ 4 6\mod_128 2643782875_ 78.doc @ 447376 @ @ 1
DANGER! – risk of injury by running machine!
Your machine supports the ISOBUS short cut button.
• By actuation of the ISOBUS short cut button (1) the machine functions are switched off in
order to be able to initiate a secure condition of the machine in hazardous situations.
Process oriented procedures perform to the end. Therefore, machine parts continue to
run after actuating the ISOBUS short cut button. This can lead to injuries
• The ISOBUS short cut button does in no case interfere with tractor functions, i.e. neither
universal shaft functions nor hydraulic functions will be affected in any way! Therefore,
the machine can continue to run after actuating the ISOBUS short cut button. This can
lead to injuries
Pos: 22.1.10.3 /BA /Info-Center/CC- ISOBUS-T erminal/Module für Beipack/ISOBU S Short Cut B utton_Swadro @ 65\mod_130 0789663448_78.d oc @ 586413 @ @ 1
When actuating the ISOBUS short cut button (1) of the terminal which is of the pushbutton
design, a stop command is sent to the ISOBUS. This command will be evaluated by your
connected ISOBUS- machine in order to initiate the accordant automatic measures in
hazardous situations if necessary.

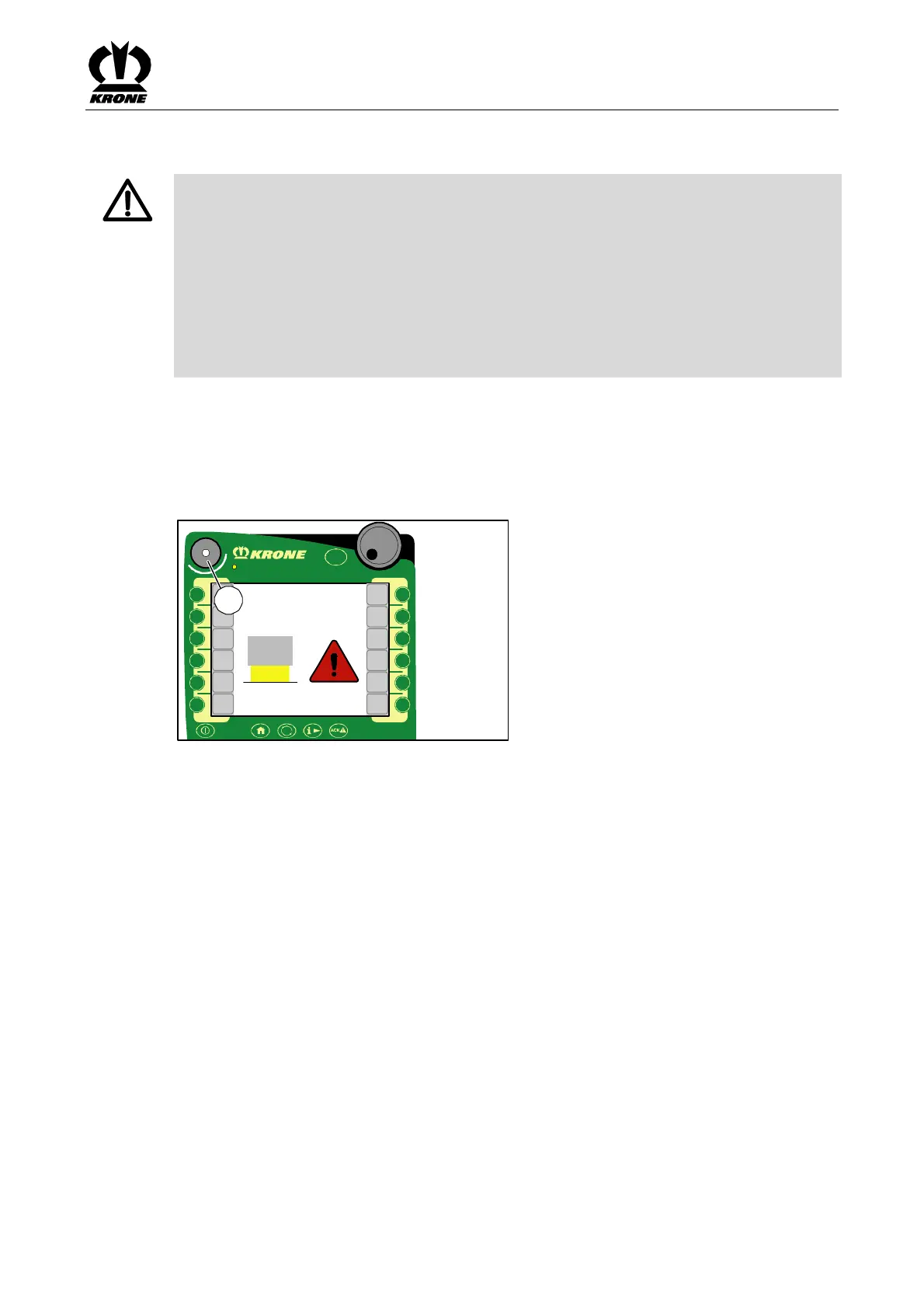

If the ISOBUS short cut button is actuated, the accordant alarm mask will be shown in the
display:
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11F11
F12
ESC
CC000070
ISB
1
Fig. 73
The functions listed in the following are blocked by the job computer on the machine
side.
• Lift / lower rotor is stopped
• Rotor float position will be deactivated
• Rotor height adjustment will be interrupted
