12.5 Auxiliary steering
Pos: 30.12.2 /B A/Bedienung /Sc hwader/Hilfslen kung/Gefahrhin weis Hilfslenku ng @ 61\mod_12 98441643272 _78.doc @ 5662 61@ @ 1
DANGER! – Road travel/lateral offset of the machine in relation to the tractor
Effect: Danger to life, injuries or damage to the machine.
• When you are driving on public roads, the auxiliary steering must be in the centre
position and the shut-off valve must be closed
Pos: 30.12.3 /B A/Bedienung /Sc hwader/Hilfslen kung/Einführte xtH ilfslenkung @ 38\mod_1266 393203251_7 8.doc @ 352171 @ @ 1
The auxiliary steering influences the turning circle of the swather. The auxiliary steering can be
used when manoeuvring the machine in the field or away from public roads.
Operating the control valve on the tractor turns the transport wheels further in one direction.
Pos: 30.12.4 /B A/Bedienung /Sc hwader/Hilfslen kung/Positions beschreibung @ 3 8\mod_126 6393284548_78.d oc @ 352195 @ @ 1
Pos. I (retracting the cylinder) = wheels swivel to the left
Pos. II (centre position)
Pos. III (extending the cylinder = wheels swivel to the right)
Pos: 30.12.5 /B A/Bedienung /Sc hwader/Hilfslen kung/Hilfslen kungi n Mittelpositi on verfahren @ 99\mod_1329 919172961_78. doc @ 885531 @ 3 @ 1
12.5.1 Move Auxiliary Steering to Centre Position
Fig. 138

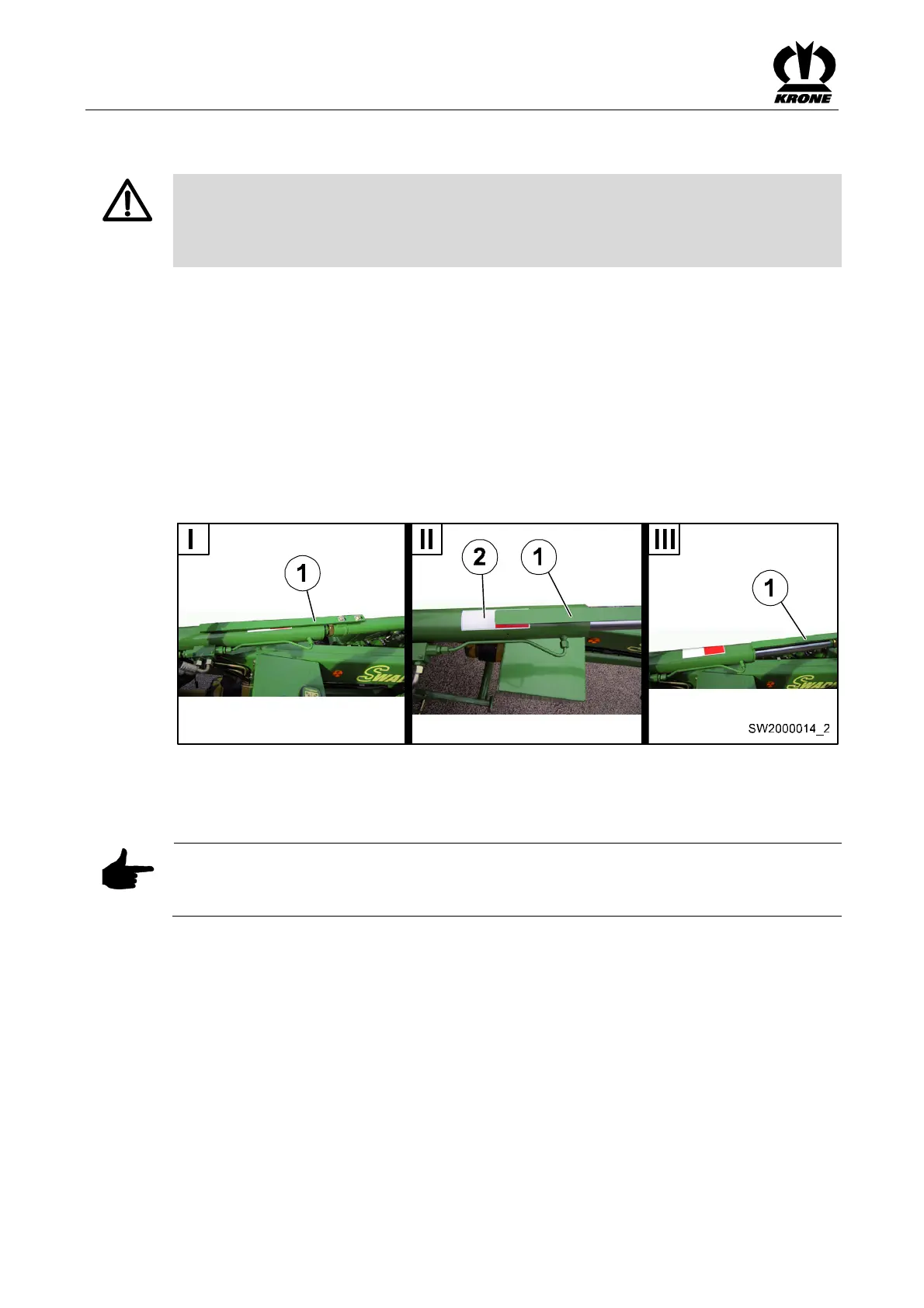

Move the cylinder by activating the control valve on the tractor until the display (1) is located
centered to the label (2 / Pos.II) (the transport wheels are located in centre position now).
Pos: 30.12.6 /B A/Bedienung /Sc hwader/Hilfslen kung/Hinweis – F ahren im Hangb ereich Hilfslenku ng @ 38\mod _12663954504 39_78.doc @ 352243 @ @ 1
Note – Travelling on an incline
If the machine starts to drift on an incline, the auxiliary steering can be activated to counteract
the drifting.
