Operation

199

Pos: 30.23 /BA/Be dienung /Sch wader/Zinken / Zin kenarme/Zi nkenschutze anbring en SW 200 0@ 22\mod_123 9780603941_ 78.doc @ 233035 @ 2 @ 1

12.10 Protecting the tine tips (transport position and swather switched off)

SW2000012

2 m

SW700007

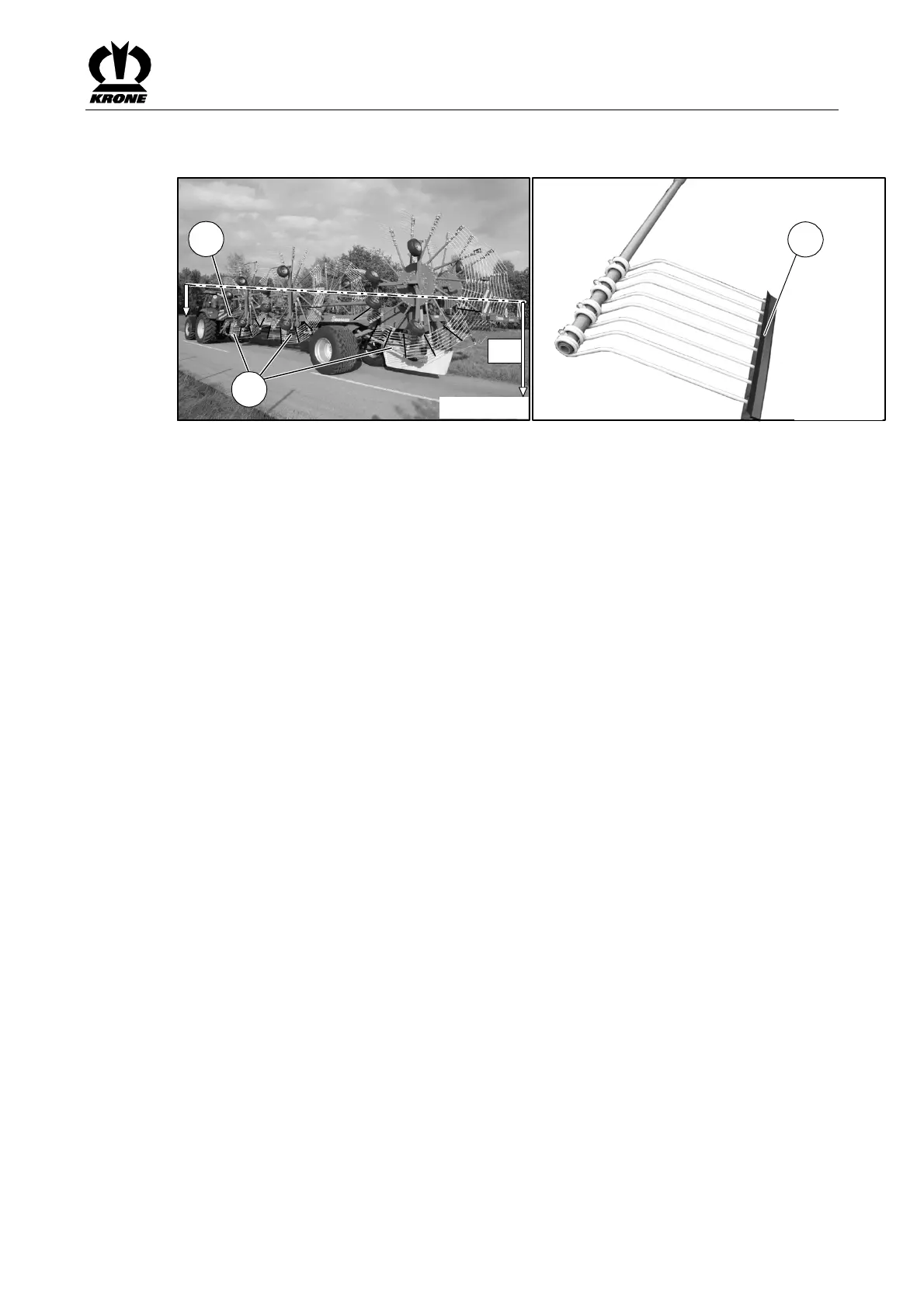

Fig. 141

The tines must be fitted with guards which are positioned at less than 2 m in transport position

or when the machine is switched off. The tine guards are located on the support (2).

• Connect the tine guards (1) onto the tines.
