Start-up
185
Pos: 26.13 /Überschrif ten/Überschrif ten 3/A-E/A nschluss der H ydraulikleitunge n@ 0\mod_1199 777037794_7 8.doc @ 3424 4@ 3 @ 1
10.2.2 Connecting the hydraulic lines
Pos: 26.14 /BA/I nbetriebnahme/ Schwader/Hydr aulikanschluss/H ydraulikansc hluss Bild Schwadr o 2000 @ 61\m od_12985609 41603_78.doc @ 567201 @ @ 1
1
2
SW2000004_1
LS
4
3

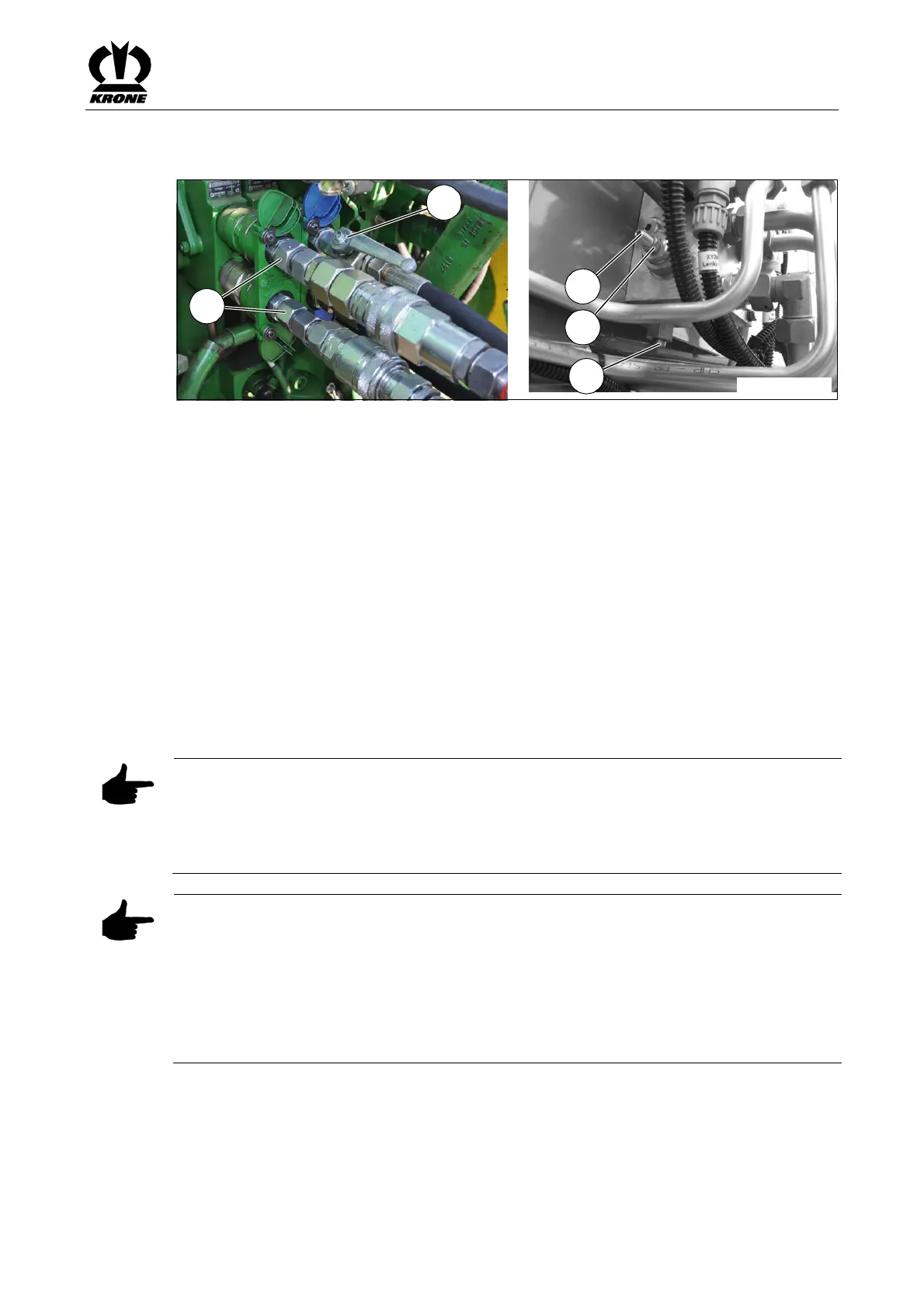

Fig. 127
Pos: 26.15 /BA/I nbetriebnahme/ Schwader/Hydr aulikanschluss/H ydraulikansc hluss Schwadro 2000 @ 61\mod_ 12988876709 78_78.doc @ 56 7740 @ @ 1
The following control units are required on the tractor to operate the machine:
Double-acting control unit (3) with free return line or single-acting with free return line:
Pressure line ((red 1) nominal width 15)
Return line ((blue 1) nominal width 18)
If necessary, couple load sensing pipe -nominal width 12- (red 3) to the LS connection of
the tractor (optional) (for more information, please refer to the operating instructions
provided by the manufacturer of the tractor)
Double-acting control unit (4) (red 2/blue 2):
Activate auxiliary steering
Take hydraulic hoses from the support on the frame.
Remove the cover caps of the hoses.
Clean the hydraulic hose plugs before connecting them
Connect hydraulic hoses.
Pos: 26.16 /BA/I nbetriebnahme/ Schwader/Hin weisH ydrauli kaufkleber beachte n@ 9\mod_1219 997531785_7 8.doc @ 1248 79@ @ 1
Note
Connect the hydraulic lines correctly
The hydraulic hoses are identified by coloured hose clips.
When connecting the hydraulic lines, observe the sticker for the tractor hydraulics (see
the "Safety" chapter: "Position of the general information labels on the machine").
Pos: 26.17 /BA/ Wartung/Load- Sensing/SW 140 0/Hinweis Load-S ensing Swadro 1 400 @ 5\mo d_121379147 9794_78.doc @ 89423 @ @ 1
Note
With closed (constant pressure or load sensing) hydraulic system and connected load-
sensing message line:
Before coupling, screw in the system screw (1) on the hydraulic block fully and secure with
counter nut (2).
With open (constant-current) hydraulic system and not connected load-sensing line:
The system screw (1) is preset in the factory. (The system screw (1) on the hydraulic block
must be screwed in up to the stop.)
