Commissioning
32
Pos: 14.13 /BA/I nbetriebnahme/ Schwader/Hin weisM aschine befindet sich in Tra nsportstellung @ 2\mod_120 2388231928_78.d oc @ 59050 @ @ 1
Note
The description below assumes that the
swather is in transport position, following final assembly.
Pos: 14.14 /BA/Ers tinbetriebna hme/Schwader/Allge meine Vorr aussetzung a mTra ktor (Kat. II u nd III) @ 21\m od_12391914 40533_78.doc @ 23 1556 @ 2 @ 1
5.3 Requirements on the tractor
The swather features a locating drawbar for the three-point linkage (Cat. II and Cat. III).
The tractor requires:
• Lower suspension arm Cat.II or Cat.III
• Dual-line compressed air braking system
• Hydraulic brake (optional)
• A single-acting hydraulic connection with free backflow and a double-acting hydraulic
connection or two double-acting hydraulic connections with a pressure-free backflow
connection
• Attach support for the electrical control terminal in the tractor cab (ensure that the control
terminal is in full view).
• Continuous power socket (ISO)
Pos: 14.15.1 /Üb erschriften/Üb erschriften 2/U-Z/ Vorbereitung ena m Traktor @ 2\mod_12023 63643678_78.doc @ 58694 @ 2 @ 1
5.4 Preparations on tractor
Pos: 14.15.2 /Üb erschriften/Üb erschriften 3/U-Z/U nterlenker ei nstellen @ 6\mod _1214454896 135_78.doc @ 9 4186 @ 3 @ 1
5.4.1 Adjusting the lower suspension arms
Pos: 14.15.3 /B A/Erstinbetriebna hme/Schwader/S wadro 807_81 0_907/Bild_Aus hubvorrichtung Tr aktor @ 2\m od_120236438 4960_78.doc @ 58789 @ @ 1
KS-0-030

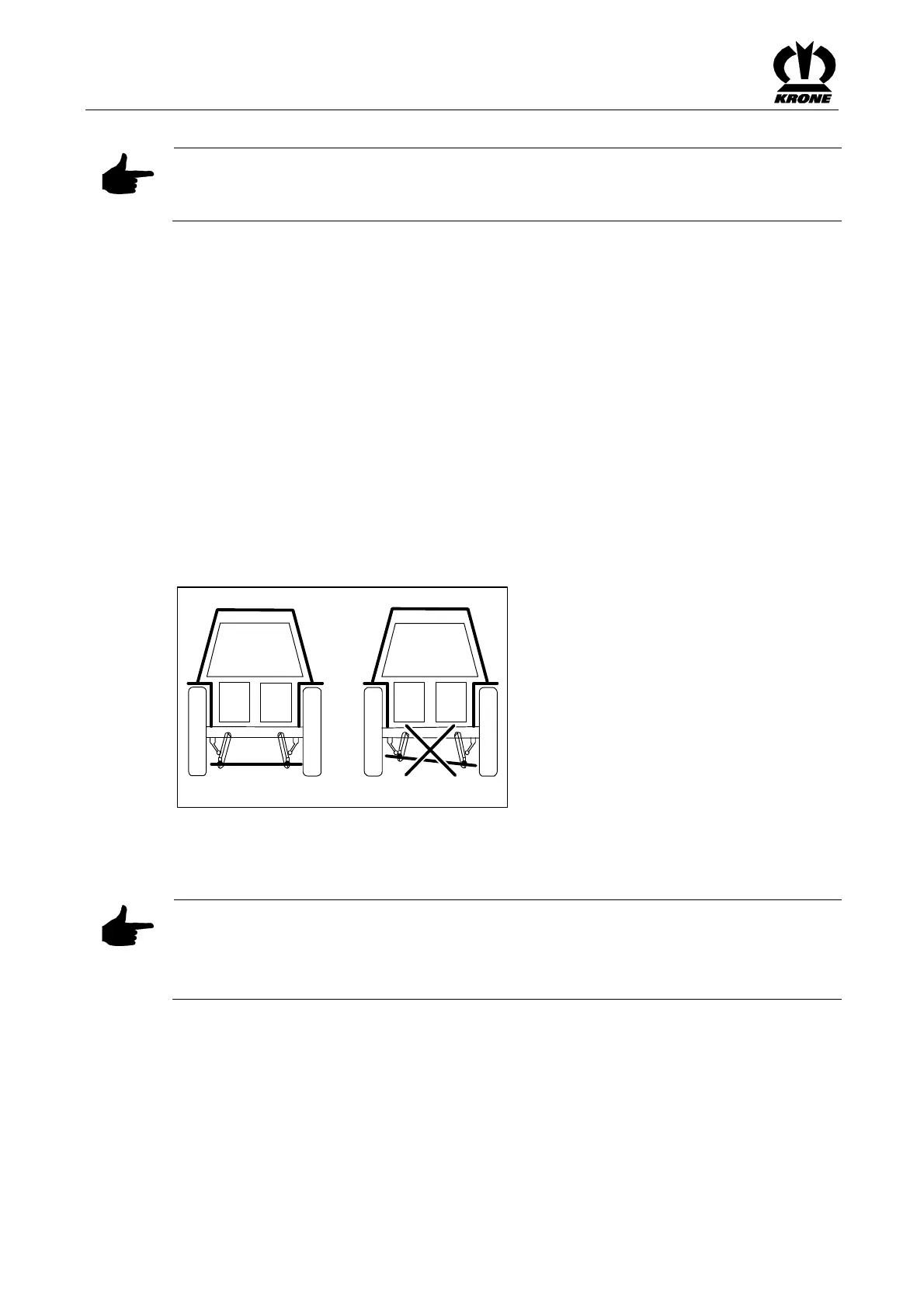

Fig. 7
Pos: 14.15.4 /B A/Erstinbetriebna hme/Schwader/S wadro 807_81 0_907/Vorbereit ung an Tra ktor_Text KAT II und III @ 21\mod_ 1239191597627 _78.doc @ 23 1580 @ @ 1
The machine is equipped with Cat. II and III trunnions for three-point hydraulics.
Pos: 14.15.5 /B A/Erstinbetriebna hme/Schwader/S wadro 807_81 0_907/Hinweis U nterlenker @ 2\mod_12023641 26303_78.doc @ 58751 @ @ 1
Note
The tractor lower suspension arms must always be installed so that the lifting points of the
lower suspension arms are all at the same distance from the ground. In order to prevent
swivelling of the machine during transport or operation, the lower suspension arms must be
secured by limiting chains or bars.
