KRONE ISOBUS-Terminal CCI 100
117
Pos: 22.1.16 /B A/Info-Center/CC-I SOBUS-Termi nal/Multifun ktionshebel an CCI T erminal anschli eßen @ 96\ mod_1328802962 527_78.doc @ 8 22629 @ 3 @ 1
8.2.3 Connecting the Multi-Function Lever to the CCI Terminal
CC000546
5
1
2
9
3
4
7
8
6

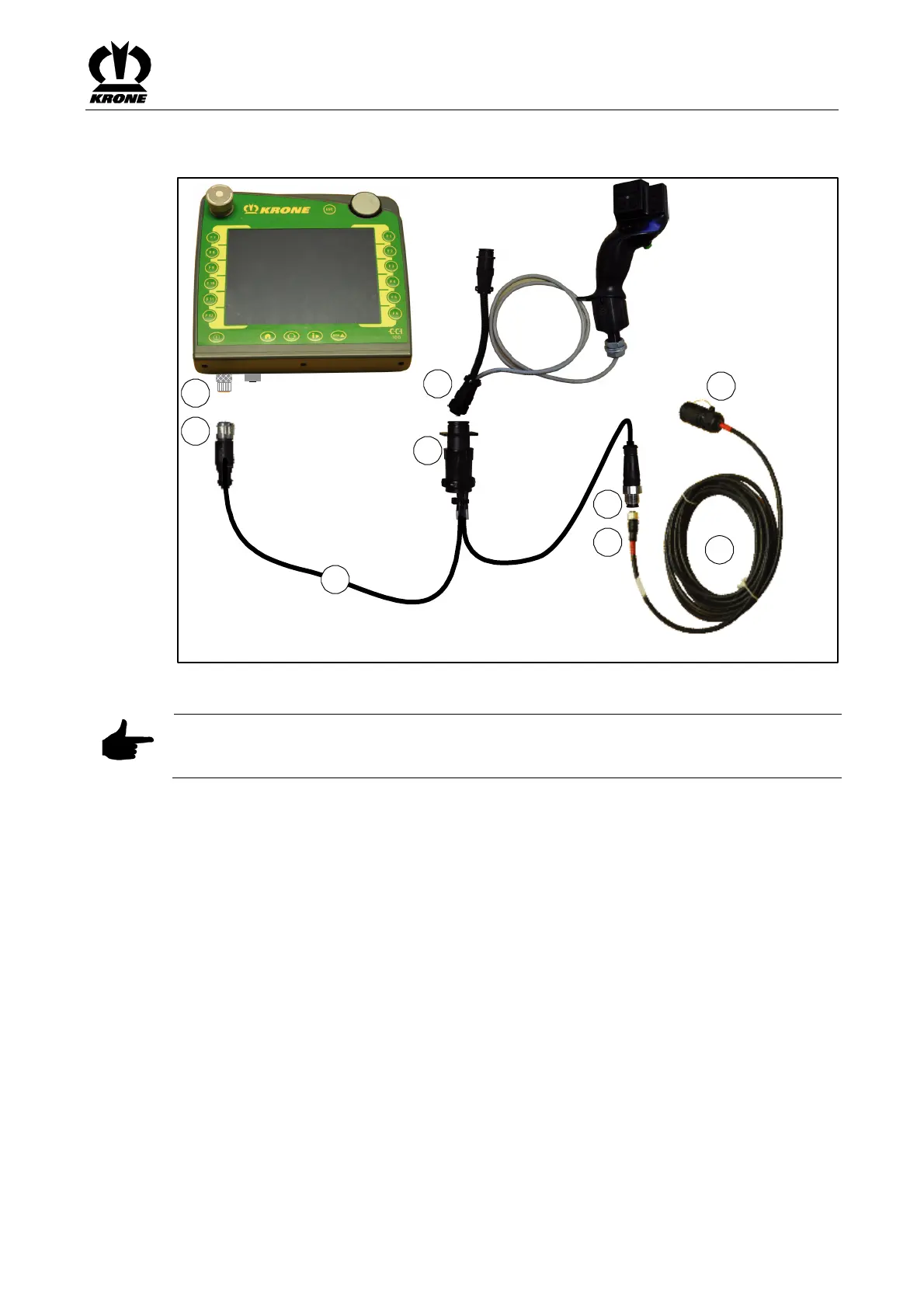

Fig. 77
Note
The terminal is connected to the multi-function lever via a special cable set (9) which can be
ordered by stating the Krone product no. 20 081 676 0.
Connect plug (2) of cable set (9) with the socket (1) (CAN1-IN) of the terminal
Connect socket (3) of cable set (9) with the plug (4) of the cable set (5)
Connect ISO plug (8) (9-pole) of cable set (9) with the ISO socket (7) (9-pole) of the multi-
function lever
Connect plug (6) (7-pole) of cable set (5) with the socket (7) (7-pole) of the machine
