8.6.4 Raising the Rotors to Headland Position
Pos: 22.1.37.20 / BA/Info-Center/CC- ISOBUS-Ter minal/CCI-S wadro/Swadro 1 400/Gefahr Schn ellstop @ 56\m od_12953628 73734_78.doc @ 542364 @ @ 1
DANGER! - Before swivelling the machine, ensure that nobody is within the swivel
range.
Effect: Danger to life or serious injuries.
• Instruct persons to leave the danger zone.
• If required, switch off the machine immediately.
• If there is an imminent danger, press the function key for to stop all functions which
are currently being performed.
Pos: 22.1.37.21 / BA/Info-Center/CC- ISOBUS-Ter minal/CCI-S wadro/Swadro 2 000/Grundbild 1 Kr eiselaushebu ng/Grundbild Kreis elaushebung Kreisel senke n/ h eben Bild @ 88\mod_132143 3784638_78. doc@ 753545 @ @ 1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11F11
F12
F1
CCS00055

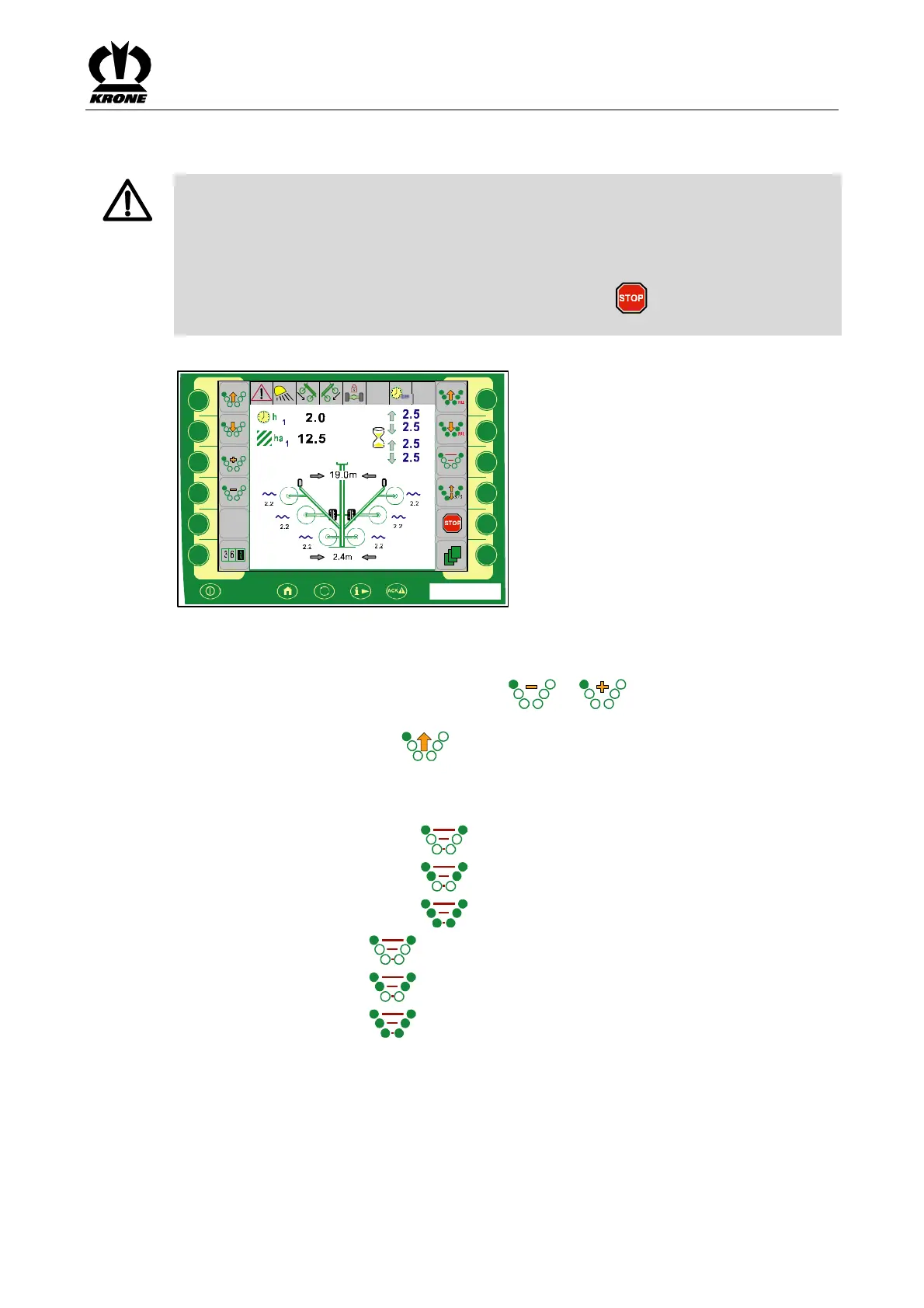

Fig. 91
Pos: 22.1.37.22 / BA/Info-Center/CC- ISOBUS-Ter minal/CCI-S wadro/Swadro 2 000/Grundbild 1 Kr eiselaushebu ng/Anheben einzel ner Kreisel i n die Vorge wendestellung S W 2000 @ 88\mod_ 13214343032 44_78.doc @ 753770 @ 4 @ 1
8.6.4.1 Raising Individual Rotors to the Headland Position
The first time the corresponding function key for or is pressed, the corresponding
rotor is preselected.
Briefly press the function key for to raise the preselected rotor.
Pos: 22.1.37.23 / BA/Info-Center/CC- ISOBUS-Ter minal/CCI-S wadro/Swadro 2 000/Grundbild 1 Kr eiselaushebu ng/Kreisel paar weise in die Vorge wendestellu nga nheben @ 8 8\mod_13214 34344213_78.doc @ 753797 @ 4 @ 1
8.6.4.2 Raising Rotors to the Headland Position in Pairs
• Pressing the function key for once raises the front rotors
• Pressing the function key for again raises the middle rotors
• Pressing the function key for again raises the rear rotors
• If the function key for is pressed a fourth time, the front rotors are lowered again
• If the function key for is pressed a fifth time, the middle rotors are lowered again
• If the function key for is pressed a sixth time, the rear rotors are lowered again
