8.11.3 Menu 4-4 „Manual actuator test“
Pos: 22.5.55 /B A/Info-Center/Gr oßpackenpress e/Hauptmenüs/Ha uptmenü 4 Ser vice/Menü 4-4 A ktortest Han dEi nführungstext @ 44\mod_1 275637366437_ 78.doc @ 393405 @ @ 1
The actuator test is used to test the actuators installed on the machine. An actuator can only be
tested if power is flowing through it. In the manual actuator test the actuator must therefore be
controlled manually for a short time to be able to determine if there are any errors in the
actuator system.
Pos: 22.5.56 /B A/Info-Center/Gr oßpackenpress e/Hauptmenüs/Ha uptmenü 4 Ser vice/Menü 4-4 A ktortest Han dA chtung @ 44\ mod_12756379 29203_78.doc @ 393455 @ @ 1
CAUTION! - Unexpected actions on the machine.
The P.T.O. shaft must not be turning during the actuator test. The tractor hydraulics must be
deactivated.
Pos: 22.5.57 /B A/Info-Center/CC-I SOBUS-Termi nal/CCI-Swa dro/Swadro 2000/Ha uptmenüs/H auptmenü 4 Ser vice/Menü 4-4 Aktortest Bild @ 8 9\mod_13221 15703581_78.d oc@ 760152 @ @ 1

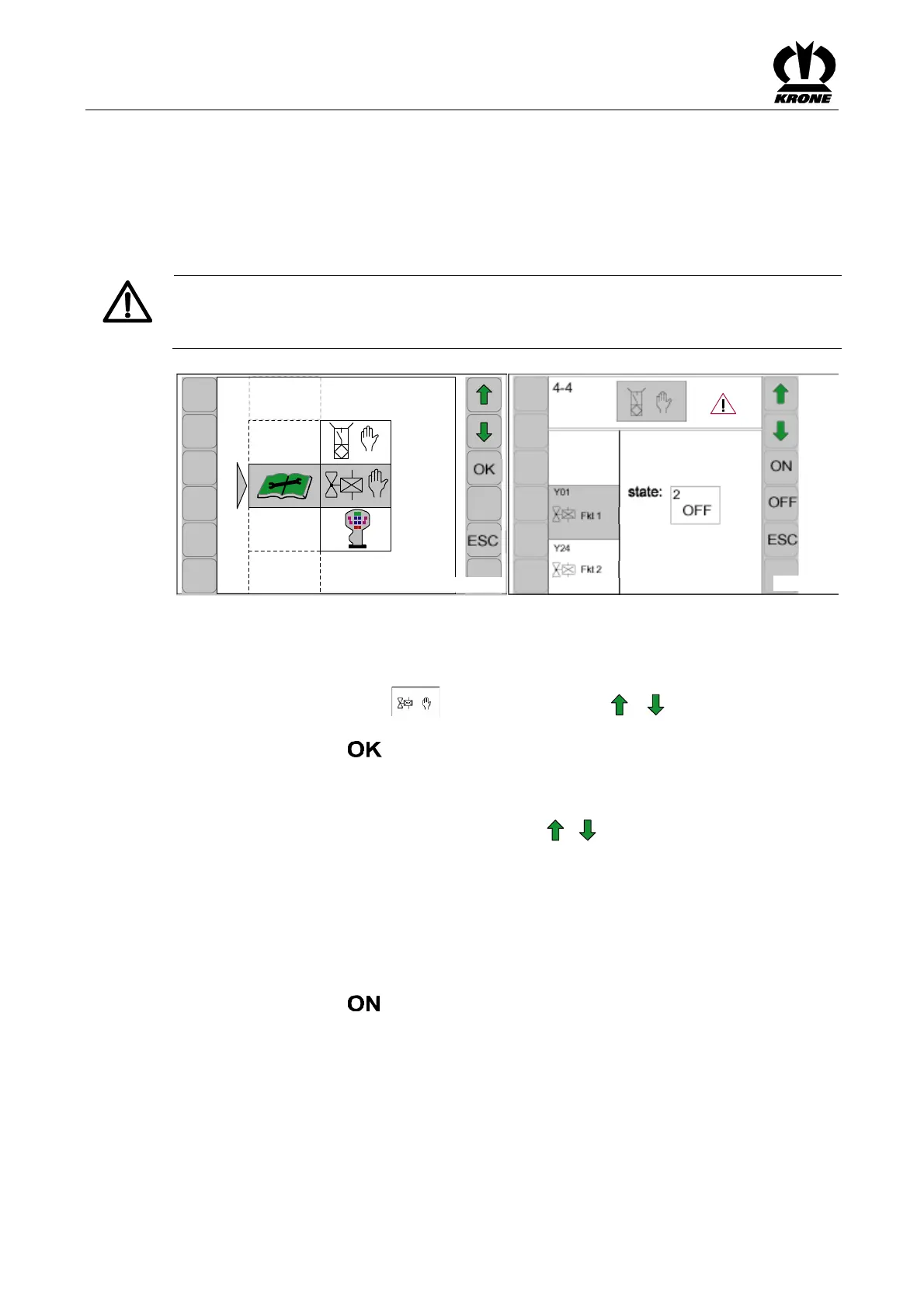

CCS00079
4-4
4-4
CCS00080
Fig. 112
Pos: 22.5.58 /B A/Info-Center/CC-I SOBUS-Termi nal/CCI-BiG Pack/Hauptmenüs/H auptmenü 4 S ervice/Menü 4-4 Aktortest Hand M enü aufrufen / A ktor wählen @ 44\mod_127 5888726125_78.d oc @ 393585 @ @ 1
Calling the menu
Main menu 4 "Service" is called.
• You can select menu 4-4 by pressing function key or . The symbol is shown in
reverse colors
• Press function key
The display shows menu 4-4 "Manual actuator test".
Selecting the actuator
• Select the actuator by pressing the function key or
The selected actuator is displayed inversely.
Pos: 22.5.59 /B A/Info-Center/CC-I SOBUS-Termi nal/CCI-BiG Pack/Hauptmenüs/H auptmenü 4 S ervice/Diagnos e digitale A ktoren @ 44\mod _1275889088109_ 78.doc @ 3936 10 @ @ 1
Diagnostics – digital actuators
Errors are only displayed if the actuator is turned on and a test is possible for the actuator (see
the table called "Possible digital actuators"). The actuators can also be checked on the LED at
the plug, if necessary.
• Press function key
