6.9.2 Rotor height automatic mode
STOP
2.5
12.5
h
ha
2,2 1,8
2,2 2,2
2,2
2
2
5 6
7
8
B C D
SW2000037
M M
M
2,2
1,8m
15,1m
STOP
2.5
12.5
h
ha
2,2 2,2
2,2 2,2
2,2
2
2
5 6
7
8
B C D
M M
M
2,2
1,8m
15,1m
1

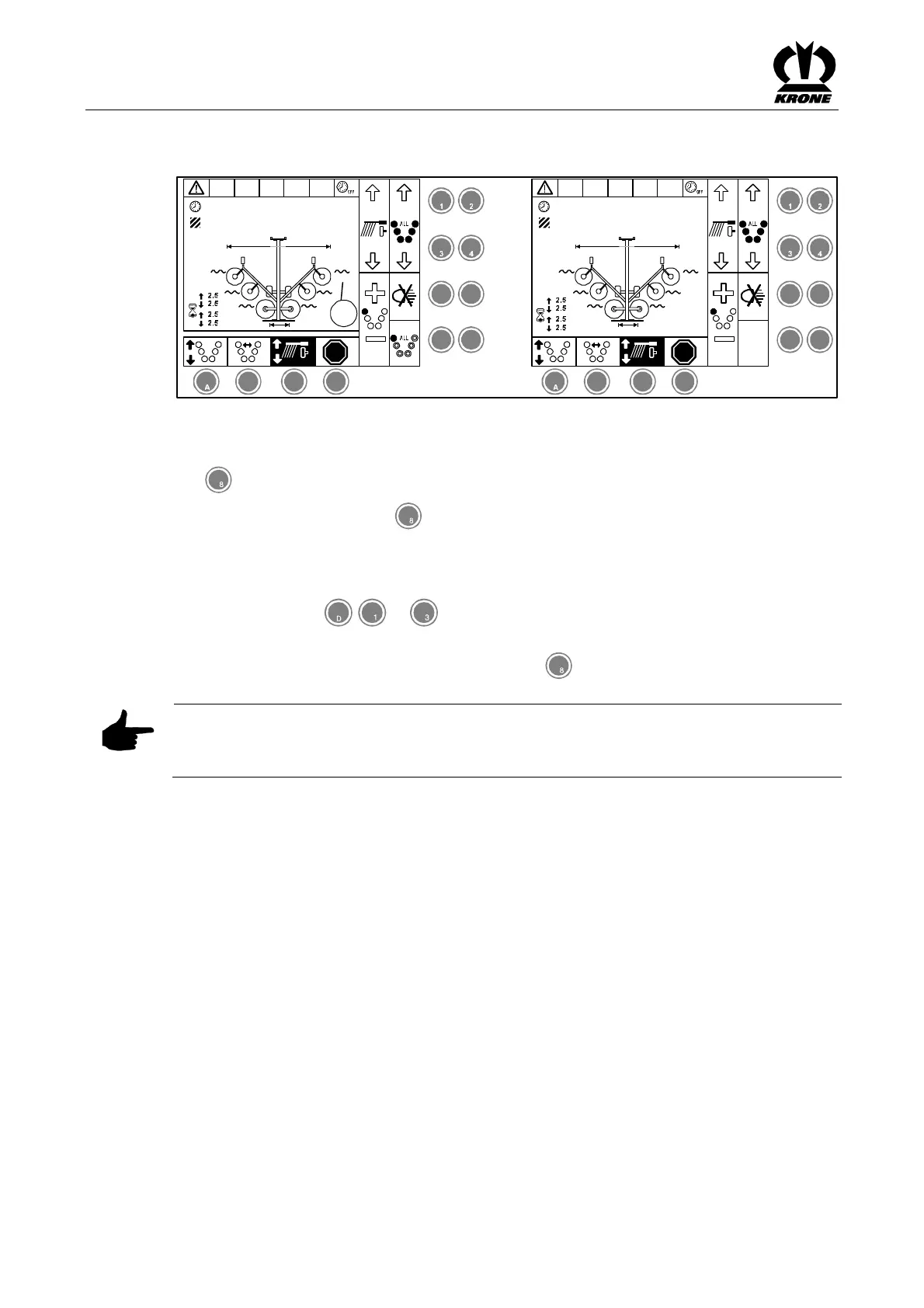

Fig. 33
The rotor height automatic mode monitors the working height of all rotors to each other. If the
raking height of at least one rotor deviates from the selected rotor (master rotor), the icon for the
key will appear on the display (depending on the pre-selected rotor).
By pressing the associated key for the softkey for about 1.0 second, the working height of
all deviating rotors will be adapted to the working height of the master rotor.
• The flashing numerical value (1) indicates on which rotor the adjustment of the working
height is in progress.
• Press the key ( , or ) to abort the process at any time.
• After all rotors have been adjusted to the working height of the master rotor, the
corresponding icon for the key is extinguished. .
Pos: 16.22 /BA/I nfo-Center/Schw ader/Bedienein heit- Komfort/S wadro 1400/Gru ndbild 4/4 Arbeits höhe/Kreiselh öhenautomati k/Hinweis auf Me nü 1-2 Nullabgl eich Kreiselh öhe @ 9\mod_12 21038826809 _78.doc @ 1314 29@ @ 1
Note - Zero calibration rotor height
For more information, see chapter (Menu 1-2 "Zero calibration rotor height" (rotor height display
option)).
