3.7 Machine overview
Pos: 9.18 /BA/Einl eitung/Maschin enübersicht/Sc hwader/Maschi nenübersicht S W 2000 @ 39\m od_1267534448 137_78.doc @ 355950 @ @ 1
SW2000067
1
2
3
4
4
5
10
15
1916
8 9
17 18
16
7
6
7
14
12
11
11
13
10
10
10
10
10
11
11
11
11
15
15
15
15
15
16
16
16
16
17
19
19
20
21 22

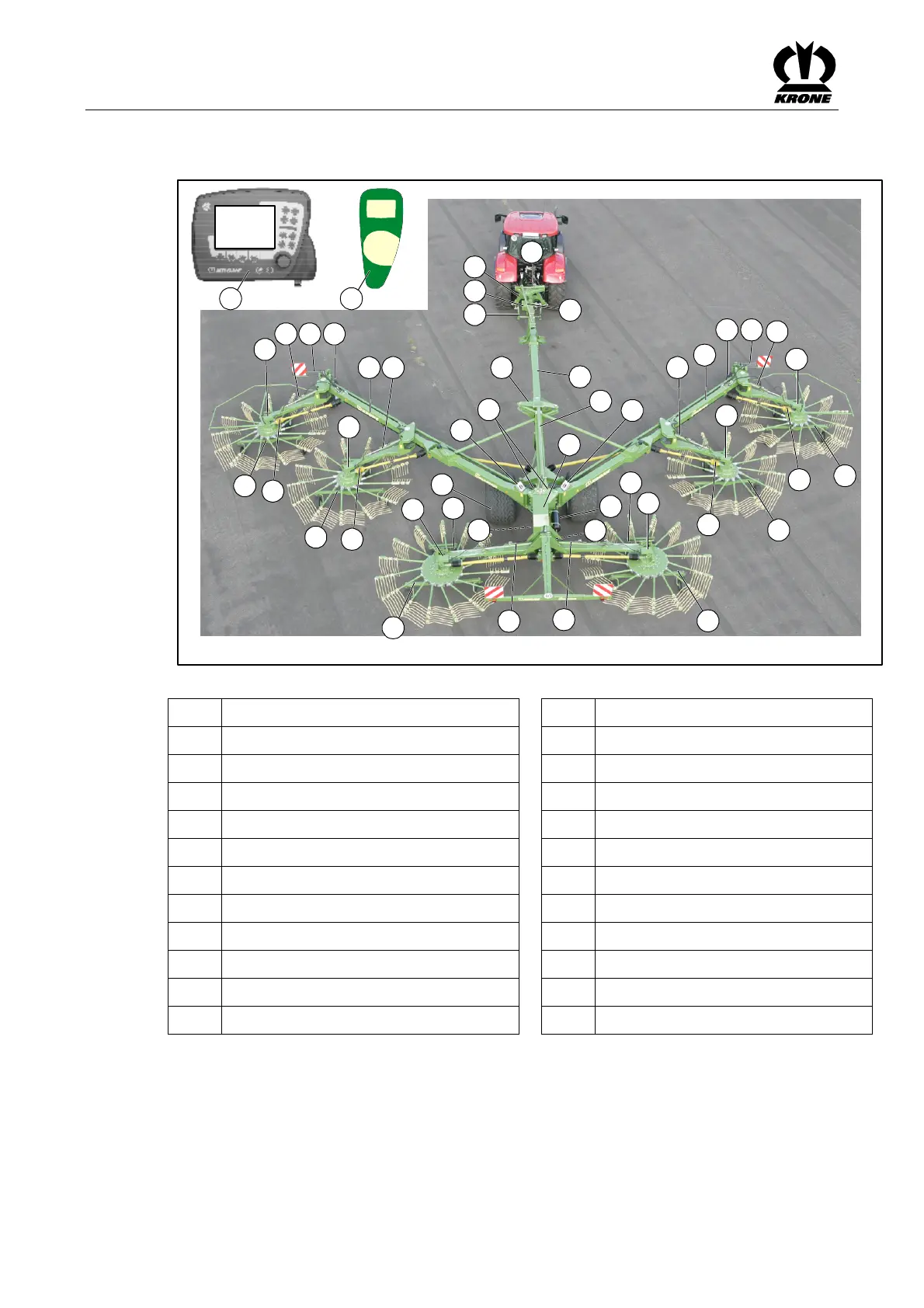

Fig. 2
Pos. Designation Pos. Designation
1
Parking support 12 Compressed-air reservoir
2
Electromagnetic valve block I 13 Electromagnetic valve block II
3
Hydraulic cylinder self steer 14 Tyres/running gear
4
Hydraulic cylinder auxiliary steering 15 Rotor running gear
5
Main frame 16 Rotor lifting cylinder
6
Hydraulic cylinder for working width 17 Pivoting arm
7
Wheel chocks 18 Travelling carriages
8
Right supporting wheel 19 Hydraulic cylinder swath width
9
Tine guards 20 Hydraulic cylinder parallel adjustment
10
Motor for "adjusting the raking height" 21 Comfort control unit
11
Cardan shaft (overload protection) 22 Control unit - auxiliary control
