Control Unit – Auxiliary Control
104
Pos: 20.9 /BA/In fo-Center/Sch wader/Bedieneinh eit- Komfort/SW 2 000/Zusatzb edienung/Betri ebsbereitschaft Zu satzbedienung SW 2000 @ 2 3\mod_12403 92733505_78.doc @ 239620 @ 2 @ 1
7.3 Operational Readiness
SW2000054

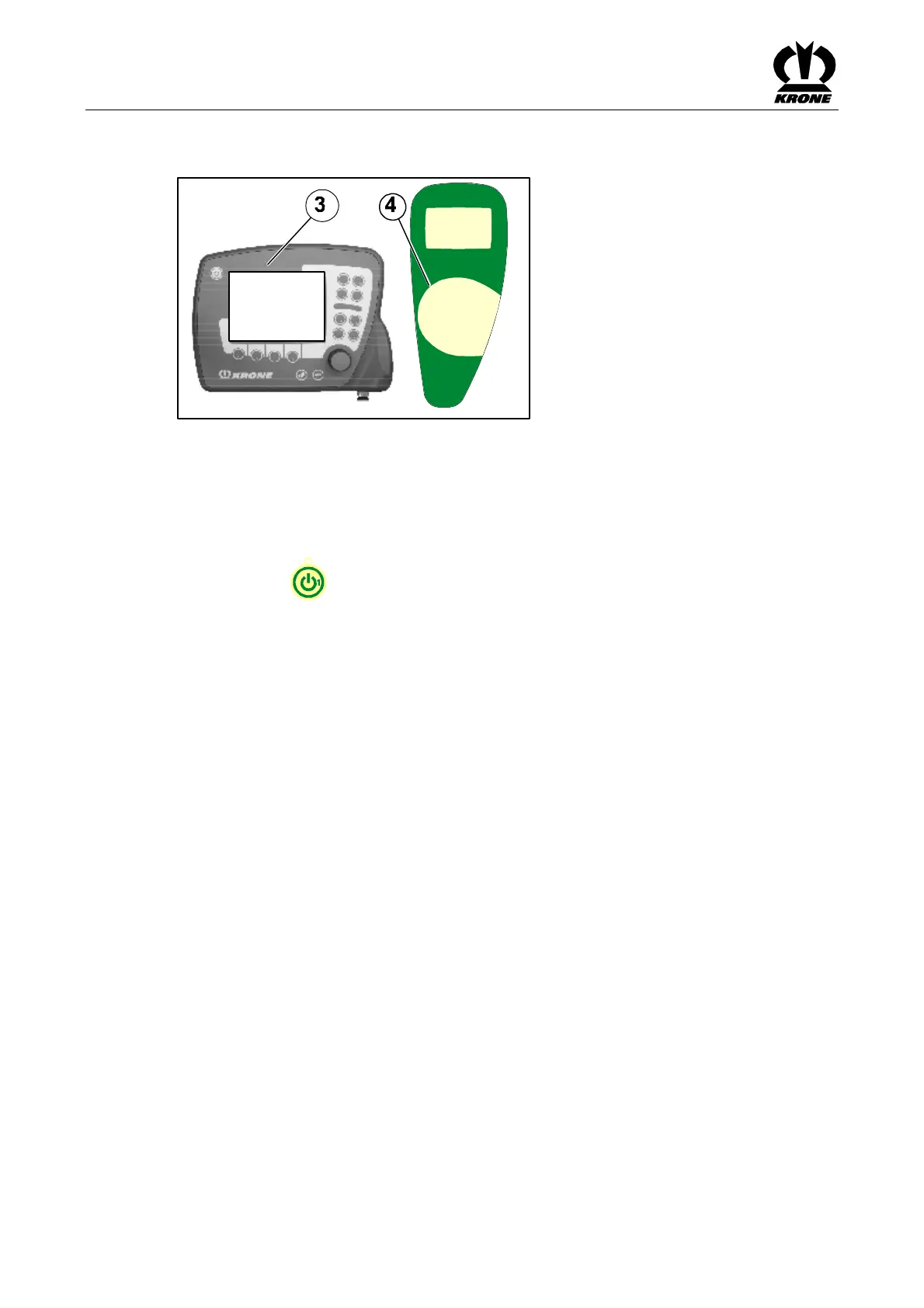

Fig. 66
The control unit (4) is only possible in combination with the control unit (3). The control unit (3)
must be switched on so that power is supplied to the control unit (4)! Once the control unit (4)
has been activated, all functions that can be accessed from control unit (4) are blocked in
control unit (3).
• Turn on the control unit (3) at the main switch.
• Press the key
A brief self-test follows provided the power supply has been properly connected. All pilot lamps
(LED on) on the control unit (4) are briefly lit and a horn sounds a short signal.
