9.1 Attaching the ISOBUS terminal
3
4
5
7
6
1
2

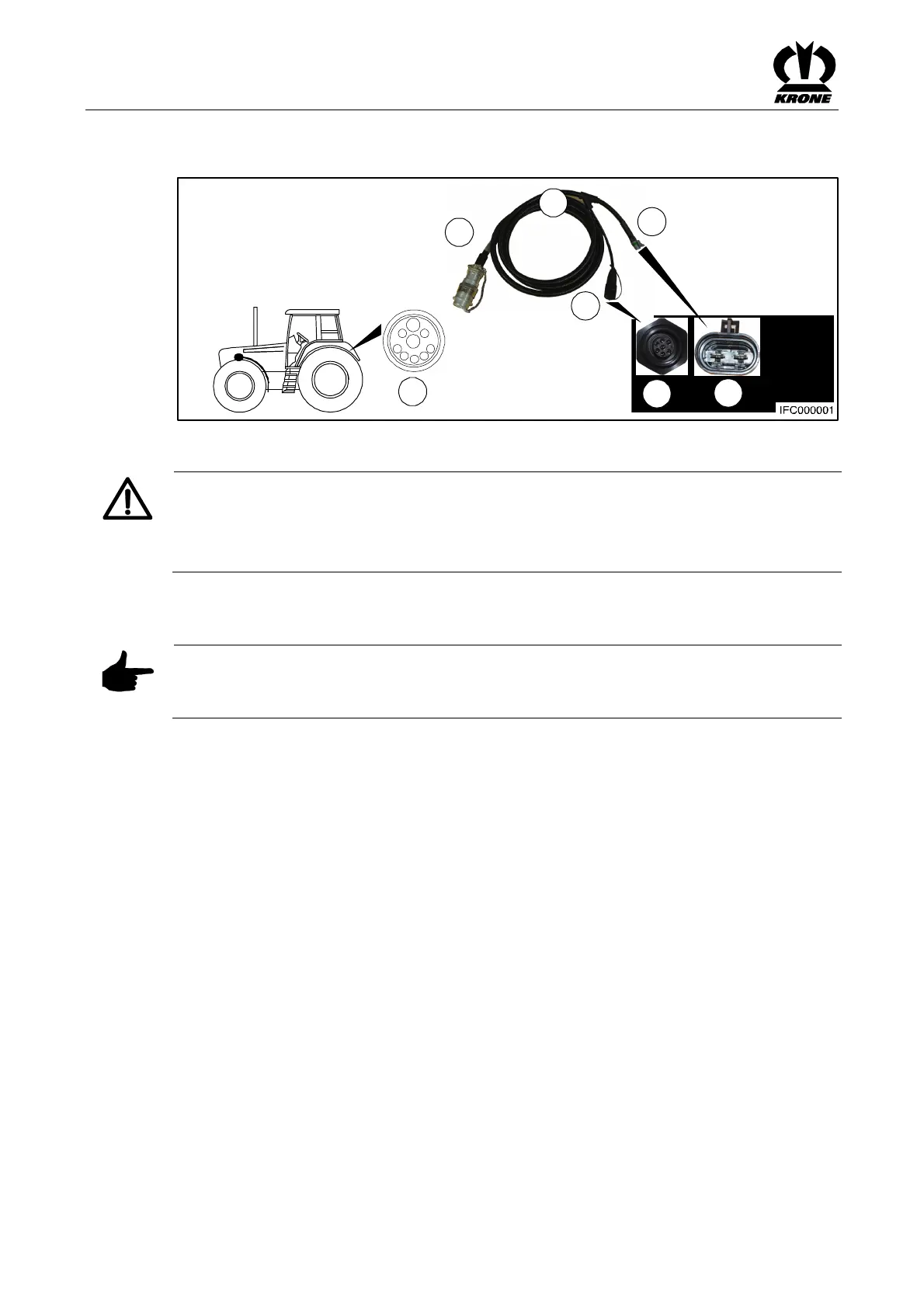

Fig. 120
CAUTION!
Failure of control unit.
When attaching the control unit, take care that the connection cables are not stretched and
cannot come in contact with the tractor wheels.
9.1.1 Connection terminal to tractor
Note
For further details on the attachment consult the operating instructions of the ISOBUS terminal
manufacturer.
9.1.2 Connection tractor to machine
• Connect ISO-plug (3) (9-pole) of cable set (1) with outer ISO-socket (2) (9-pole) on tractor
side
• Connect plug (4) (7-pole) of cable set (1) with socket (5) (7-pole) of the machine
• Connect plug (6) (2-pole) of cable set (1) with socket (7) (2-pole) of the machine
