KRONE operation terminal Gamma
57
Pos: 16.19.1 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /Swadro 1400/Gr undbild 4/4 Arb eitshöhe/Übersc hrift Grundbil d„Ar beithöhe“ @ 9\mod_12210 28453903_78.d oc@ 131178 @ 2 @ 1

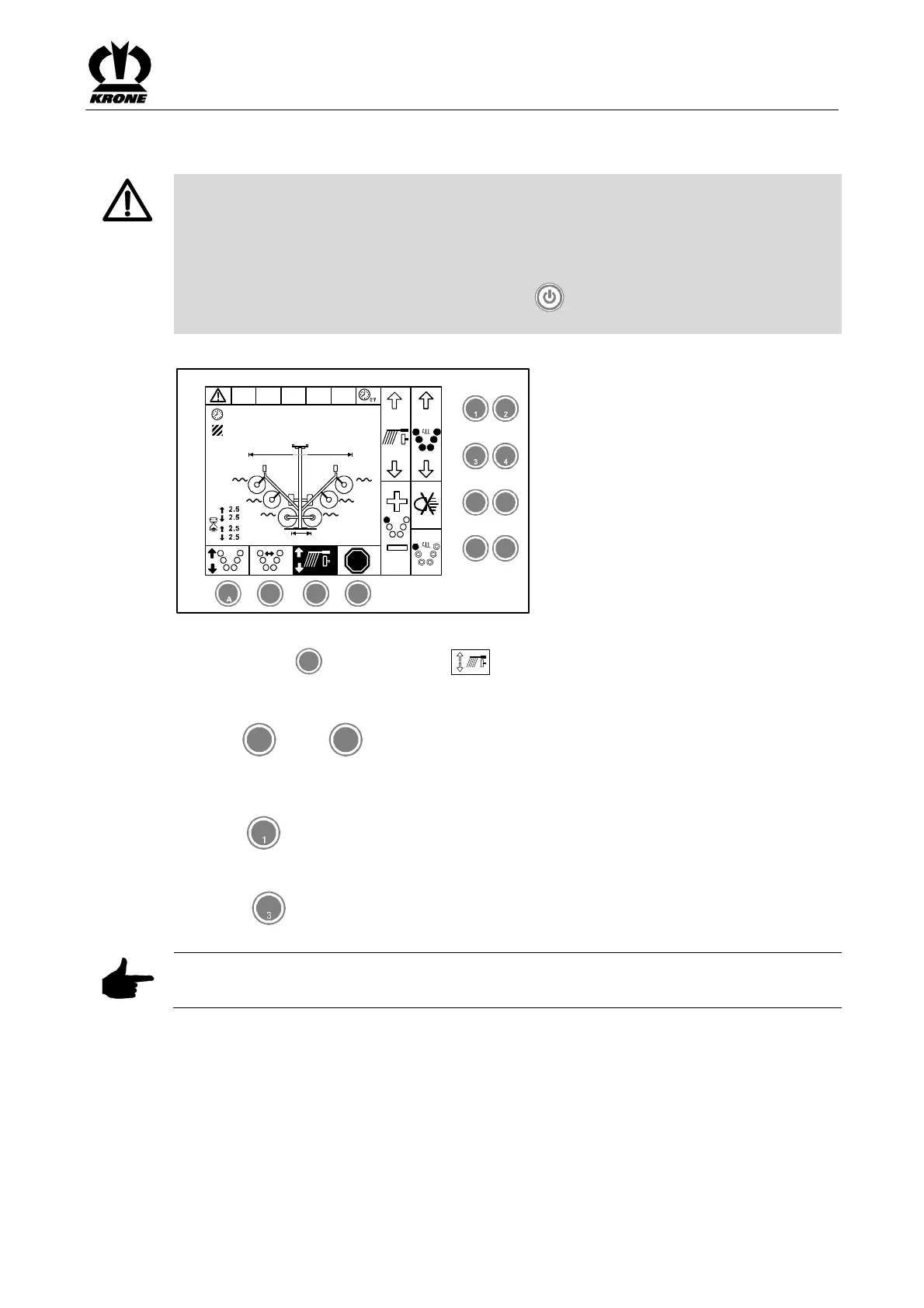

6.9 Basic screen "Working height"
Pos: 16.19.2 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /Gefahr Schnellst op durch EIN/ AUS Taste @ 3 6\mod_12632 76960200_78.d oc @ 338506 @ @1
DANGER! Before swivelling the machine, ensure that nobody is within the swivel
range.
Effect: Danger to life or serious injuries.
Instruct persons to leave the danger zone.
If required, switch off the machine immediately.
If there is an imminent danger, press the key (ON/OFF) on the control unit to stop
all functions which are currently being performed.
Pos: 16.19.3 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /SW 2000/Gru ndbild 3 Arbeitsh öhe/Grundbild „Arb eitshöhe“ Bild SW 2000 @ 2 3\mod_1240238 265755_78.d oc @ 236958 @ @ 1
STOP
2.5
12.5
h
ha
1,8 2,2
2,2 2,2
2,2
2
2
5 6
7
8
B C D
SW2000036
M M
M
2,2
1,8m
15,1m
Fig. 32
Pos: 16.19.4 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /SW 2000/Gru ndbild 3 Arbeitsh öhe/Durch T asteC das Grundbild „Arbeitshöhe“ a ufrufen @ 23\ mod_12402380 13193_78.doc @ 236928 @ @ 1
Pressing the key
C
under the softkey brings up the basic screen "Working height".
Pos: 16.19.5 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /SW 2000/Gru ndbild 3 Arbeitsh öhe/Arbeitsh öhe der Kreisel ein stellen Sw 14 00 @ 23\mod_12 40239182333 _78.doc @ 23 7009 @ 3 @ 1
6.9.1 Adjusting the Working Height of the Rotors
Press the
5
key or
7
key to select the rotor. Only one rotor can ever be selected at a
time.
To increase the working height:
Press the key
To reduce the working height:
Press the key
Note
The raking height should be adjusted during use or in headland position.
Pos: 16.20 /BA/--- --Seitenumbruc h------ @ 0\mo d_119617531 1226_0.doc @ 41 65 @ @ 1
