Maintenance - Brake System
233
Pos: 40.43.4 /Üb erschriften/Üb erschriften 2/K-O/ Luftfilter für Rohrl eitung @ 6\ mod_1214887444 113_78.doc @ 9 6605 @ 2 @ 1
19.1 Air Filter for Pipe
Pos: 40.43.5 /B A/Wartung/Bre msanlage/Luftfilter/ Luftfilter für R ohrleitung Bild SW1 400 @ 6\mo d_121488749 1754_78.doc @ 96671 @ @ 1
2
SW1350-037
1 2 3 4 5 6 7

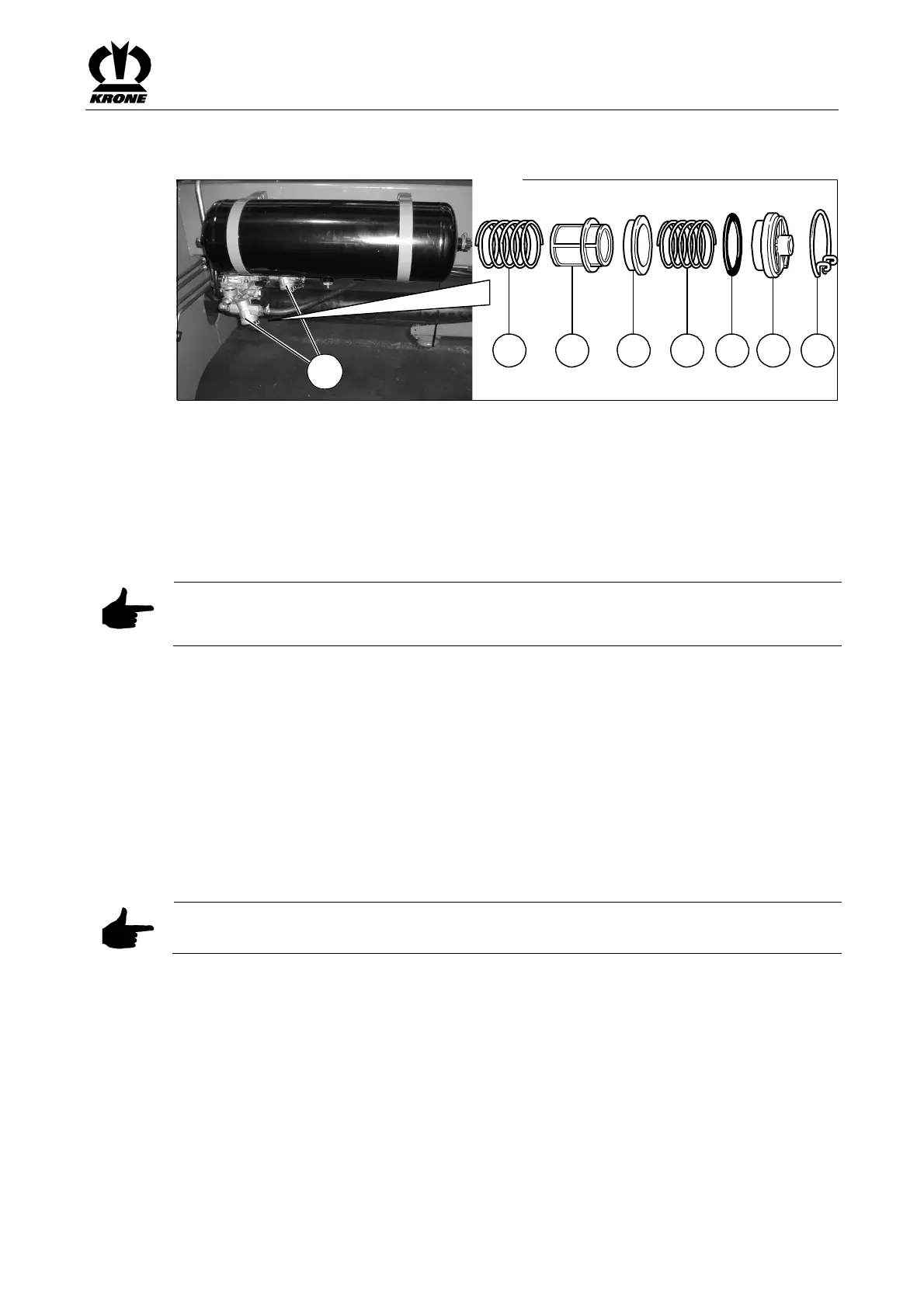

Fig. 165
Pos: 40.43.6 /B A/Wartung/Bre msanlage/Luftfilter/ Luftfilter für R ohrleitung Aufzä hlung @ 6\ mod_121488802823 8_78.doc @ 9 6691 @ @ 1
(1) Spring (4) Spring (7) Clasp locking ring
(2) Filter (5) Sealing ring
(3) Spacer (6) Cover cap
Pos: 40.43.7 /B A/Wartung/Bre msanlage/Luftfilter/ Luftfilter für R ohrleitung Te xt@ 6\mod_121 4889958145_78.d oc @ 96731 @ @ 1
The air filter cleans the compressed air and protects the brake system from malfunctions.
Note
The brake system is ready for operation even when the filter insert is clogged in both directions
of flow.
Removing the air filter
• Loosen the nut (2).
• Rotate the air filter (1).
• Loosen the clasp locking ring (3).
• Remove the filter insert.
Maintenance of the air filter
Clean the air filter before the beginning of the season.
Installation of the air filter
Installation is in reverse order to removal.
Note
Observe the correct sequence when assembling the filter insert.
