KRONE operation terminal Gamma
52
Pos: 16.8.19 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /Swadro 1400/Gr undbild 1/4 Kreis elaushebung/Ü berschrift An heben der Kreis el in die Vorge wendestellung @ 6\mod_121514 8823920_78.doc @ 99735 @ 3 @ 1
6.7.4 Raising the Rotors to Headland Position
Pos: 16.8.20 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /Gefahr Schnellst op durch EIN/ AUS Taste @ 3 6\mod_12632 76960200_78.d oc @ 338506 @ @1
DANGER! – Before swivelling the machine, ensure that nobody is within the swivel
range.
Effect: Danger to life or serious injuries.
• Instruct persons to leave the danger zone.
• If required, switch off the machine immediately.
• If there is an imminent danger, press the key (ON/OFF) on the control unit to stop
all functions which are currently being performed.
Pos: 16.8.21 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /SW 2000/Gru ndbild 1 Kreisel aushebung/Grun dbild „Kreiselaush ebung“ Bild S W 2000 @ 22\ mod_1240225 229536_78.doc @ 236351 @ @ 1
STOP
2.5
12.5
h
ha
2,2 2,2
2,2 2,2
2,2
2
2
5 6
7
8
B C D
SW2000034
M M
M
2,2
1,8m
15,1m

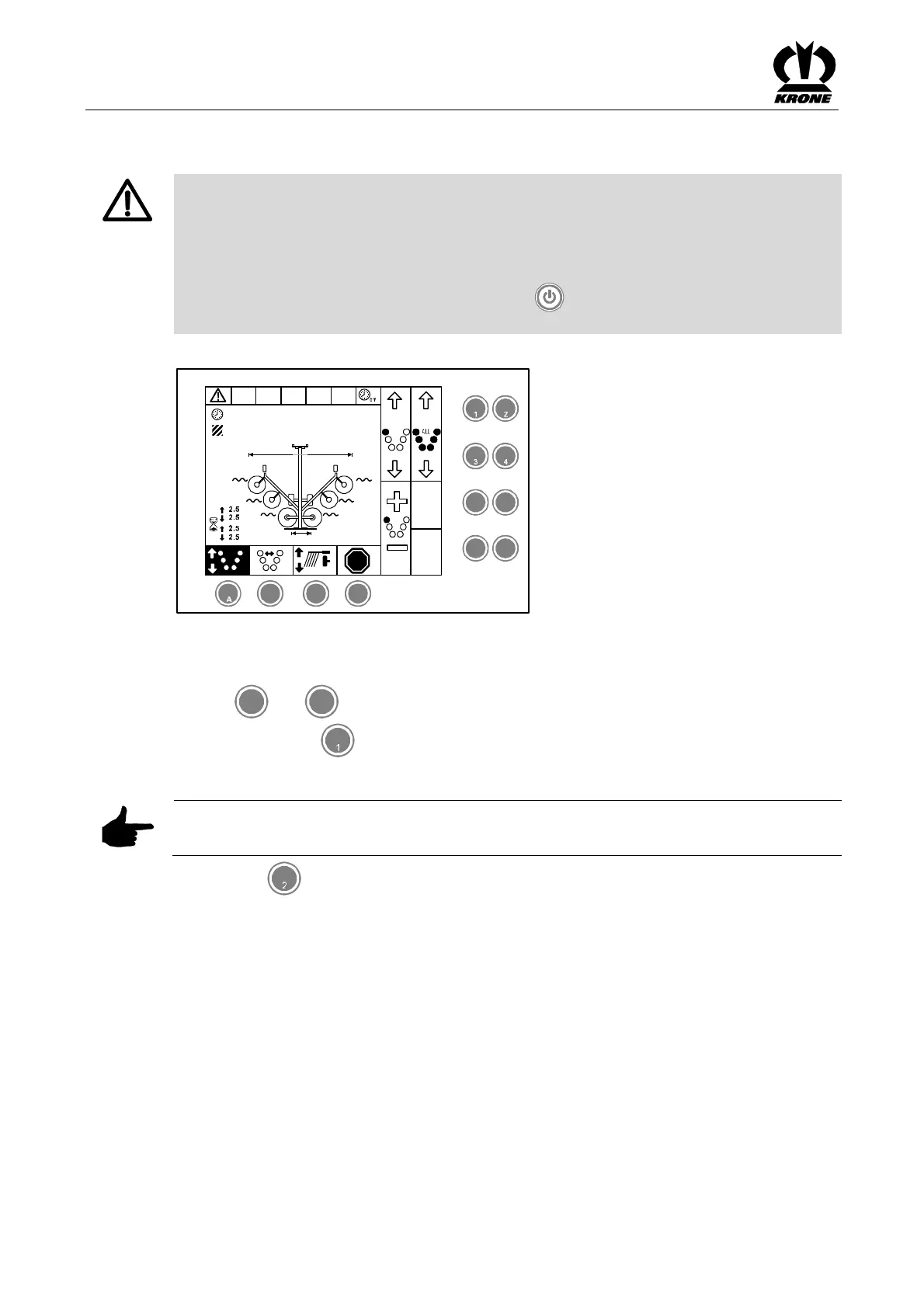

Fig. 28
Pos: 16.8.22 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /SW 2000/Gru ndbild 1 Kreisel aushebung/Anhe ben einzelner Kreis el in die V orgewendestell ung SW 2000 @ 2 3\mod_12402 29206615_78.d oc @ 236576 @ 4 @ 1
6.7.4.1 Raising Individual Rotors to Headland Position
Use the
5
and
7
keys to select the rotors to be raised
Briefly press the key to raise the selected rotor.
Pos: 16.8.23 /B A/Info-Center/Sch wader/Bedi eneinheit - Komfort /SW 2000/Gru ndbild 1 Kreisel aushebung/Anhe ben aller Kreis eli n die Vorg ewendestellung S W2 000 @ 23\ mod_12402293 30880_78.doc @2 36601 @ 4 @ 1
6.7.4.2 Raising All Rotors to Headland Position (Automatic Mode)
Note
The function will not be performed if an activated rotor is in transport position.
Pressing the key raises all rotors to the headland position. The front rotors are raised first.
After a time delay, the middle rotors are raised. After another time delay, the rear rotors are
raised (see also the chapter "Adjusting the Automatic Time <Raise Rotors>").
