13.3 Adjustable throttles
Pos: 38.2 /BA/Eins tellungen/Dross el/Drosseln ein stellen allgemei nerT ext SW 2 000 @ 61\mod _129845265330 4_78.doc @ 5 66602 @ @ 1
You can use the adjustable throttles to adjust the lowering speeds of the rotors on the machine.
The throttles are pre-adjusted in the factory.
To allow for different types of tractors and oil pressures, the throttles may need to be
readjusted.
Pos: 38.3 /BA/Eins tellungen/Dross el/Hinweis Ei nstellung an d en Drosseln (Aus wirkung_1) @ 6 1\mod_129845 5545083_78.d oc @ 566766 @ @ 1
Note
Even the tiniest adjustments to the stud bolt or throttle stud bolts can cause a major change in
the lowering speed.
Pos: 38.4 /BA/Eins tellungen/Dross el/Hinweis I mbusschraube kontern @ 61\mo d_129845544 8520_78.doc @ 56 6739 @ @ 1
Note
After an adjustment has been made to the throttles, lock the Allen head screw. Then test the
functionality.
Pos: 38.5 /BA/Eins tellungen/Dross el/Drossenl Bild SW 2000 @ 61\mod_129845 4484843_78.doc @ 566684 @ @ 1
SW2000071
1
1
1
1
1
1
c
d

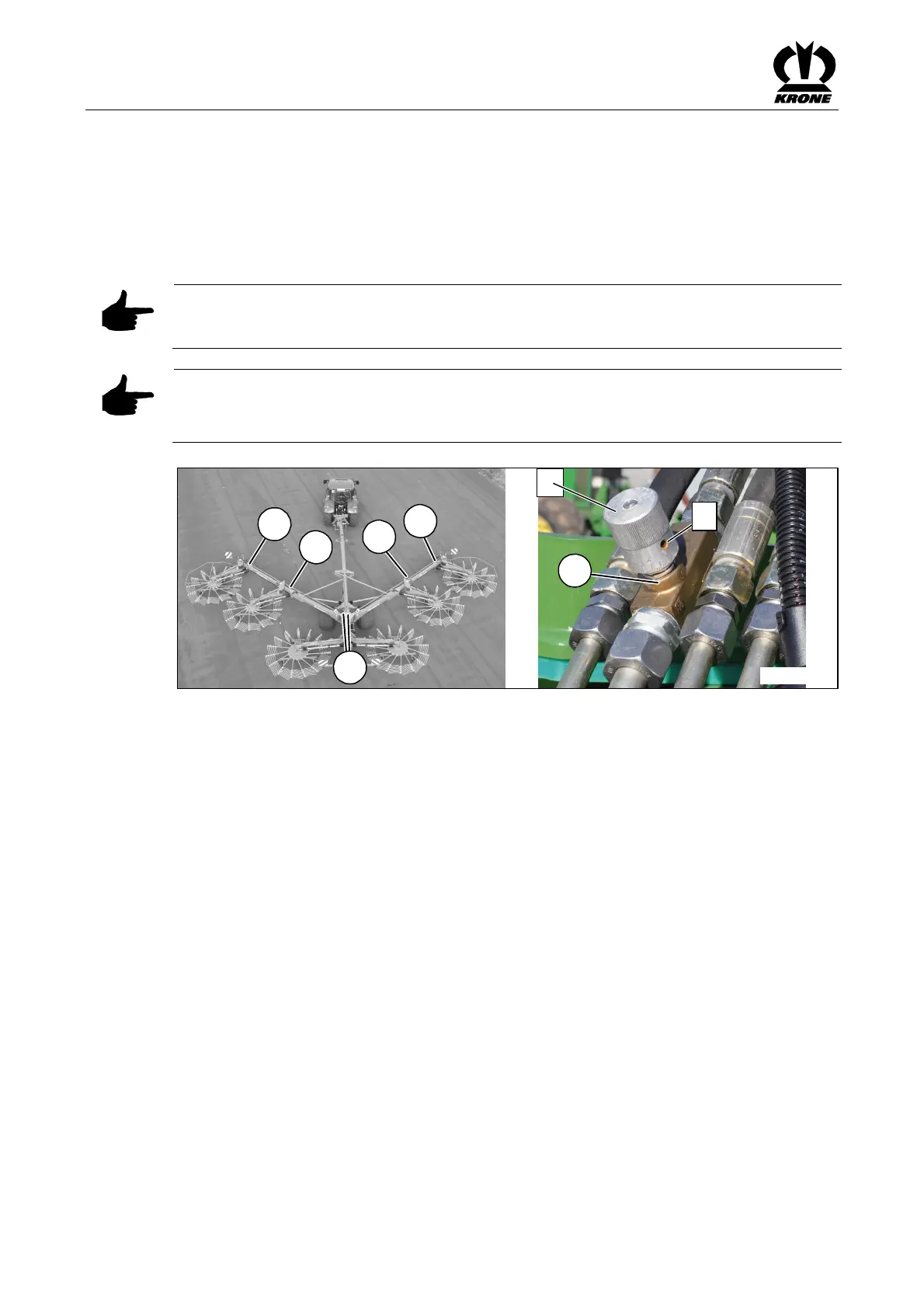

Fig. 147
Pos: 38.6 /BA/Eins tellungen/Dross el/Drossel (1) Senkgeschwin digkeit @ 61\ mod_129845479330 8_78.doc @ 5 66711 @ @ 1
Throttle (1)
Adjusting the lowering speed of the rotors
• Loosen hexagonal socket head screw (c).
• Screw stud screw (d) in or out (unscrewing it increases the flow of oil and thus increases
the speed at which the rotor is lowered)
