KRONE ISOBUS-Terminal CCI 100

164

Pos: 22.5.74 /B A/Info-Center/CC-I SOBUS-Termi nal/CCI-Ladew agen/Hauptme nüs/Hauptmenü 9I SO-Einstell ungen/Hauptmen ü 9 ISO-Einstellu ngen @ 83\ mod_13171259694 82_78.doc @ 7 27355 @ 2 @ 1

8.14 Main menu 9 "ISO settings info"

CC000484

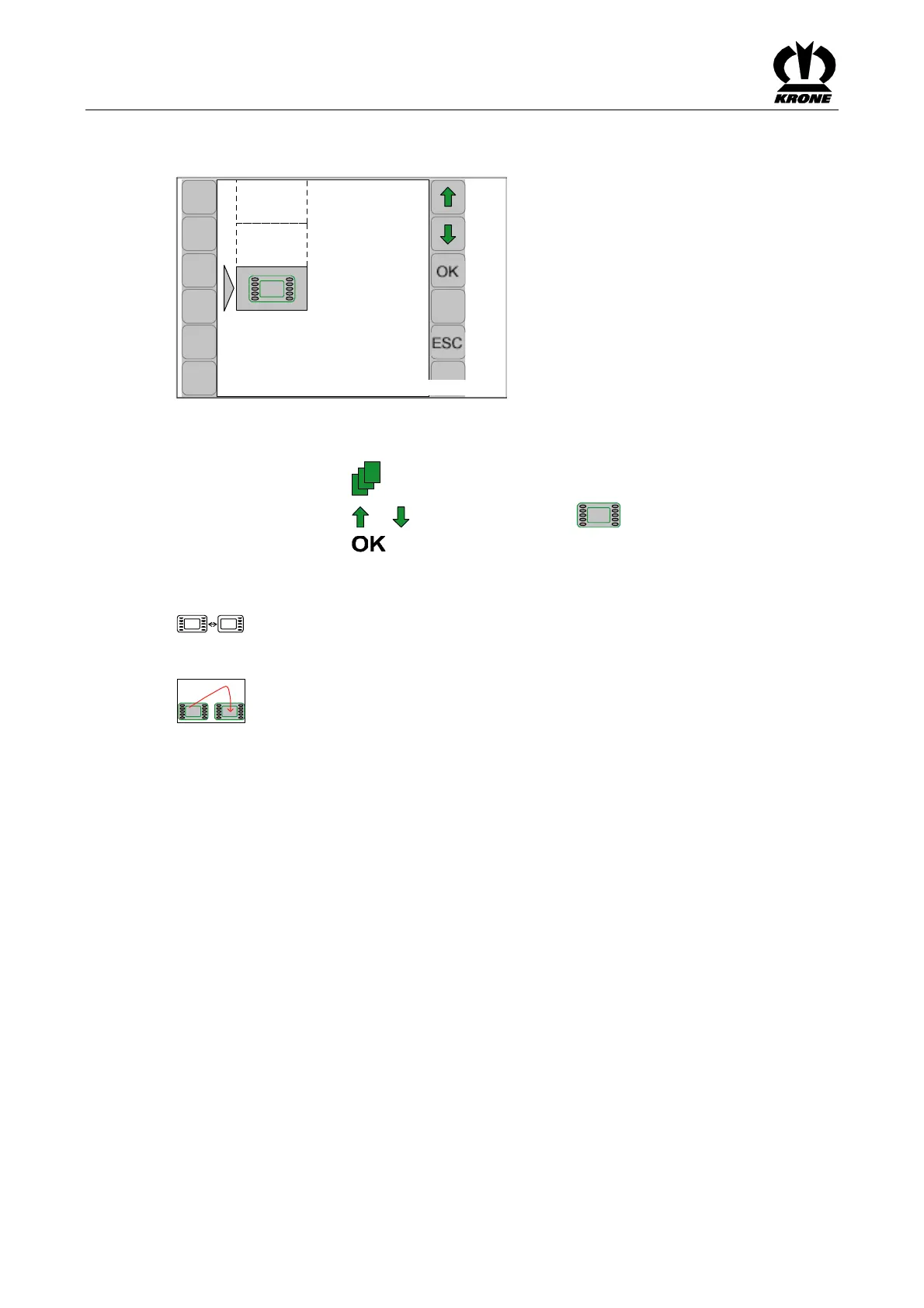

Fig. 116

Calling the main menu

• Press function key to access the menu level via the basic screen

• Press function key or to select main menu 9 ( ). The icon is shown inverted

• Press function key

The display shows menu level 9 "ISO settings". Menu level 9 "SO settings" optionally displays

the following menus:

= Menu 9-1

"Softkeys ISO terminal" (appears only on terminals with less

than 10 keys"

= Menu 9-2

Switching between terminals" (appears only when multiple ISO

terminals are connected)

Pos: 22.5.75 /B A/-----Seitenum bruch------ @ 0\m od_119617531 1226_0.doc @ 4 165 @ @ 1
