KRONE operation terminal Gamma
72
Pos: 16.24.29.1 /Ü berschriften/Ü berschriften 2/F-J/H auptmenü 3 H andbedienu ng @ 55\mod_1 292224852765 _78.doc @ 51 7684 @ 2 @ 1

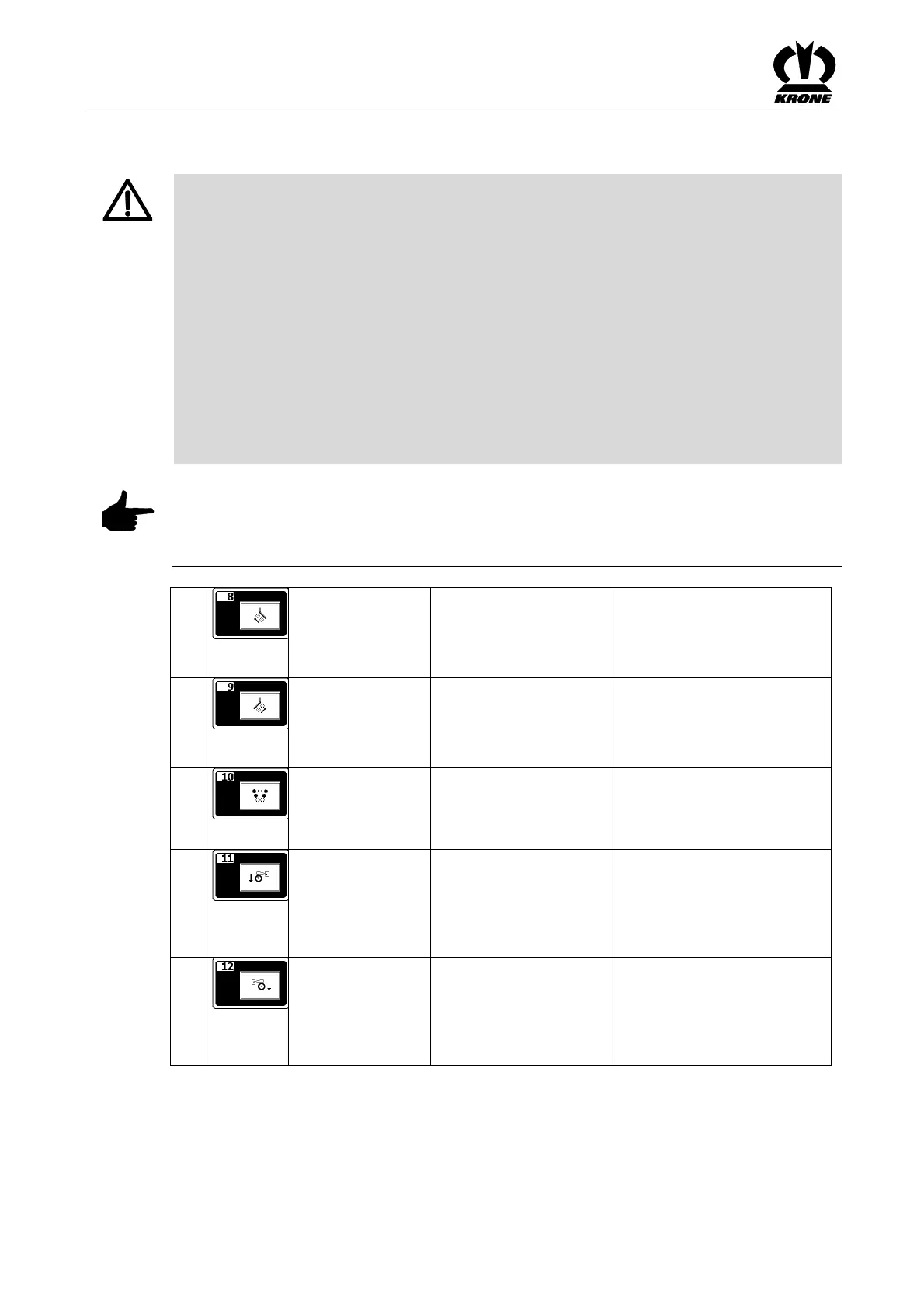

6.13 Main menu 3 „Manual operation“
Pos: 16.24.29.2 / BA/Info-Center/Sc hwader/Be dieneinheit - Ko mfort/SW 2000/Ha uptmenüs/Ha uptmenü 3 Wart ung / Handbetri eb/Warnung H andbetrieb @ 2 3\mod_1240323 600491_78.doc @ 238645 @ @ 1
WARNING! – Manual operation!
Effect: Serious damage to the machine
Manual operation takes place while the tractor motor is running!
• Functions operated are immediately executed (even in the transport position). For this
reason, manual operation should only be carried out by persons who are familiar with the
machine
• Switch off the PTO
• Remove cardan shaft from tractor
• Maintain sufficient distance from moving parts (rotors, outriggers, etc.)
• In an emergency, switch off the hydraulic system immediately
• If necessary, switch off the machine immediately, shut off the engine and remove the
ignition key
• Manual mode must only be performed from a safe position outside the area that is
affected by machine parts activated by the actuators.
Pos: 16.24.29.3 / BA/Info-Center/Sc hwader/Be dieneinheit - Ko mfort/SW 2000/Ha uptmenüs/Ha uptmenü 3 Wart ung / Handbetri eb/Hinweis a ufF ehlermeldung bei der Handbe dienung @ 61\m od_1298959586 082_78.doc @ 568555 @ @ 1
Note
During manual operation, sensor queries are executed in the background to avoid damage to
the machine. Functions operated are aborted as soon as the sensors report critical situations. A
message appears in the display.
Pos: 16.24.29.4 / BA/Info-Center/Sc hwader/Be dieneinheit - Ko mfort/SW 2000/Ha uptmenüs/Alar mmeldungen/L ogische Alarm e SW 2000 8 bis 1 2@ 61\mod_12 98905307201_ 78.doc @ 568 409 @ @ 1
8
Position of left
parallel adjustment
incorrect
Sensors incorrectly
adjusted, linkage is
jammed, incorrectly
connected hydraulic
system
Check the sensors'
adjustment, move parallel
adjustment into position by
means of manual operation
9
Position of right
parallel adjustment
incorrect
Sensors incorrectly
adjusted, linkage is
jammed, incorrectly
connected hydraulic
system
Check the sensors'
adjustment, move parallel
adjustment into position by
means of manual operation
10
Front working
width not large
enough for parallel
adjustment
Linkage is warped,
sensor incorrectly
adjusted, working width
not large enough
Check sensors' adjustment,
enlarge working width
11
Left supporting
wheel not fully
extended
Sensors incorrectly
adjusted, linkage
jammed, incorrectly
connected hydraulic
system, supporting
wheel not extended
Check sensors' adjustment,
lower supporting wheel in
manual mode
12
Right supporting
wheel not fully
extended
Sensors incorrectly
adjusted, linkage
jammed, incorrectly
connected hydraulic
system, supporting
wheel not extended
Check sensors' adjustment,
lower supporting wheel in
manual mode
