Settings
202
Pos: 32 /Überschri ften/Überschrift en 1/A-E/Einst ellungen @ 0\ mod_119986878 3862_78.doc @ 3 6141 @ 1 @ 1
13 Settings
Pos: 33 /BA/Sic herheit/Gefahrenhi nweise/Einstell arbeiten Gefahr mit Bedienei nheit @ 0\mod_ 1199869097987 _78.doc @ 36160 @ @ 1
Danger! - Unexpected movements of the machine
Effect: Danger to life, injuries or damage to the machine.
Setting tasks must only be performed when the drive is switched off and the engine is at a
standstill!
Bring the machine to a complete stop.
Switch off the engine, remove the ignition key and turn off the electrical system on the
control box
Secure the machine and tractor against rolling.
Pos: 34.1 /Übersc hriften/Übersc hriften 2/K-O/Kr eiselfahrwerk ein stellen @ 2\ mod_1202882031 680_78.doc @ 6 2105 @ 2 @ 1
13.1 To adjust the rotor running gear
Pos: 34.2 /BA/Sich erheit/Gefahr enhinweise/Schw ader/Unbea bsichtigtes senke nd es Kreisels @ 6\mod_121480 4530855_78.d oc @ 95166 @ @ 1
Caution! - Inadvertent lowering of the rotor
Effect: Risk of injury
Do not walk under the raised rotor.
Pos: 34.3 /BA/Eins tellungen/Sch wader/Kreiselfahr werk/Hinweis s chweres Futt er- F ahrwer kinn en möglichst niedrig einstelle n@ 4\mod_1213 084838226_78. doc @ 86157 @ @ 1
Note
If the forage is heavy, adjust the inner running gear as low as possible!
Pos: 34.4 /BA/Eins tellungen/Sch wader/Kreiselfahr werk/Kreiselfa hrwerk Bild 20 00 @ 61\mod_1 298451519380 _78.doc @ 56 6521 @ @ 1

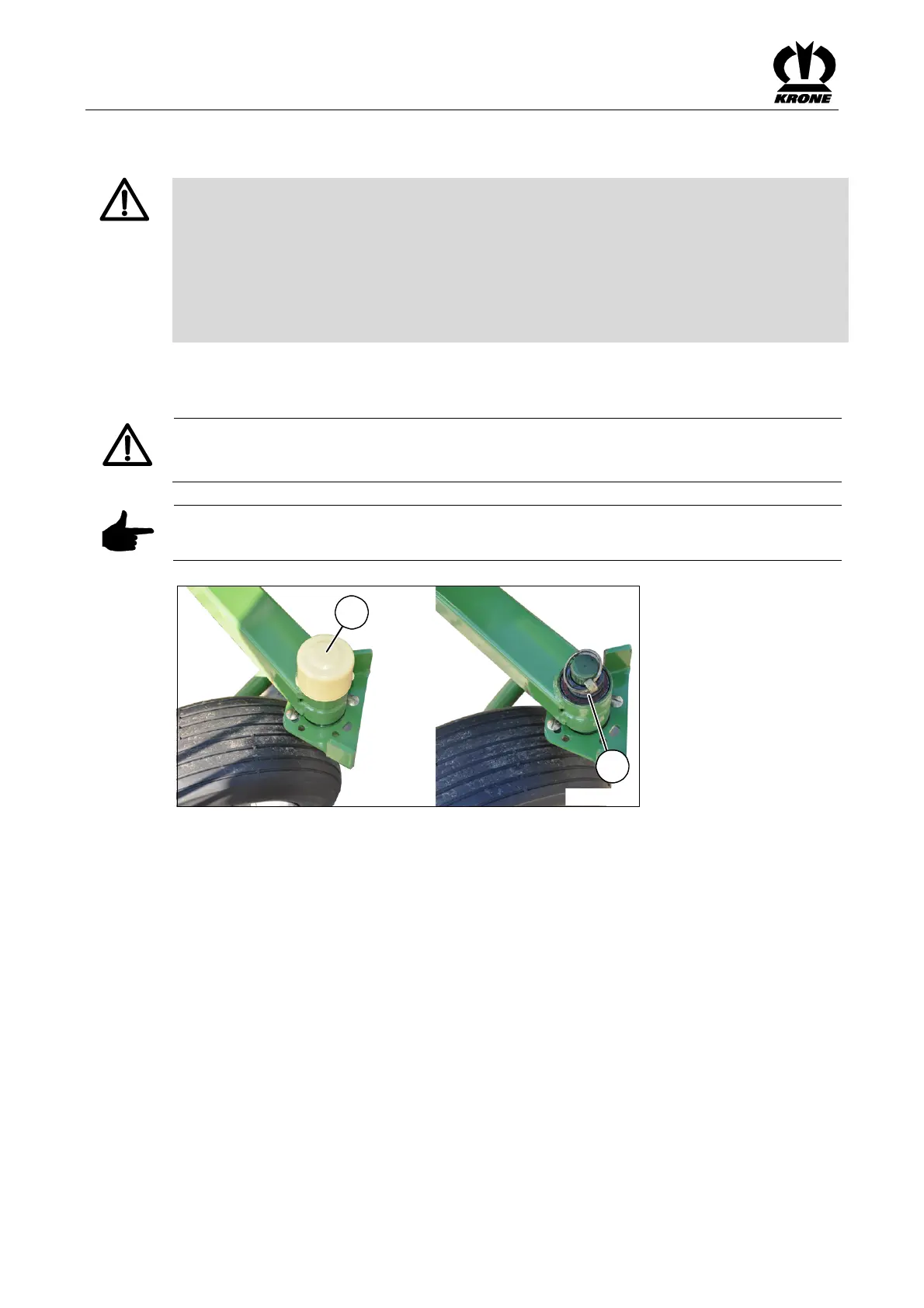

SW2000070
1
2
Fig. 145
Pos: 34.5 /BA/Eins tellungen/Sch wader/Kreiselfahr werk/Kreiselfa hrwerk Text allgemein SW200 0 @ 61\mod_1 298450981424_ 78.doc @ 566494 @ @ 1
Under certain application conditions it may be necessary to lower the inner running gear to
ensure clean raking work. To do this, the washers on the running wheel (2) can be installed
either below or above the running wheel bearing.
Pos: 34.6 /BA/Eins tellungen/Sch wader/Kreiselfahr werk/Kreiselfa hrwerk Text Einst ellung SW 20 00 @ 61\mod _1298451796519 _78.doc @ 56 6575 @ @ 1
The factory setting is:
Inner wheel: one washer below the bearing
Outer wheel: two washers below the bearing
Changing the setting:
To do this, raise the rotor arms until the changeover work can be performed.
Remove the protective cap (1)
Remove the rear guide wheels and reinstall them in the desired position
Put the protective cap (1) on
